Rear Seat Back Cushion Trim Panel Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

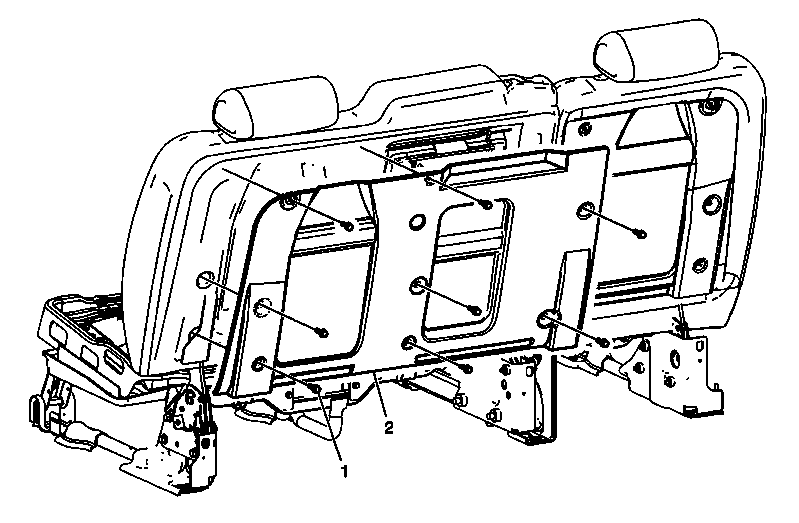

Fig 1: Rear Seat Back Trim Panel And Bolts
GM1708126Courtesy of GENERAL MOTORS CORP.
Rear Seat Back Cushion Trim Panel Replacement

Callout Component Name
1 Rear Seat Back Trim Panel Bolt (Qty: 8)
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (25 lb in)
2 Rear Seat Back Cushion Trim Panel
