Liftgate Door Sill Plate Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

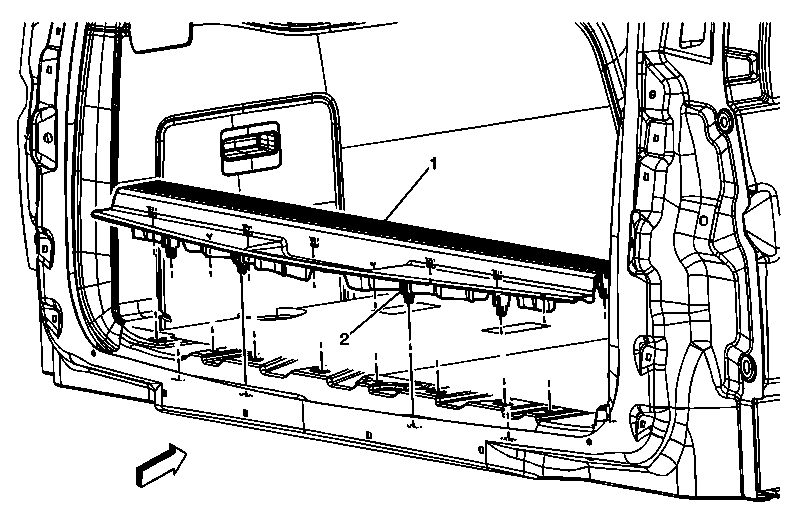

Fig 1: Rear Liftgate Door Sill Plate Assembly And Retainers
GM1658643Courtesy of GENERAL MOTORS CORP.
Liftgate Door Sill Plate Replacement

Callout Component Name
1 Rear Floor Rear Trim Plate Assembly
  1. Reposition the liftgate opening weatherstrip out of the way.
  2. Pull upward to disengage retainers.
2 Rear Floor Rear Trim Plate Retainer (Qty: 10)
