Front Side Door Opening Frame Garnish Molding Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

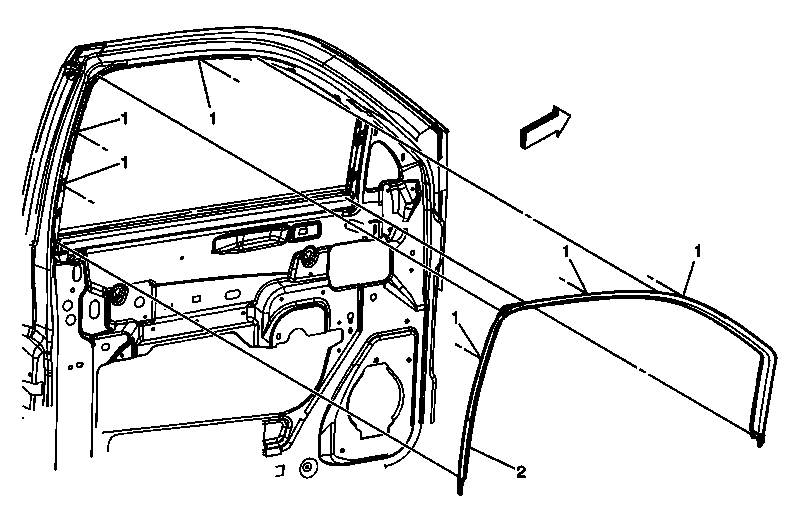

Fig 1: Front Side Door Window Garnish Molding And Retainers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Window Garnish Molding Retainer (Qty: 6)
2	Front Side Door Window Garnish Molding Install the 3 clips in the corners over the flange. Install the tab at each end of the garnish molding between the flange and reveal molding. Install the remaining 3 clips around the window flange.
