Endgate Torque Rod Replacement
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Endgate Torque Rod Replacement

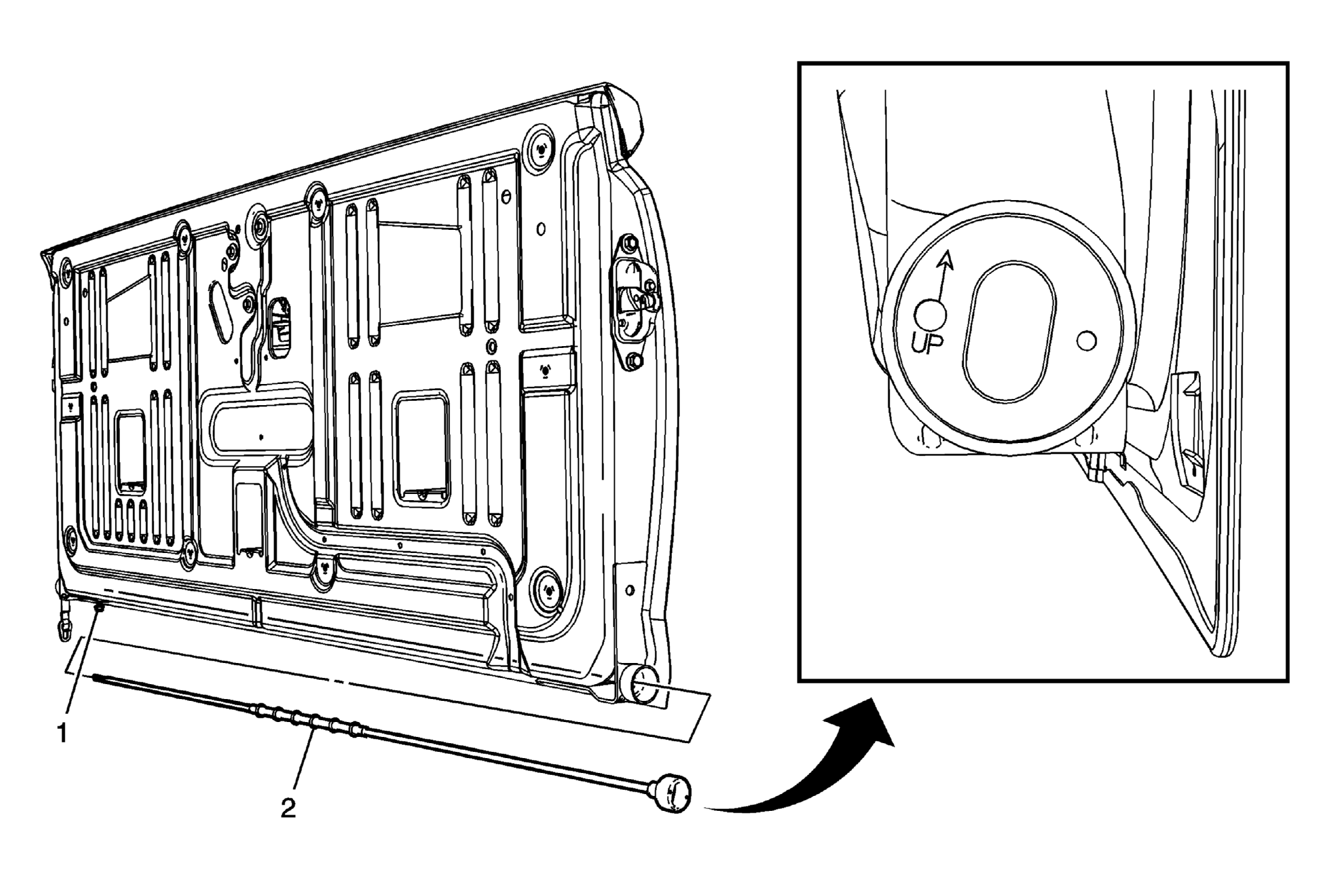

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the endgate. Refer to Endgate Replacement (Avalanche/Escalade EXT) . |
|
| 1 | Torque Rod Retainer Bolt
CAUTION:
Refer to Fastener Caution . TIP: Loosen bolt only, DO NOT remove. Tighten 12 N.m (106 lb in) |
| 2 | Torque Rod Assembly |
