Cargo Box Cover Latch Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

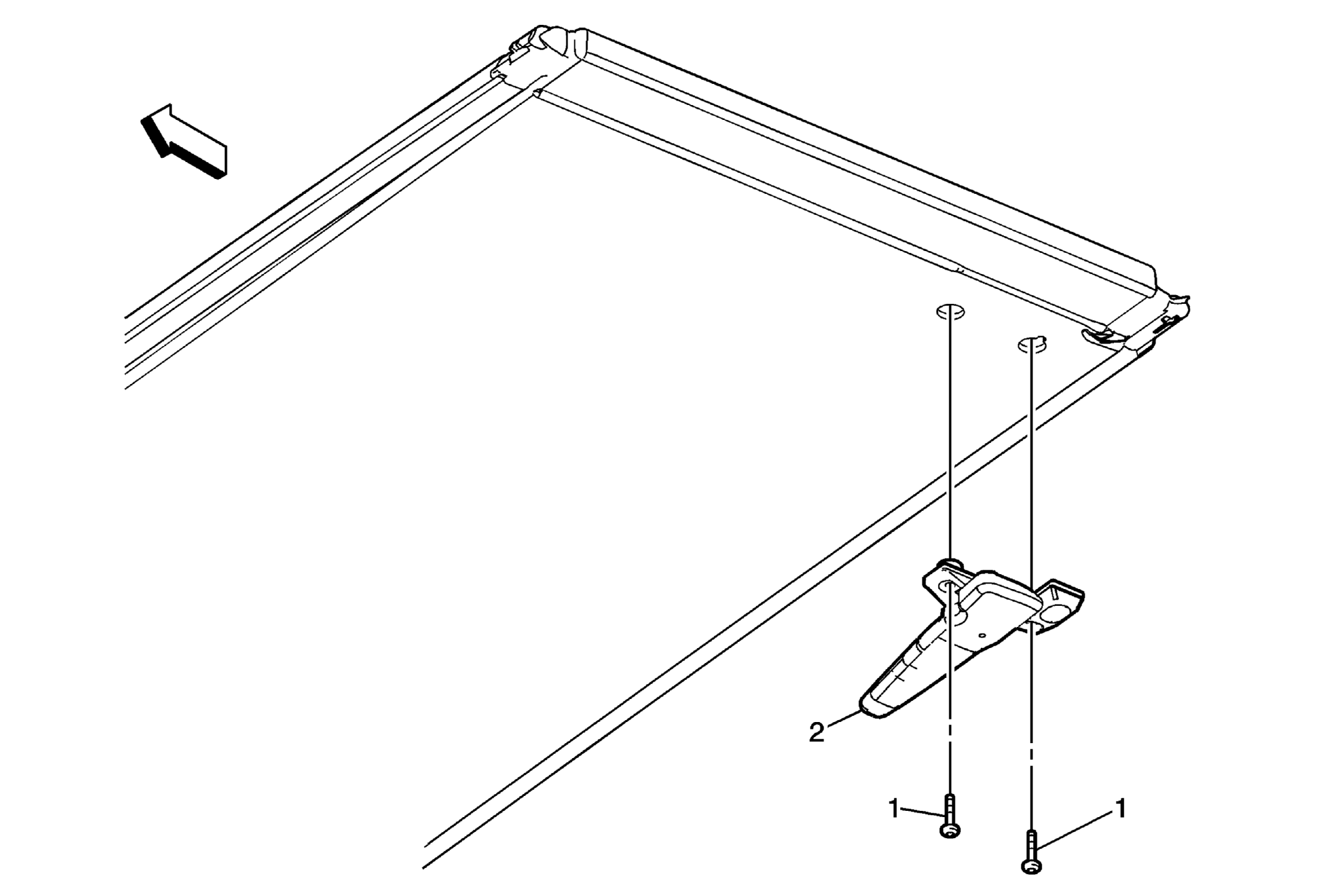

Fig 1: Cargo Box Cover Latch
GM1837400Courtesy of GENERAL MOTORS CORP.
Cargo Box Cover Latch Replacement

Callout Component Name
Preliminary Procedure
Remove the cargo box cover. Refer to Cargo Box Front Cover, Center Cover, and Rear Cover Replacement .
1 Cargo Box Cover Latch Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Cargo Box Cover Latch
