Low Beam and Daytime Running Lamps (Z75 without T4Q)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

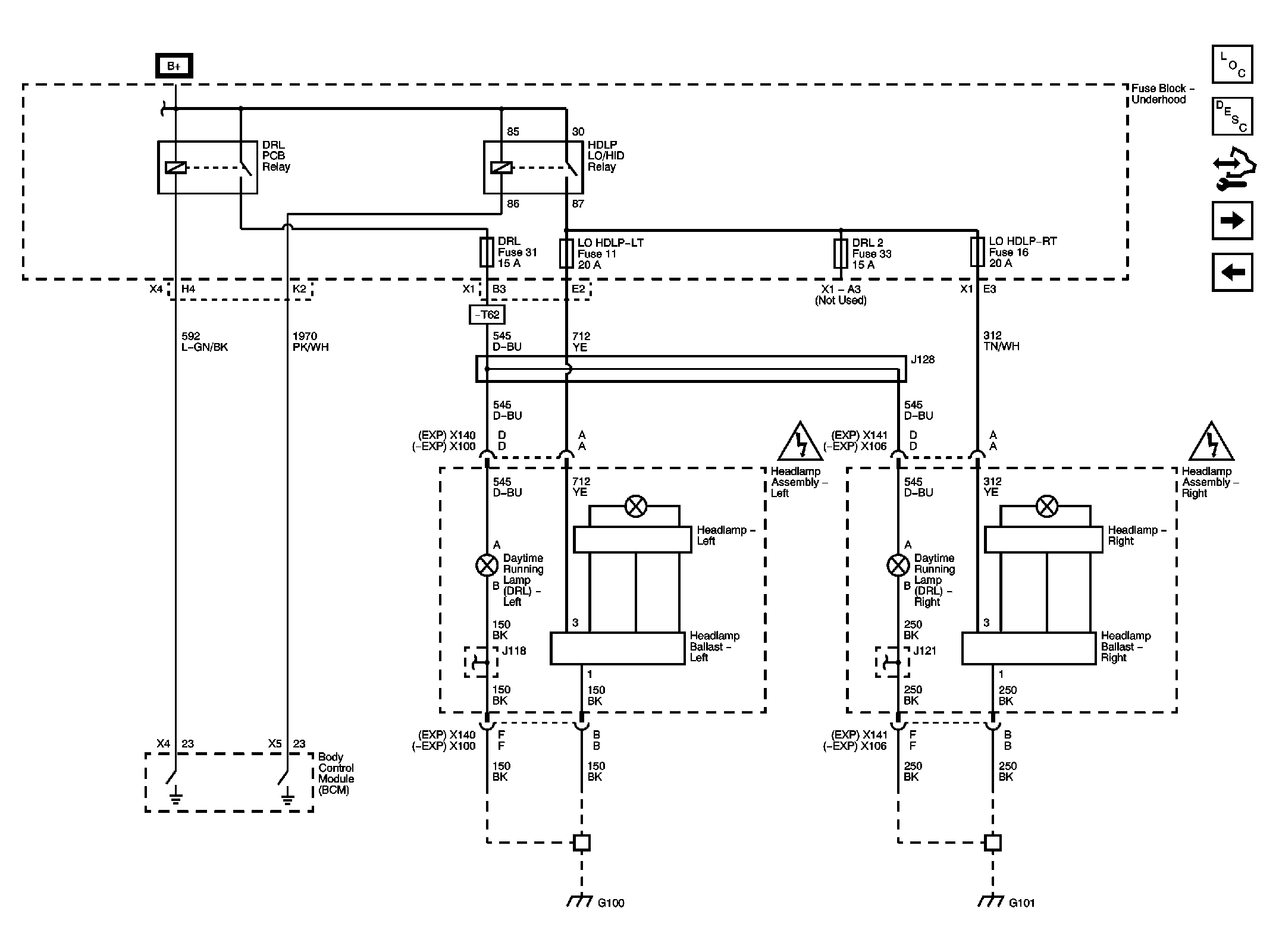

Fig 1: Low Beam and Daytime Running Lamps (Z75 without T4Q) Wiring Schematic
GM2398810Courtesy of GENERAL MOTORS CORP.
