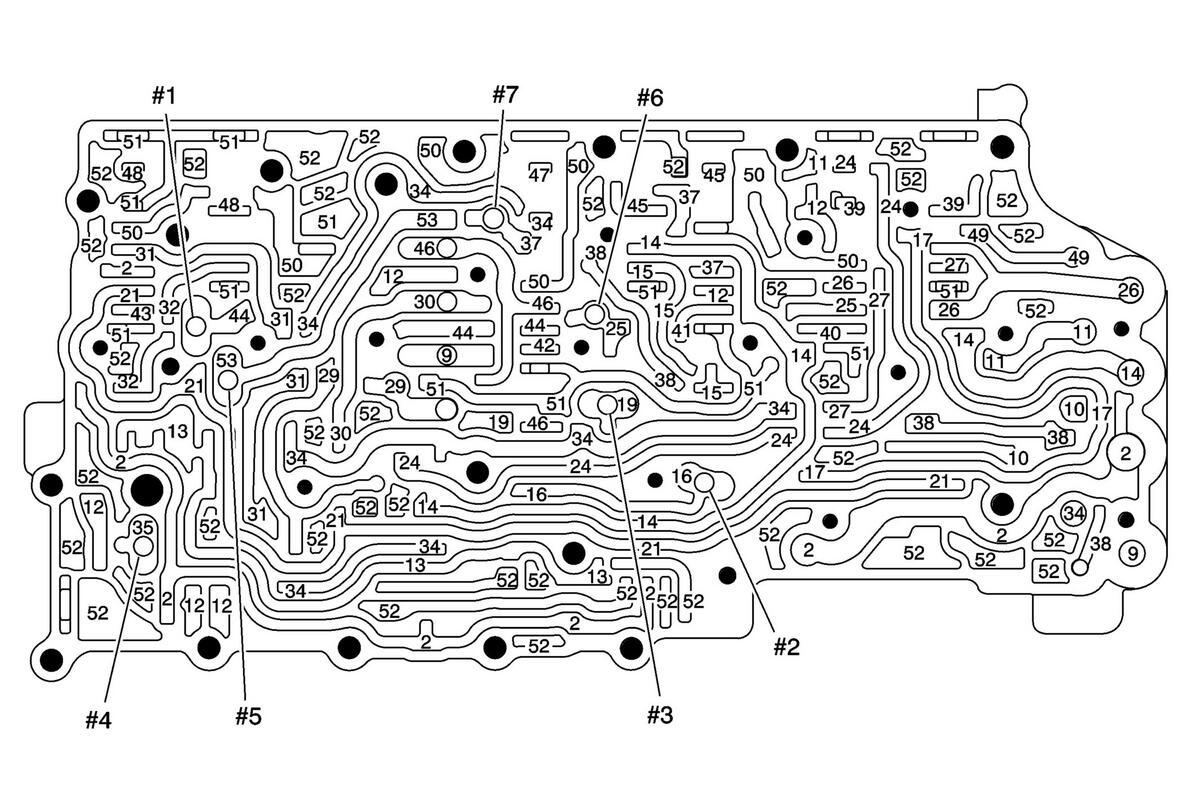

Control Valve Upper Body Assembly - Bottom Channel Plate Side
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 2 | Line |
| 9 | Center Lube |
| 10 | Regulator Apply |
| 11 | Compensator Feed |
| 12 | Actuator Feed Limit |
| 13 | Reverse |
| 14 | 3-5 Reverse Clutch |
| 15 | 3-5 Reverse Clutch Feedback |
| 16 | CSV2 Enable |
| 17 | Solenoid 1 |
| 19 | CSV3 Enable |
| 21 | Drive 1-6 |
| 24 | 1-2-3-4 Clutch DFLT |
| 25 | 1-2-3-4 Clutch Feed |
| 26 | 1-2-3-4 Clutch |
| 27 | 1-2-3-4 Clutch Feedback |
| 29 | CBR1 |
| 30 | CBR |
| 31 | CBR1/4-5-6 Clutch Feed |
| 32 | CBR1 Feedback |
| 34 | 4-5-6 Clutch |
| 35 | CSV2 Latch |
| 37 | 3-5 Reverse Feed |
| 38 | PCS TCC |
| 39 | PCS 1-2-3-4 Clutch |
| 40 | PS4 |
| 41 | PS1 |
| 42 | PS3 |
| 43 | PS5 |
| 44 | 2-6 Clutch/1-2-3-4CL Feed |
| 45 | PCS 3-5 Rev Clutch |
| 46 | 2-6 Clutch |
| 47 | PCS 2-6 Clutch |
| 48 | PCS CBR1/4-5-6 Clutch |
| 49 | PCS Line |
| 50 | Exhaust BF |
| 51 | Exhaust |
| 52 | Empty |
| 53 | 3-5 Rear Feed |
