Passenger Compartment/Roof Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Components Above Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield
2	Cellular and Navigation Antenna (UE1) or Cellular, Navigation, and Digital Radio Antenna (UE1 with U2K)

Fig 2: View Of Top Front Of Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch (CF5)
2	Courtesy/Reading Lamps - 2nd Row
3	Liftgate Control Switch - Interior (E61)
4	Folding Seat Switch - Front (ARS)
5	Garage Door Opener (GDO)(UG1)
6	OnStar Button Assembly (UE1)
7	Inside Rearview Mirror (ISRVM)
8	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
9	Dome/Reading Lamps
10	Inside Air Temperature Sensor - Front (CJ2)

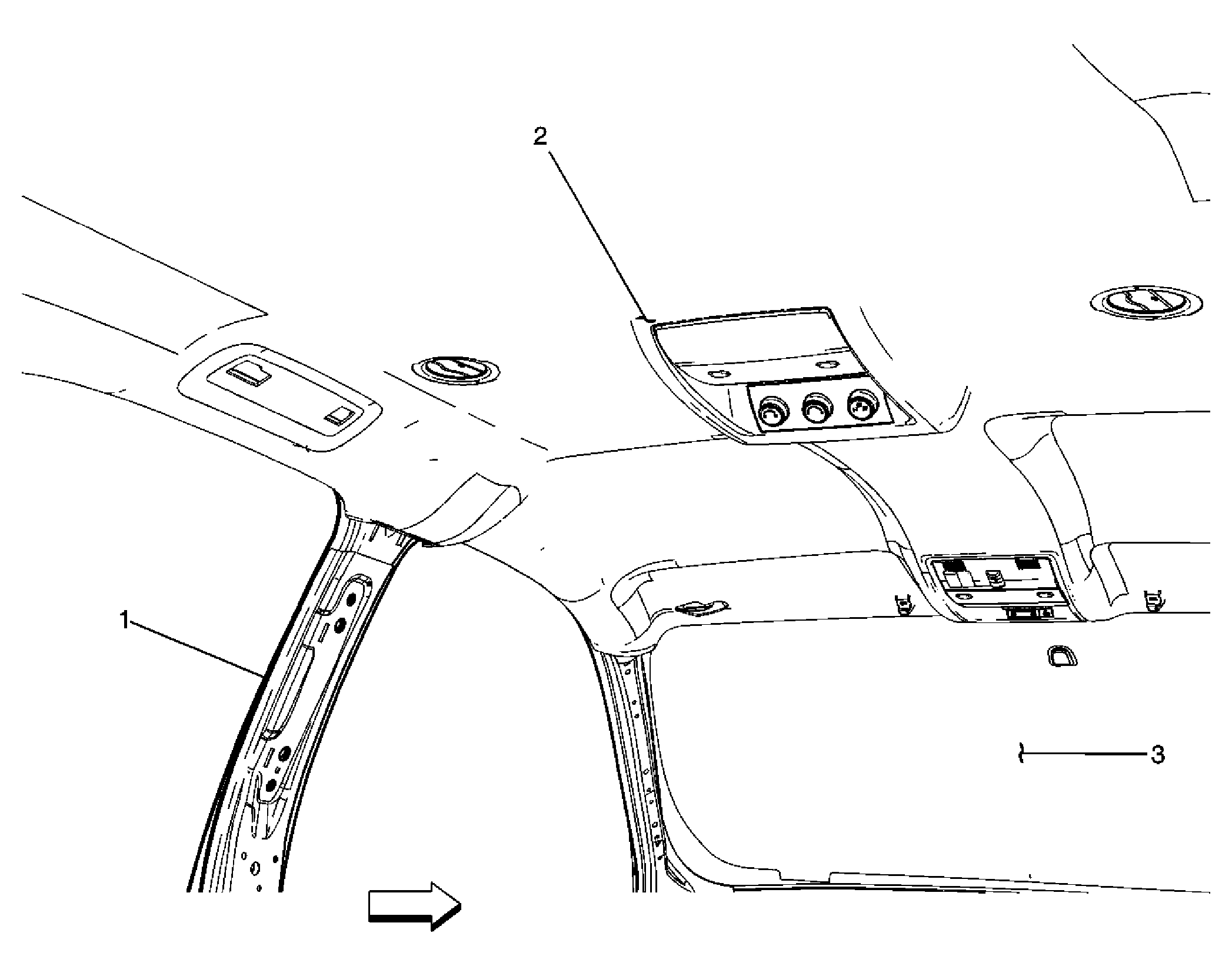

Fig 3: View Of Middle Of Headliner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left B-Pillar
2	HVAC Control Module - Auxiliary (CJ3 with C69)
3	Windshield

Fig 4: View Above Headliner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Control Module (CF5)
2	Courtesy/Reading Lamps - 2nd Row
3	Courtesy/Reading Lamps - 3rd Row (E52)
4	Inside Air Temperature Sensor - Rear (CJ2 with C69)
5	Headliner
6	Inside Air Temperature Sensor - Front (CJ2)
7	Inside Rearview Mirror (ISRVM)
8	Windshield Outside Moisture Sensor (CE1)

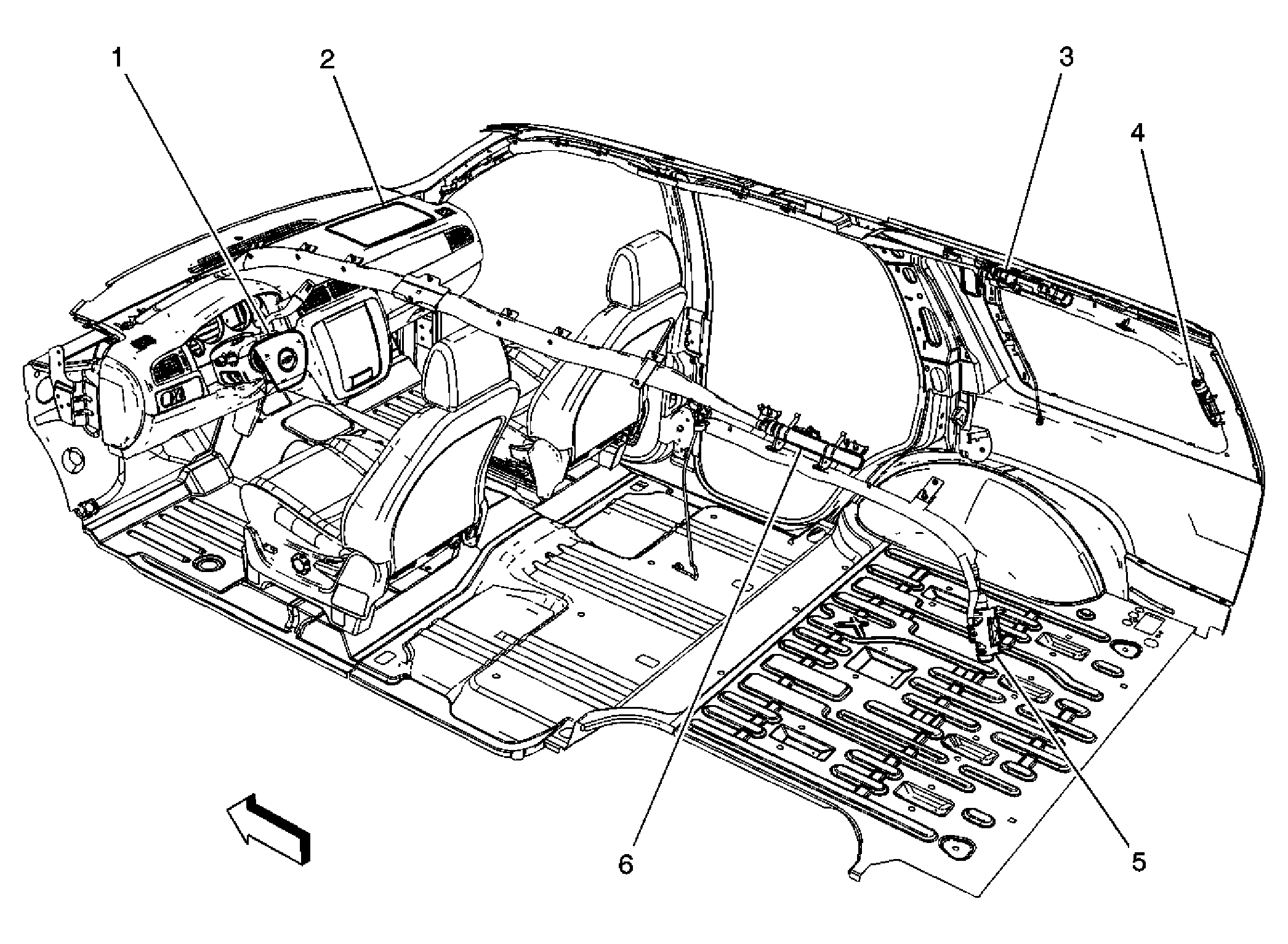

Fig 5: Locating Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Inflatable Restraint I/P Module
3	Inflatable Restraint Roof Rail Module - Right Front (ASF)
4	Inflatable Restraint Roof Rail Module - Right Rear (E52 with ASF)
5	Inflatable Restraint Roof Rail Module - Left Rear (E52 with ASF)
6	Inflatable Restraint Roof Rail Module - Left Front (ASF)

Fig 6: View Of Driver Seat Components - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Recline Motor - Driver (AN3)
2	Seat Lumbar Motor - Driver (AN3)
3	Seat Lumbar Switch - Driver (AN3)
4	Seat Adjuster Switch - Driver
5	Memory Seat Module (MSM)(AN3)
6	Inflatable Restraint Seat Position Sensor - Driver
7	Seat Adjuster Motor Assembly - Driver
8	Seat Belt Buckle - Driver

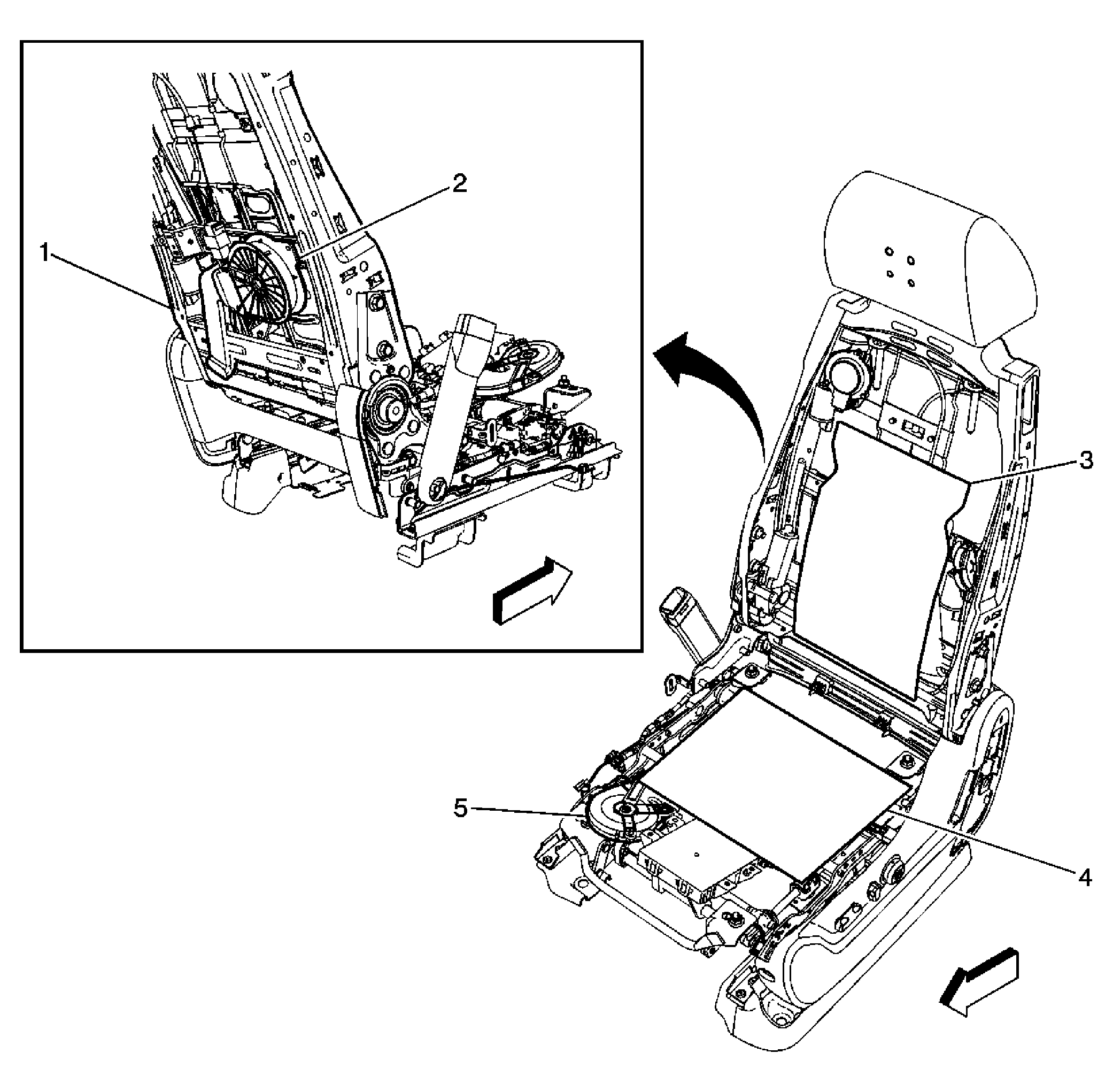

Fig 7: View Of Driver Seat Components - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Frame
2	Seat Back Ventilation Heating and Cooling Module - Driver (KB6)
3	Heated Seat Element - Driver Back (AN3 without KB6)
4	Heated Seat Element - Driver Cushion (AN3 without KB6)
5	Seat Cushion Ventilation Heating and Cooling Module - Driver (KB6)

Fig 8: View Of Passenger Seat Components - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Frame
2	Seat Lumbar Motor - Passenger (AN3)
3	Seat Adjuster Switch - Passenger
4	Seat Lumbar Switch - Passenger (AN3)
5	Seat Belt Buckle - Passenger
6	Inflatable Restraint Passenger Presence System (PPS) Module
7	Seat Adjuster Motor Assembly - Passenger (AG2)
8	Inflatable Restraint Passenger Presence System (PPS) Sensor
9	Seat Recline Motor - Passenger (AN3)

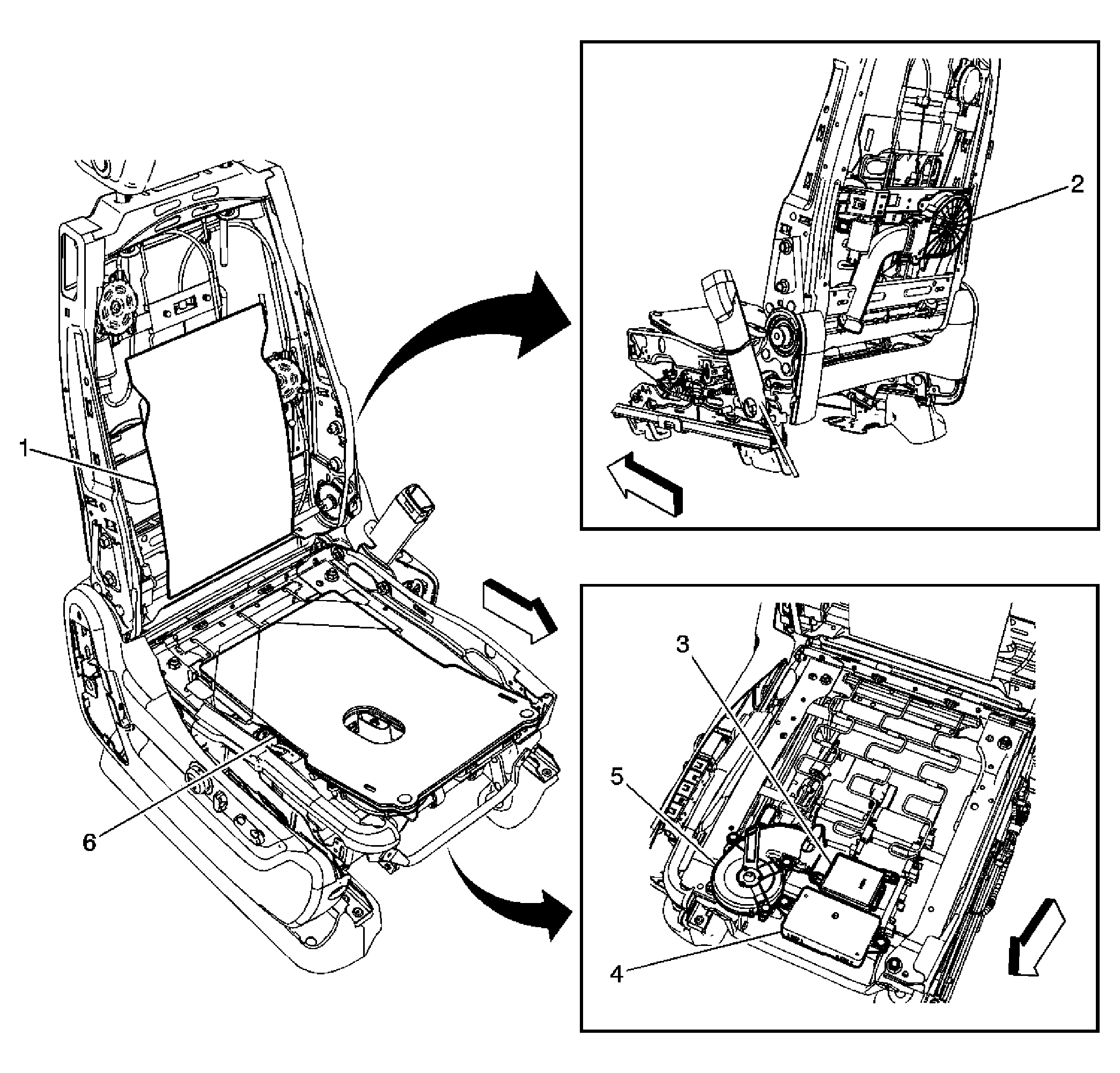

Fig 9: View Of Passenger Seat Components - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Passenger Back (AN3 without KB6)
2	Seat Back Ventilation Heating and Cooling Module - Passenger (KB6)
3	Inflatable Restraint Passenger Presence System (PPS) Module
4	Seat Climate Control Module (KB6)
5	Seat Cushion Ventilation Heating and Cooling Module - Passenger (KB6)
6	Heated Seat Element - Passenger Cushion (AN3 without KB6)

Fig 10: Under the Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Seat
2	Yaw Rate and Lateral Acceleration Sensor
3	Object Alarm Module (UD7)
4	Rearview Camera Image Display Module (UVC)

Fig 11: View Of Rear Seats

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Right Rear Cushion (KA6)
2	Heated Seat Element - Left Rear Cushion (KA6)
3	Heated Seat Control Module - Rear (KA6)

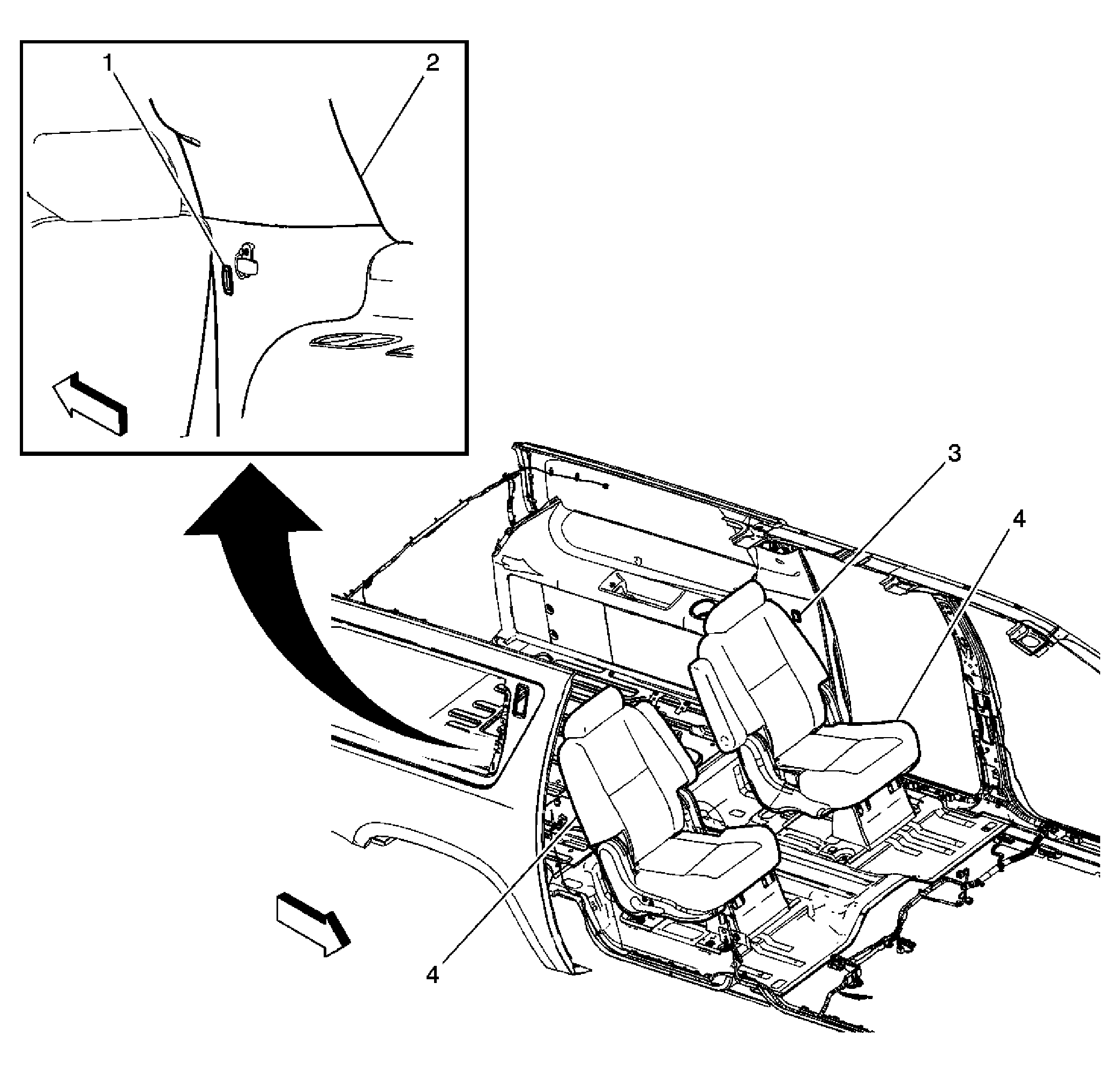

Fig 12: View Of Rear Seat Components (ARS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Seat Switch - Right Rear
2	Body Lock Pillar Garnish Molding
3	Folding Seat Switch - Left Rear
4	2nd Row Seats
