Luggage Compartment/Rear of Vehicle Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Rear of the Cargo Area Components E250 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Trim
2	Speaker - Left D-Pillar
3	Left Rear Compartment Trim

Fig 2: Left Rear of the Cargo Area Components E250 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR) (AP3 or AP8)
2	Left Rear Wheel Well
3	Rear Floor

Fig 3: View Of Remote Function Components Above Rear Window (Except E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Information Center Telltale Assembly (UD7)
3	Remote Control Door Lock Receiver (RCDLR) (AP3 or AP8)

Fig 4: Right Rear of the Cargo Area Components E250 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Rear Door Panel
2	Antenna Module (U84)/Radio Rear Window Antenna (U84)
3	Right Rear Window

Fig 5: Right Rear of the Cargo Area Components E250 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Information Center Telltale Assembly (UD7)
2	Speaker - Right D-Pillar
3	Accessory Power Outlet - Rear

Fig 6: Right Rear of the Cargo Area Components (Long Wheel Base with C69)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator - Auxiliary
2	Blower Motor - Auxiliary
3	X407
4	G402
5	Blower Motor Control Module - Auxiliary
6	Air Temperature Actuator - Auxiliary
7	Air Temperature Sensor - Lower Auxiliary (CJ2)

Fig 7: Right Rear of the Cargo Area Components (Short Wheel Base with C69)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X407
2	G402
3	Blower Motor - Auxiliary
4	Mode Actuator - Auxiliary
5	Air Temperature Actuator - Auxiliary
6	Blower Motor Control Module - Auxiliary
7	Air Temperature Sensor - Lower Auxiliary (CJ2)

Fig 8: Liftgate Components E250

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Window Latch Assembly
2	Liftgate Object Sensor - Left (E61)
3	Liftgate Handle Switch
4	Liftgate Latch Assembly
5	Rear Window Wiper Motor
6	Liftgate Close Switch (E61)
7	Liftgate Object Sensor - Right (E61)

Fig 9: Power Liftgate Components (E61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Liftgate Module
2	Liftgate Object Sensor - Right
3	Liftgate Latch Assembly
4	Liftgate Object Sensor - Left
5	Liftgate Motor Assembly

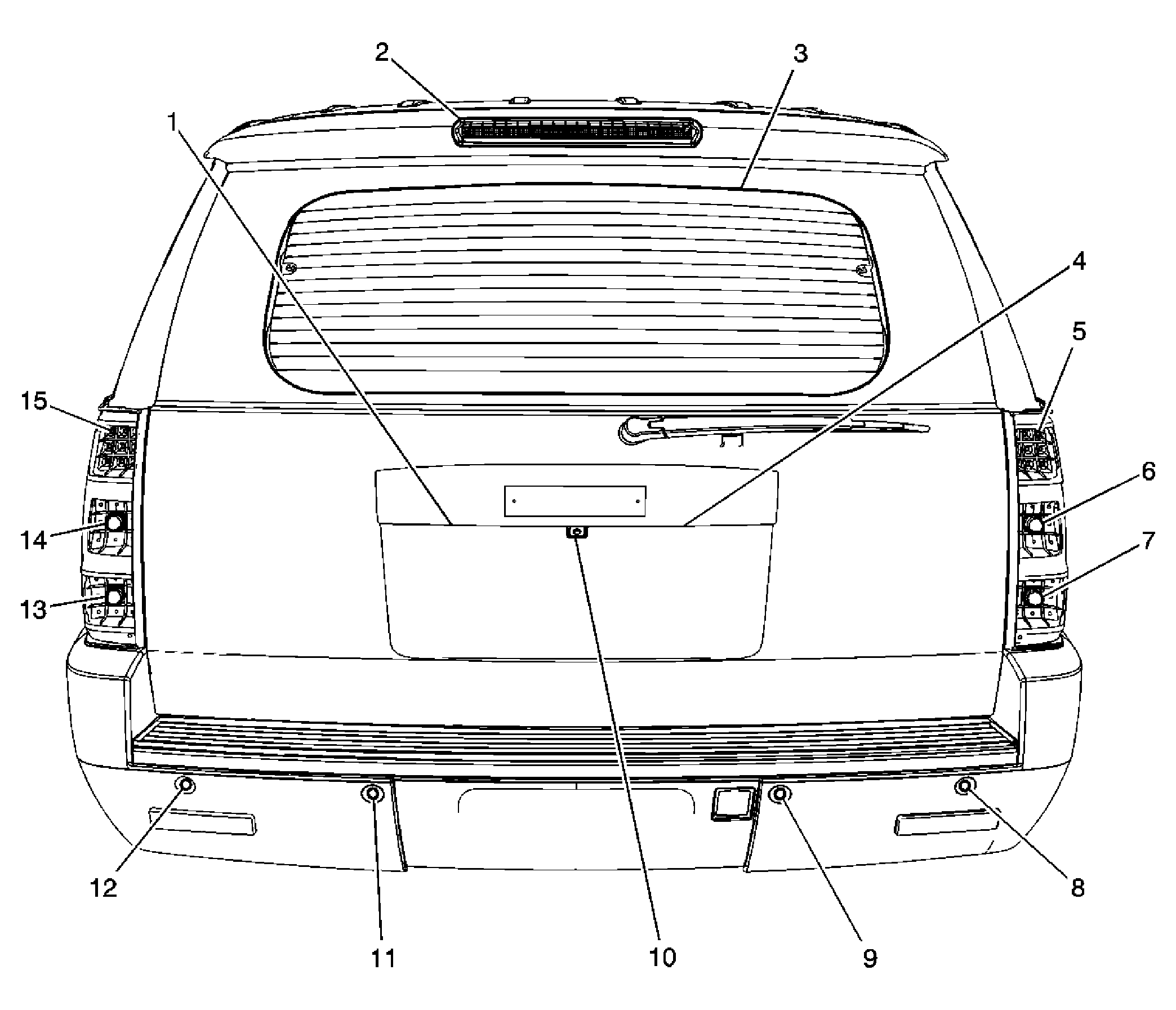

Fig 10: Rear of the Vehicle Components (X88 with E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	License Lamp - Left
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger Grid
4	License Lamp - Right
5	Tail/Stop Lamp - Right
6	Backup Lamp - Right
7	Tail/Turn Signal Lamp - Right
8	Object Alarm Sensor - Right Rear Corner (UD7)
9	Object Alarm Sensor - Right Rear Middle (UD7)
10	Rearview Camera (UVC)
11	Object Alarm Sensor - Left Rear Middle (UD7)
12	Object Alarm Sensor - Left Rear Corner (UD7)
13	Tail/Turn Signal Lamp - Left
14	Backup Lamp - Left
15	Tail/Stop Lamp - Left

Fig 11: View Of Rear Of Vehicle (X88 Except E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rearview Camera (UVC)
2	Tail/Stop Lamp - Right
3	Backup Lamp - Right
4	Tail/Turn Signal Lamp - Right
5	Marker Lamp - Right Rear
6	Object Alarm Sensor - Right Rear Corner (UD7)
7	License Lamp - Right
8	Object Alarm Sensor - Right Rear Middle (UD7)
9	Object Alarm Sensor - Left Rear Middle (UD7)
10	Marker Lamp - Left Rear
11	Tail/Turn Signal Lamp - Left
12	Backup Lamp - Left
13	Tail/Stop Lamp Left
14	Object Alarm Sensor - Left Rear Corner (UD7)
15	License Lamp - Left

Fig 12: Identifying Rear of Vehicle Components (Z88 With E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	License Lamp - Left
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger Grid
4	License Lamp - Right
5	Tail/Stop Lamp - Right
6	Backup Lamp - Right
7	Tail/Turn Signal Lamp - Right
8	Object Alarm Sensor - Right Rear Corner (UD7)
9	Object Alarm Sensor - Right Rear Middle (UD7)
10	Rearview Camera (UVC)
11	Object Alarm Sensor - Left Rear Middle (UD7)
12	Object Alarm Sensor - Left Rear Corner (UD7)
13	Tail/Turn Signal Lamp - Left
14	Backup Lamp - Left
15	Tail/Stop Lamp - Left

Fig 13: View Of Rear Of Vehicle (Z75 w/E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Center High Mounted Stop Lamp (CHMSL)
3	Rearview Camera (UVC)
4	Object Alarm Sensor - Right Rear Corner (UD7)
5	Tail Lamp Circuit Board - Right (Park)
6	Tail Lamp Circuit Board - Right (Marker)
7	Backup Lamp - Right
8	Tail Lamp Circuit Board - Right (Stop/Turn)
9	Object Alarm Sensor - Right Rear Middle (UD7)
10	Tail Lamp Circuit Board - Left (Stop/Turn)
11	Backup Lamp - Left
12	Tail Lamp Circuit Board - Left (Marker)
13	Tail Lamp Circuit Board - Left (Park)
14	Object Alarm Sensor - Left Rear Corner (UD7)
15	Object Alarm Sensor - Left Rear Middle (UD7)

Fig 14: View Of Rear Of Vehicle (Z75 w/o E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp - Upper Left
2	License Lamp - Right
3	Tail/Stop and Turn Signal Lamp - Upper Right
4	Tail/Stop and Turn Signal Lamp - Lower Right
5	Marker Lamp - Right Rear
6	Backup Lamp - Right
7	Object Alarm Sensor - Right Rear Corner (UD7)
8	Object Alarm Sensor - Right Rear Middle (UD7)
9	Object Alarm Sensor - Left Rear Middle (UD7)
10	Object Alarm Sensor - Left Rear Corner (UD7)
11	Rearview Camera (UVC)
12	License Lamp - Left
13	Backup Lamp - Left
14	Marker Lamp - Left Rear
15	Tail/Stop and Turn Signal Lamp - Lower Left
