X700 Body Harness to Left Rear Door Harness

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

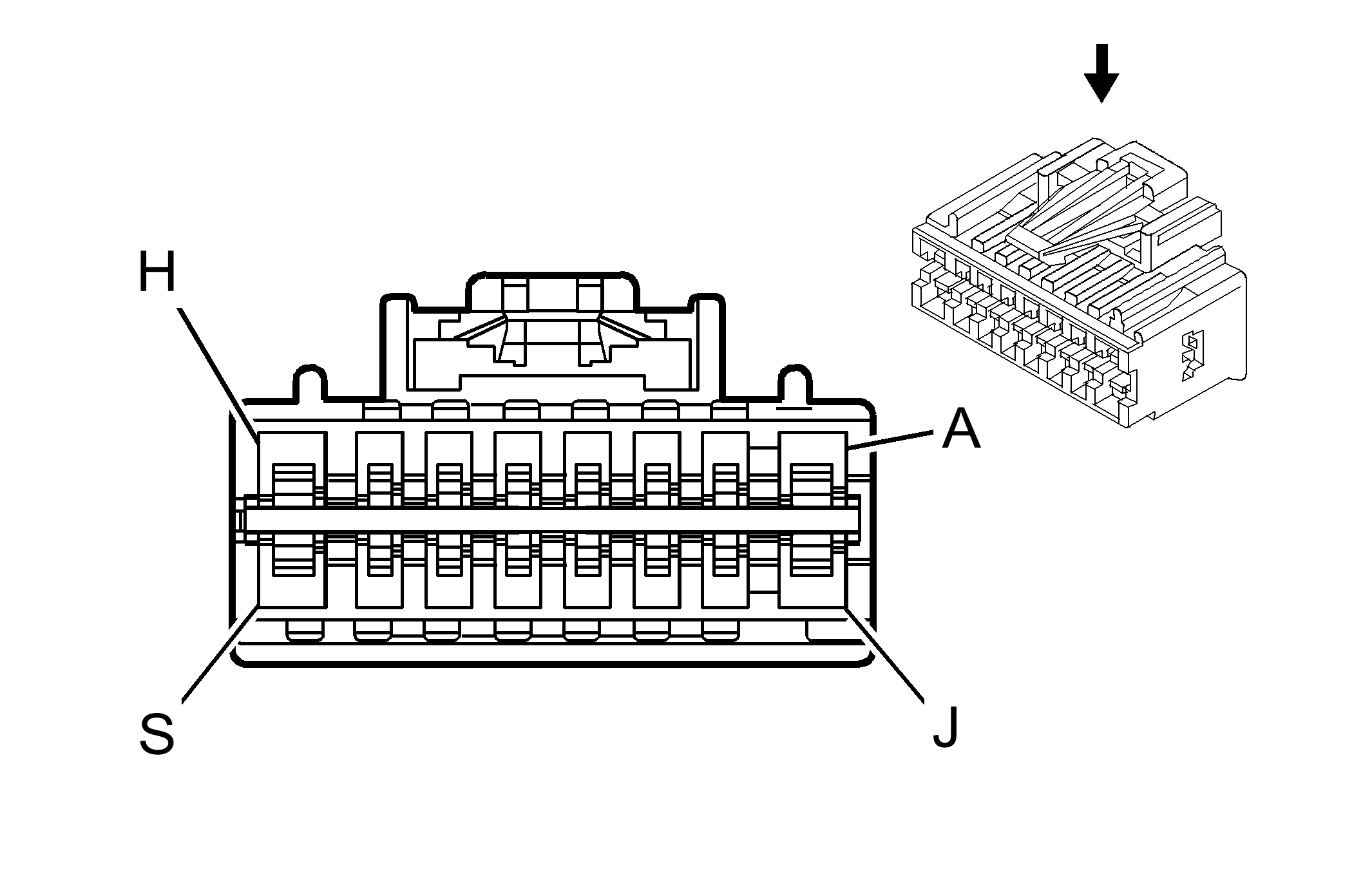

GM1710980Courtesy of GENERAL MOTORS CORP.

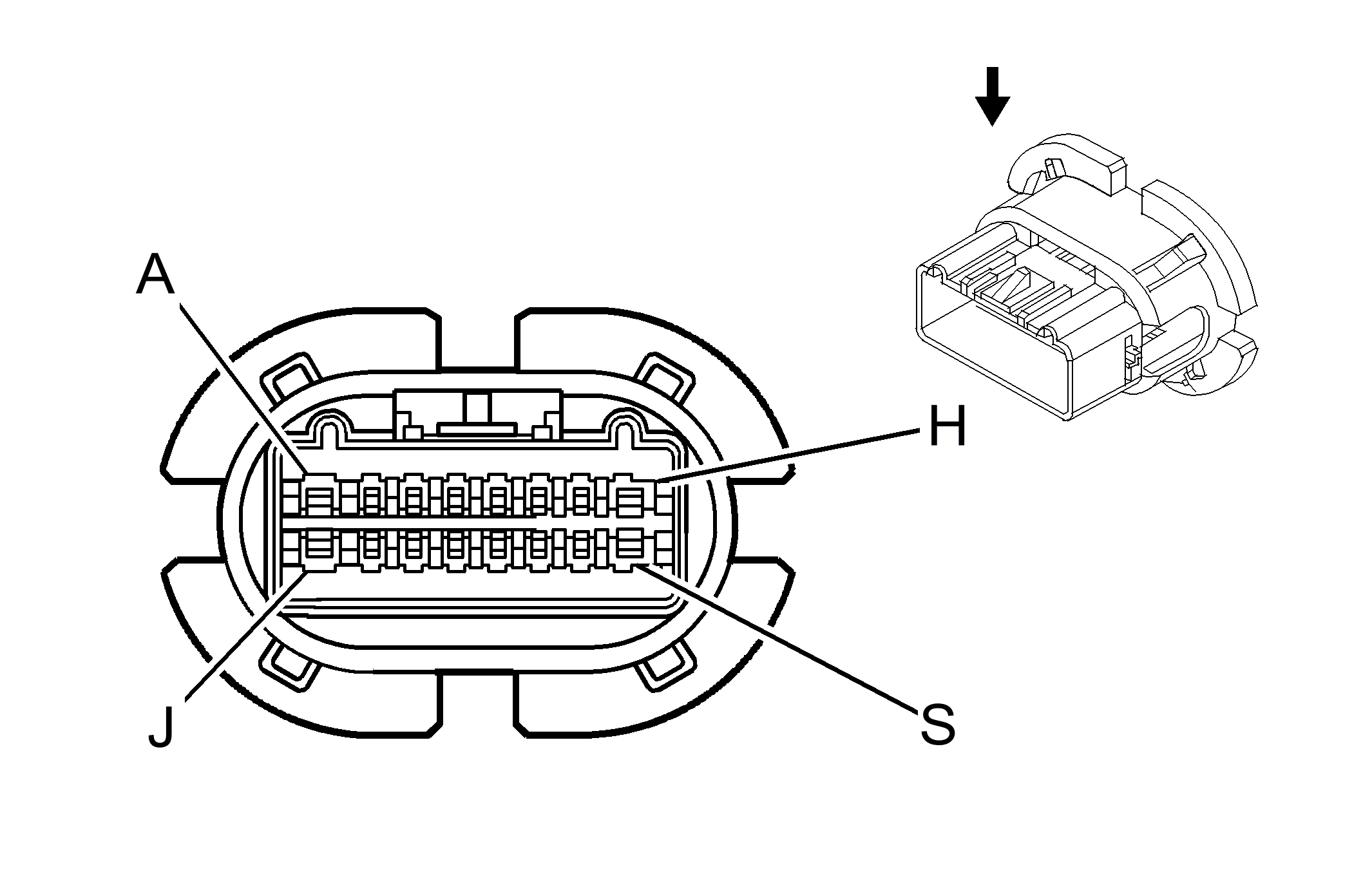

GM1710969Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13539998
  • Service: 19149306
  • Description: 16-Way F GT 150 280 Series, Sealed (BK)
 Connector Part Information
  • OEM: 13540002
  • Service: 19115742
  • Description: 16-Way M GT 150 280 Series (NA)
Terminal Part Information
  • Pins: B-G, K-R
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: Pins: B-G, M, R: E/C
  • Core/Insulation Crimp: Pins: K-L, N, P: C/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: A, H
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: 4/4
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: S
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
 Terminal Part Information
  • Pins: B-G, K-R
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: Pins: B-G, M, R: E/4
  • Core/Insulation Crimp: Pins: K-L, N, P: 2/4
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
  • Pins: A, H
  • Terminal/Tray: 15304724/8
  • Core/Insulation Crimp: A/D
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
  • Pins: S
  • Terminal/Tray: 15304722/8
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
X700 Body Harness to Left Rear Door Harness

Pin Wire Circuit Function Pin Wire Circuit Function
A 2 BK 1150 Ground (HP2) A 3 BK 1150 Ground
3 BK 1150 Ground (except HP2)
B 0.35 PU 169 Power Window Master Switch Left Rear Down Signal B 0.35 PU 169 Power Window Master Switch Left Rear Down Signal
C 0.35 D-BU 1307 Power Window Master Switch Lockout Signal C 0.35 D-BU 1307 Power Window Master Switch Lockout Signal
D 0.35 D-GN 168 Power Window Master Switch Left Rear Up Signal D 0.35 D-GN 168 Power Window Master Switch Left Rear Up Signal
E 0.35 BN/WH 230 Instrument Panel Lamp Dimming Control E 0.5 BN/WH 230 Instrument Panel Lamp Dimming Control
F 0.35 L-BU/BK 747 Left Rear Door Ajar Switch Signal F 0.35 L-BU/BK 747 Left Rear Door Ajar Switch Signal
G 0.5 L-GN/BK 6623 Low Reference (ASF) G 0.5 L-GN/BK 6623 Low Reference (ASF)
H 2 RD/WH 1240 Battery Positive Voltage H 3 RD/WH 1240 Battery Positive Voltage
J - - Not Used J - - Not Used
K 0.5 YE 116 Left Rear Speaker Output (-) (PPV) K 0.8 YE 116 Left Rear Speaker Output (-)
0.8 YE 116 Left Rear Speaker Output (-) (except PPV)
L 0.5 BN 199 Left Rear Speaker Output (+) (PPV) L 0.8 BN 199 Left Rear Speaker Output (+)
0.8 BN 199 Left Rear Speaker Output (+) (except PPV)
M 0.35 BK 1150 Ground M 0.35 BK 1150 Ground
N 0.8 TN 294 Door Lock Actuator Unlock Control N 0.8 TN 294 Door Lock Actuator Unlock Control
P 0.8 GY 295 Door Lock Actuator Lock Control P 0.8 GY 295 Door Lock Actuator Lock Control
R 0.5 L-BU 6622 Left Rear Side Impact Sensing Module Signal (ASF) R 0.5 L-BU 6622 Left Rear Side Impact Sensing Module Signal (ASF)l
S 0.35 OG 5922 Non-Driver Door Open Switch Signal S 0.35 OG 5922 Non-Driver Door Open Switch Signal
0.35 OG 5922 Non-Driver Door Open Switch Signal
