X450 Power Tonneau Cover Assembly Harness to Power Tonneau Cover Jumper (Z75 without E52)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

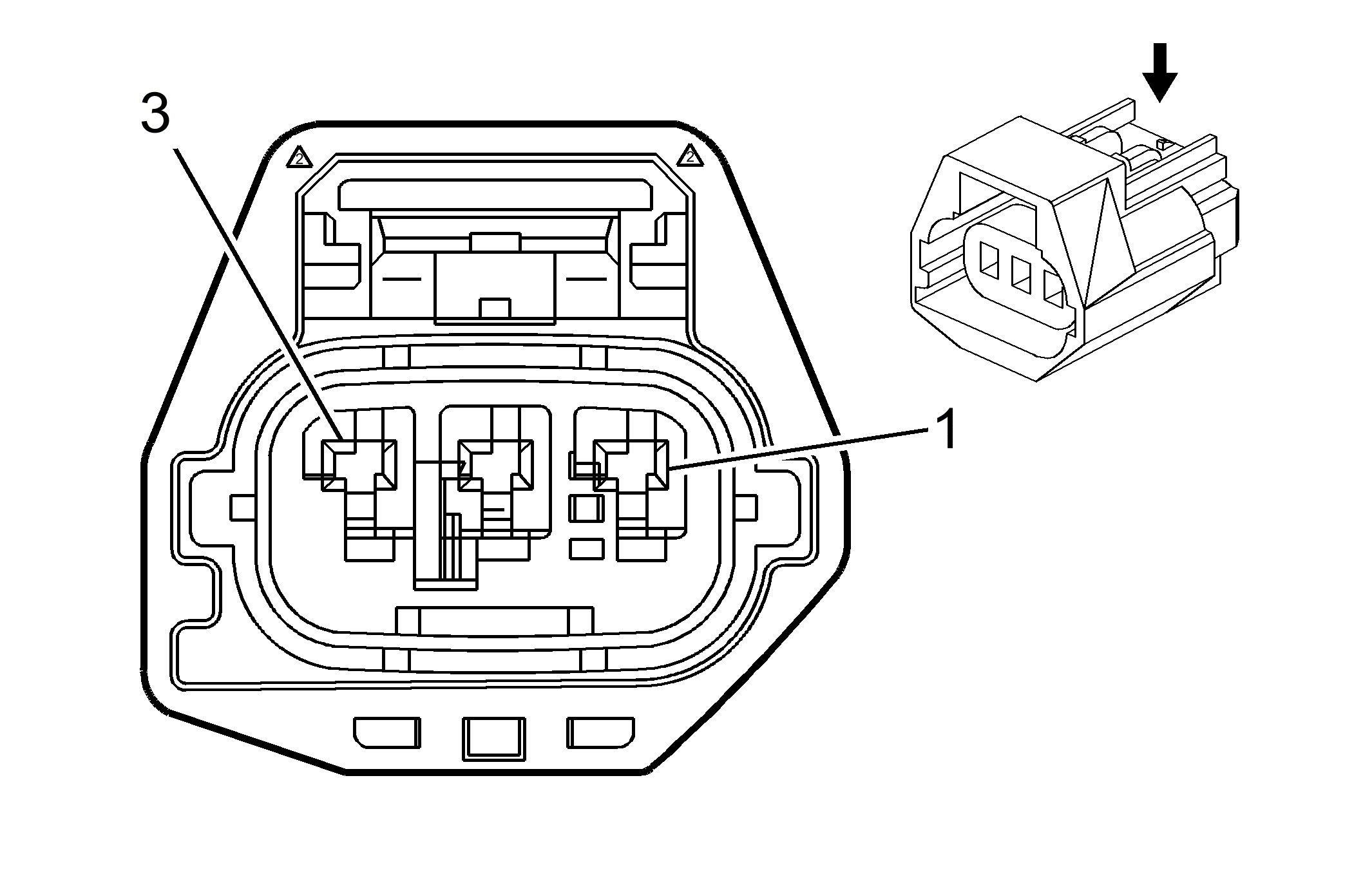

GM1856791Courtesy of GENERAL MOTORS CORP.

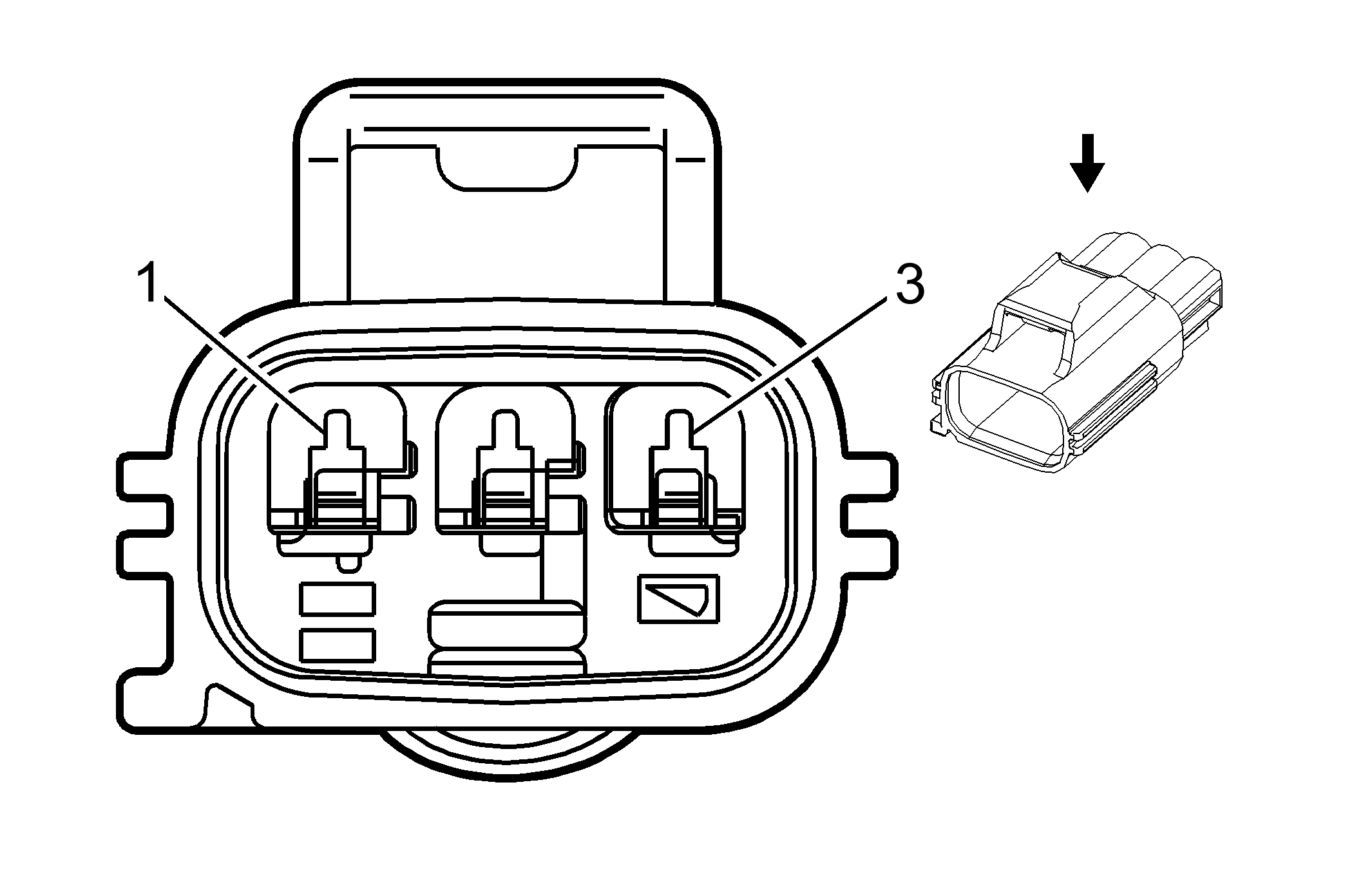

GM1856784Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-5576-10
  • Service: See Catalog
  • Description: 3-Way F YESC/USCAR Series (D-GY)
 Connector Part Information
  • OEM: 7282-5576-10
  • Service: See Catalog
  • Description: 3-Way M YESC/USCAR Series (D-GY)
Terminal Part Information
  • Terminal: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Terminal: 7114-4152-02/9
  • Core/Insulation Crimp: A/5
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
X450 Power Tonneau Cover Assembly Harness to Power Tonneau Cover Jumper (Z75 without E52)

Pin Wire Circuit Function Pin Wire Circuit Function
1 3.0 RD - Battery Positive Voltage 1 3.0 RD - Battery Positive Voltage
2 3.0 BK - Ground 2 3.0 BK - Ground
3 0.35 BN - Not Used 3 0.5 BN - Right Rear Park Lamps Control
