X408 Body Harness to Rear Object Detection Harness (E52 with UD7)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS CORP.

Courtesy of GENERAL MOTORS CORP.

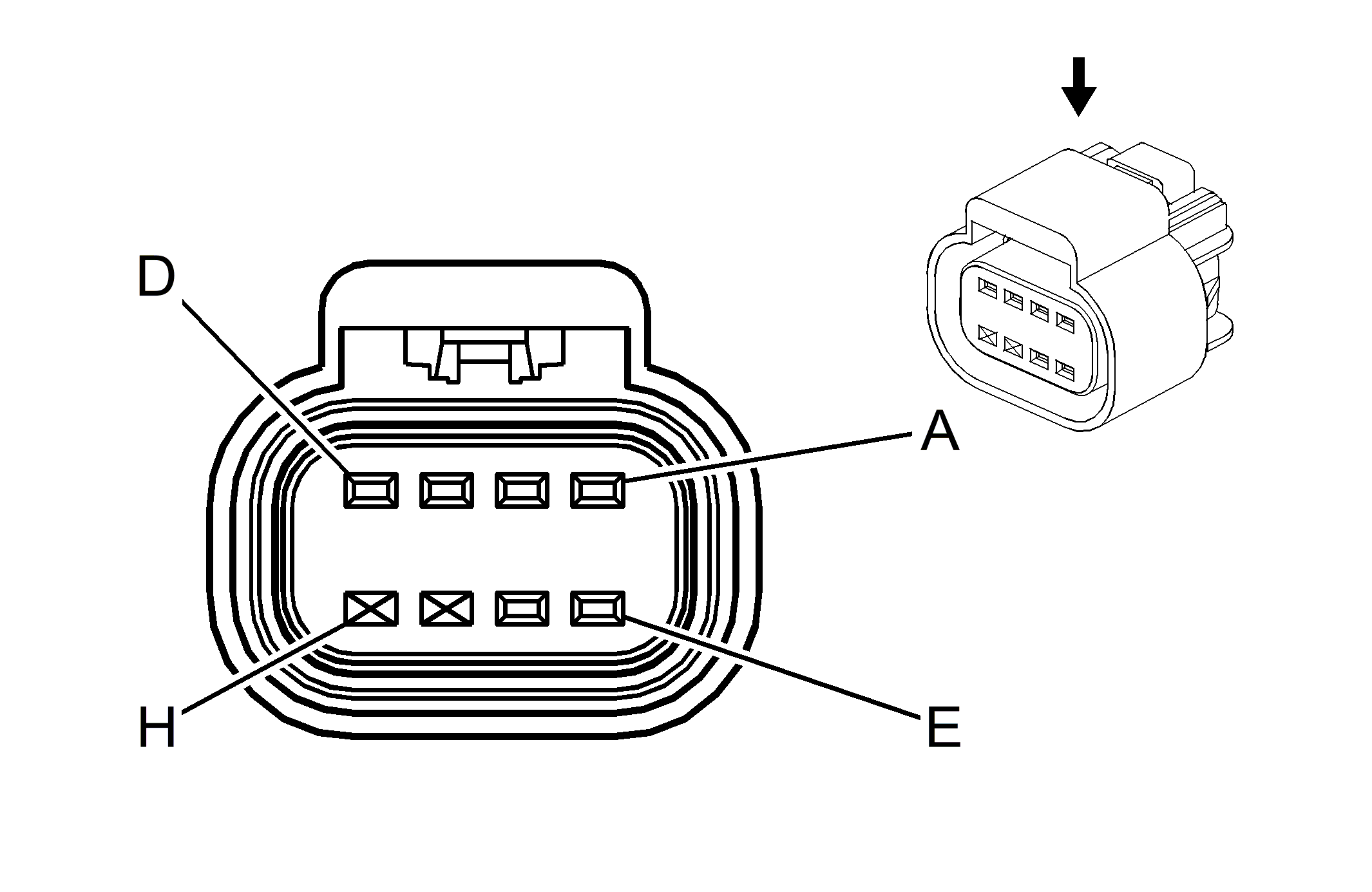

Connector Part Information OEM: 15465945 Service: 88986452 Description: 6-Way F GT 150 Series Sealed (BK)	Connector Part Information OEM: 15326840 Service: 15326840 Description: 8-Way M GT 150 Series Sealed (BK)
Terminal Part Information Terminal/Tray: 12191819/8 Core/Insulation Crimp: E/A Release Tool/Test Probe: 15315247/J-35616-2A (GY)	Terminal Part Information Terminal: 15326269/19 Core/Insulation Crimp: E/4 Release Tool/Test Probe: 15315247/J-35616-3 (GY)

X408 Body Harness to Rear Object Detection Harness (E52 with UD7)

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
A	0.5 D-BU	2374	Object Sensor Control	A	0.5 D-BU	2374	Object Sensor Control
B	0.5 YE	2375	Left Rear Corner Object Sensor Signal	B	0.5 YE	2375	Left Rear Corner Object Sensor Signal
C	0.5 GY	2379	Low Reference	C	0.5 GY	2379	Low Reference
D	0.5 OG	2376	Left Rear Middle Object Sensor Signal	D	0.5 OG	2376	Left Rear Middle Object Sensor Signal
E	0.5 D-GN	2377	Right Rear Middle Object Sensor Signal	E	0.5 D-GN	2377	Right Rear Middle Object Sensor Signal
F	0.5 PU	2378	Right Rear Corner Object Sensor Signal	F	0.5 PU	2378	Right Rear Corner Object Sensor Signal
G-H	-	-	Not Available	G-H	-	-	Not Available
