X304 Headliner Harness to Overhead Console Harness

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

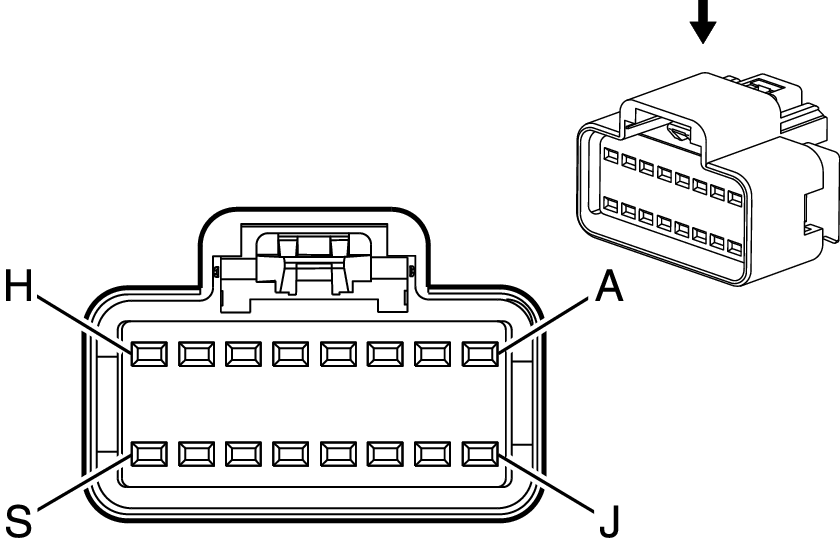

GM1711010Courtesy of GENERAL MOTORS CORP.
GM646377Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13516905
  • Service: 19115728
  • Description: 16-Way F GT 150 Series (BK)
 Connector Part Information
  • OEM: 15332182
  • Service: 15306371
  • Description: 16-Way M GT 150 Series (BK)
Terminal Part Information
  • Terminal: 12191812/19
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
 Terminal Part Information
  • Terminal: 15304702/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
X304 Headliner Harness to Overhead Console Harness

Pin Wire Circuit Function Pin Wire Circuit Function
A 0.5 BK 1050 Ground A 0.35 BK 1050 Ground
B 0.5 RD/WH 240 Battery Positive Voltage B 0.35 RD/WH 240 Battery Positive Voltage
C 0.35 BN/WH 230 Instrument Panel Lamp Dimming Control C 0.35 BN/WH 230 Instrument Panel Lamp Dimming Control
D 0.35 PK 1139 Ignition Voltage D 0.35 PK 1139 Ignition Voltage
E 0.35 D-GN/WH 5800 Front Liftgate Open/Close Switch Signal (E61) E 0.35 D-GN/WH 5800 Front Liftgate Open/Close Switch Signal (E61)
F 0.35 GY 655 Cellular Microphone Signal F 0.35 GY 655 Cellular Microphone Signal
G 0.35 BARE 514 Ground G 0.35 D-GN 654 Low Reference
H 0.35 OG 6815 Inadvertent Power Control H 0.35 OG 6815 Inadvertent Power Control
J 0.5 GY 157 Interior Lamp Control J 0.35 GY 157 Interior Lamp Control
K 0.5 YE/BK 5813 Park Enable Control (ARS) K 0.35 YE/BK 5813 Park Enable Control (ARS)
L 0.5 PU 6811 Left Rear Seat Fold Tumble Signal (ARS) L 0.35 PU 6811 Left Rear Seat Fold Tumble Signal (ARS)
M 0.5 OG/BK 6810 Right Rear Seat Fold Tumble Signal (ARS) M 0.35 OG/BK 6810 Right Rear Seat Fold Tumble Signal (ARS)
N 0.35 D-BU 2307 Passenger Air Bag On Indicator Control N 0.35 D-BU 2307 Passenger Air Bag On Indicator Control
P 0.35 D-GN/BK 2308 Passenger Air Bag Off Indicator Control P 0.35 D-GN/BK 2308 Passenger Air Bag Off Indicator Control
R 0.35 PU 5234 Passenger Seat Belt Indicator R 0.35 PU 5234 Passenger Seat Belt Indicator
S 0.35 D-GN 6112 Power Liftgate On/Off Switch Signal (E61) S 0.35 D-GN 6112 Power Liftgate On/Off Switch Signal (E61)
