X212 Instrument Panel Harness to Instrument Panel Extension Harness (except Y91)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

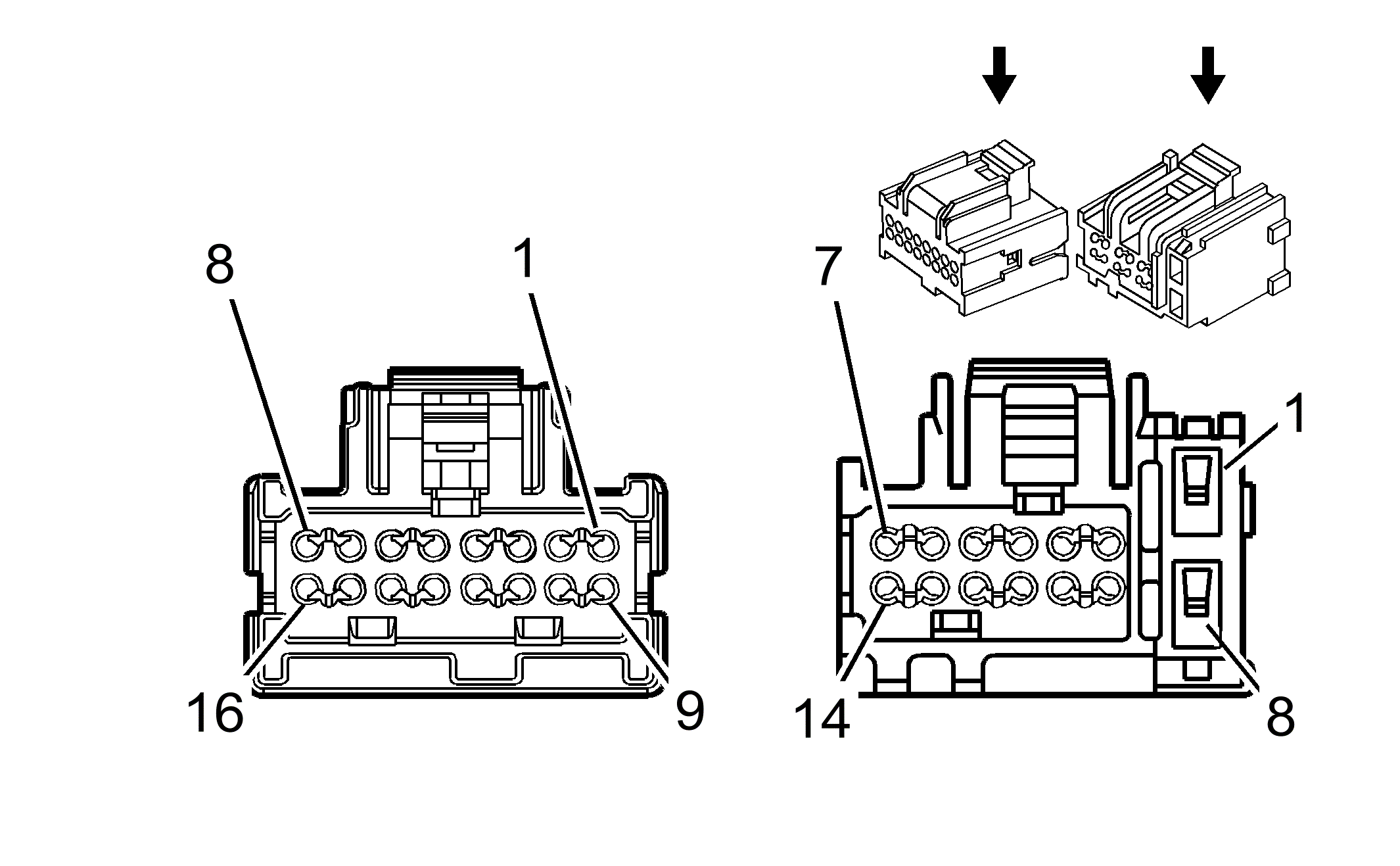

GM1866035Courtesy of GENERAL MOTORS CORP.
GM1710970Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15488568
  • Service: 88988743
  • Description: 14-Way F Micro-Pack 64 Series (BK)
  • OEM: 15416970
  • Service: See Terminal Repair Kit
  • Description: 16-Way F Micro-Pack 64 Series (BK)
 Connector Part Information
  • OEM: 15489498
  • Service: See Catalog
  • Description: 30-Way M GT 150 Micro-Pack 0.64 Series (BK)
Terminal Part Information
  • Pins: A5-A14, B2-B7, B9-B13
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
  • Pins: B1, B8
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: C/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
 Terminal Part Information
  • Pins: A5-A14, B2-B7, B9-B13
  • Terminal/Tray: 15489500/5
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15389891/J-35616-65B (L-BU)
  • Pins: B1, B8
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: 2/4
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
X212 Instrument Panel Harness to Instrument Panel Extension Harness (except Y91)

Pin Wire Circuit Function Pin Wire Circuit Function
1-4 - - Not Used A1-A4 - - Not Used
5 0.5 BN 199 Left Rear Speaker Output (+) A5 0.8 BN 199 Left Rear Speaker Output (+)
0.5 BN 199 Left Rear Speaker Output (+) (UQ3 without UK6)
6 0.5 D-BU 46 Right Rear Speaker Output (+) A6 0.8 D-BU 46 Right Rear Speaker Output (+)
0.5 D-BU 46 Right Rear Speaker Output (+) (UQ3 without UK6)
7-12 - - Not Used A7-A12 - - Not Used
13 0.5 YE 116 Left Rear Speaker Output (-) A13 0.8 YE 116 Left Rear Speaker Output (-)
0.5 YE 116 Left Rear Speaker Output (-) (UQ3 without UK6)
14 0.5 L-BU 115 Right Rear Speaker Output (-) A14 0.8 L-BU 115 Right Rear Speaker Output (-)
0.5 L-BU 115 Right Rear Speaker Output (-) (UQ3 without UK6)
15-16 - - Not Used A15-A16 - - Not Used
1 1 RD/WH 340 Battery Positive Voltage B1 1 RD/WH 340 Battery Positive Voltage
2 0.5 TN 201 Left Front Speaker Output (+) B2 0.5 TN 201 Left Front Speaker Output (+) (UQ3)
0.8 TN 201 Left Front Speaker Output (+) (without UQ3)
3 0.5 L-GN 200 Right Front Speaker Output (+) (HP2) B3 0.5 L-GN 200 Right Front Speaker Output (+) (UQ3)
0.35 L-GN 200 Right Front Speaker Output (+) (except HP2) 0.8 L-GN 200 Right Front Speaker Output (+) (without UQ3)
4-5 - - Not Used B4-B5 - - Not Used
6 0.35 WH 7066 Entertainment Remote Enable Signal (U84) B6 0.35 WH 7066 Entertainment Remote Enable Signal (U84)
7 0.35 YE 6817 LED Backlight Dimming Control B7 0.35 YE 6817 LED Backlight Dimming Control
8 1 BK 2550 Ground B8 1 BK 2550 Ground
9 0.5 GY 118 Left Front Speaker Output (-) B9 0.5 GY 118 Left Front Speaker Output (-) (UQ3)
0.8 GY 118 Left Front Speaker Output (-) (without UQ3)
10 0.5 D-GN 117 Right Front Speaker Output (-) B10 0.5 D-GN 117 Right Front Speaker Output (-)
(UQ3)
0.8 D-GN 117 Right Front Speaker Output (-) (without UQ3)
11-12 - - Not Used B11-B12 - - Not Used
13 0.35 D-GN 5060 Low Speed GMLAN Serial Data B13 0.35 D-GN 5060 Low Speed GMLAN Serial Data
14 - - Not Used B14 - - Not Used
