X150 Engine Harness to I/P Harness (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

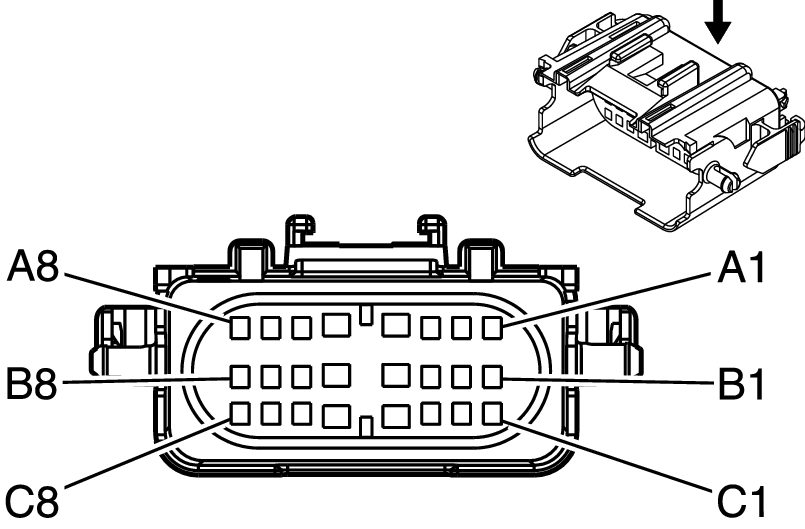

GM1552588Courtesy of GENERAL MOTORS CORP.
GM586335Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15366099
  • Service: 19153767
  • Description: 24-Way F GT 150 280 Series, Sealed (BK)
 Connector Part Information
  • OEM: 15336173
  • Service: 19167005
  • Description: 24-Way M GT 150 280 Series, Sealed (BK)
Terminal Part Information
  • Pins: A3, B6, B7, C2, C7, C8, C1, A1, A2, A5, B3, B8, C3, C6
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: Pins: A3, B6, B7, C2, C7, C8 : 2/A
  • Core/Insulation Crimp: Pins: C1, A1, A2, A5, B3, B8, C3, C6 : E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: A4, B4, B5, C4, C5
  • Terminal/Tray: 15304719/19
  • Core/Insulation Crimp: E/5
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Terminal/Tray: (blank)
  • Core/Insulation Crimp: (blank)
  • Release Tool/Test Probe: (blank)
 Terminal Part Information
  • Pins: B7, C2, C6, C7, C8, C1, A1, A2, A3, A5, B3, B6, B8, C3
  • Terminal/Tray: 15326269/19
  • Core/Insulation Crimp: Pins: B7, C2, C6, C7, C8 : E/1
  • Core/Insulation Crimp: Pins: C1, A1, A2, A3, A5, B3, B6, B8, C3 : E/4
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
  • Pins: A4, B4, B5, C4, C5
  • Terminal/Tray: 15304731/19
  • Core/Insulation Crimp: E/5
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
  • Terminal/Tray: (blank)
  • Core/Insulation Crimp: (blank)
  • Release Tool/Test Probe: (blank)
X150 Engine Harness to I/P Harness (HP2)

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 0.5 L-GN/BK 968 Audio Common A1 0.5 L-GN/BK 968 Audio Common
A2 0.5 D-BU 932 APM Wake-Up Signal A2 0.5 D-BU 932 APM Wake-Up Signal
A3 0.8 RD/WH 4240 Battery Positive Voltage A3 0.5 RD/WH 4240 Battery Positive Voltage
A4 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus + A4 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus +
A5 0.5 TN/BK 2501 High Speed GMLAN Serial Data Bus - A5 0.5 TN 2501 High Speed GMLAN Serial Data Bus -
A6 - - Not Used A6 - - Not Used
A7 - - Not Used A7 - - Not Used
A8 - - Not Used A8 - - Not Used
B1 - - Not Used B1 - - Not Used
B2 - - Not Used B2 - - Not Used
B3 0.5 GY 970 5-Volt Reference B3 0.5 GY 970 5-Volt Reference
B4 0.5 D-BU 204 A/C Low Pressure Sensor Signal B4 0.5 D-BU 204 A/C Low Pressure Sensor Signal
B5 0.5 TN 914 A/C Low Pressure Sensor Signal B5 0.5 TN 914 A/C Low Pressure Sensor Signal
B6 0.8 PK 2014 Coolant Pump Relay Control B6 0.5 PK 2014 Coolant Pump Relay Control
B7 0.8 BK/WH 1851 Ground B7 0.8 BK/WH 1851 Ground
B8 0.5 L-BU 5986 Serial Data Communication Enable B8 0.35 L-BU 5986 Serial Data Communication Enable
C1 0.5 OG 300 Ignition Voltage C1 0.5 BN 241 Ignition Voltage
C2 1 RD/WH 4140 Battery Positive Voltage C2 1 RD/WH 4140 Battery Positive Voltage
C3 0.5 D-GN 5060 Low Speed GMLAN Serial Data C3 0.35 D-GN 5060 Low Speed GMLAN Serial Data
C4 0.5 PU 5087 High Voltage Interlock Loop Signal C4 0.35 PU 5087 High Voltage Interlock Loop Signal
C5 0.5 YE 5690 High Voltage Interlock Loop Signal C5 0.35 YE 5690 High Voltage Interlock Loop Signal
C6 0.35 YE 988 Contactor Control C6 0.8 PK 988 Contactor Control
C7 0.8 RD/WH 4240 Battery Positive Voltage C7 0.8 RD/WH 4240 Battery Positive Voltage
C8 0.8 RD/WH 4640 Battery Positive Voltage C8 0.8 RD/WH 4640 Battery Positive Voltage
