Shock Absorber Replacement (2500)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

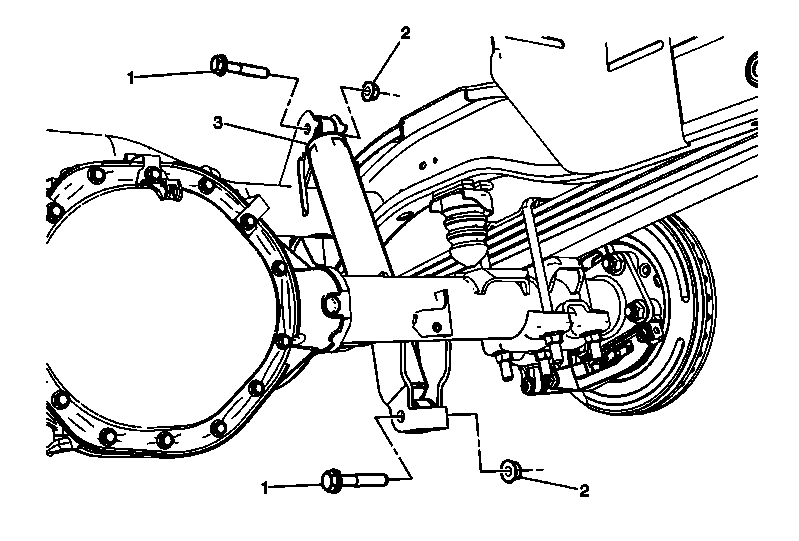

Fig 1: View Of Shock Absorber, Nuts & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Rear Shock Absorber Bolt (Qty: 2) Procedure Disconnect the Electronic Suspension Control electrical connector, if equipped. Support the rear drive axle with a suitable jack stand.
2	Rear Shock Absorber Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 115 N.m (85 lb ft)
3	Rear Shock Absorber
