Rear Axle Tie Rod Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

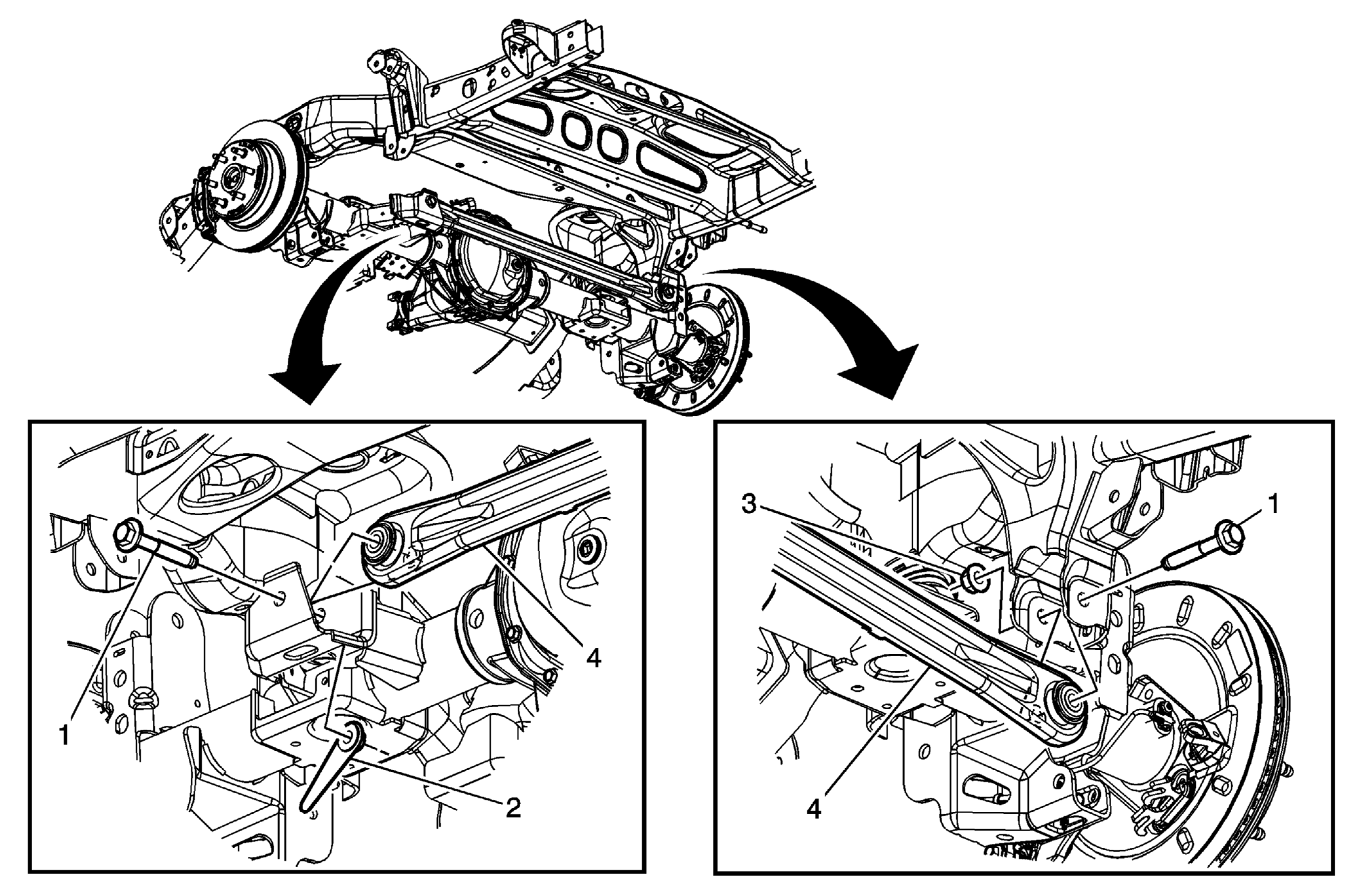

Fig 1: Identifying Rear Axle Tie Rod Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Rear Axle Tie Rod Mounting Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Procedure Support the rear drive axle before removing either of the mounting bolts. Finger tighten the mounting bolt. This will allow for movement in the rear axle tie rod to align the opposite end mounting bolt and hole. Tighten: 140 N.m (103 lb ft)
2	Rear Axle Tie Rod Lower Nut
3	Rear Axle Tie Rod Upper Nut
4	Rear Axle Tie Rod Procedure: Disconnect the park brake cable from the rear axle tie rod.
