Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

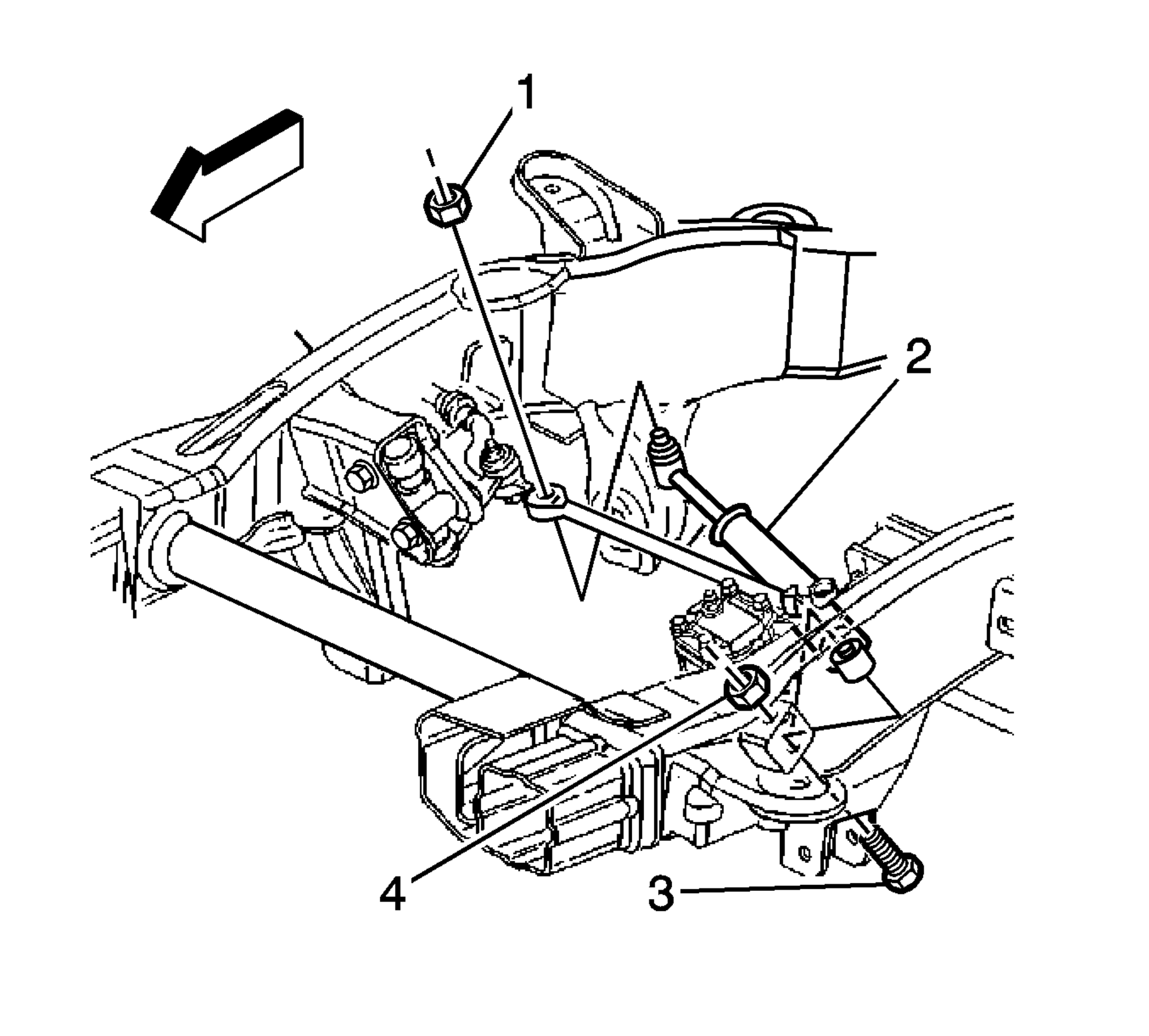

    Fig 1: Identifying Steering Linkage Shock Absorber Bolt & Nut
    GM1862841Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Use new steering linkage shock absorber nuts.
  1. Install the steering linkage shock absorber (2) to the vehicle.
  2. Install the steering linkage shock absorber (4) and nuts (1, 3).
    3. NOTE: Refer to Fastener Notice .
  3. Tighten the steering linkage shock absorber nuts (1, 3).

    Tighten:  Tighten the nuts to 40 N.m (30 lb ft).

  4. Install the engine shield, if equipped. Refer to Engine Shield Replacement .
