Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Idler Arm, Frame Bolts & Nuts
    GM340442Courtesy of GENERAL MOTORS CORP.
  1. Position the idler arm (2) to the vehicle frame.
    2. NOTE: Refer to Fastener Notice .
  2. Install the idler arm bolts (3) and nuts (1) to the frame.

    Tighten:  Tighten the bolts and nuts to 105 N.m (78 lb ft).

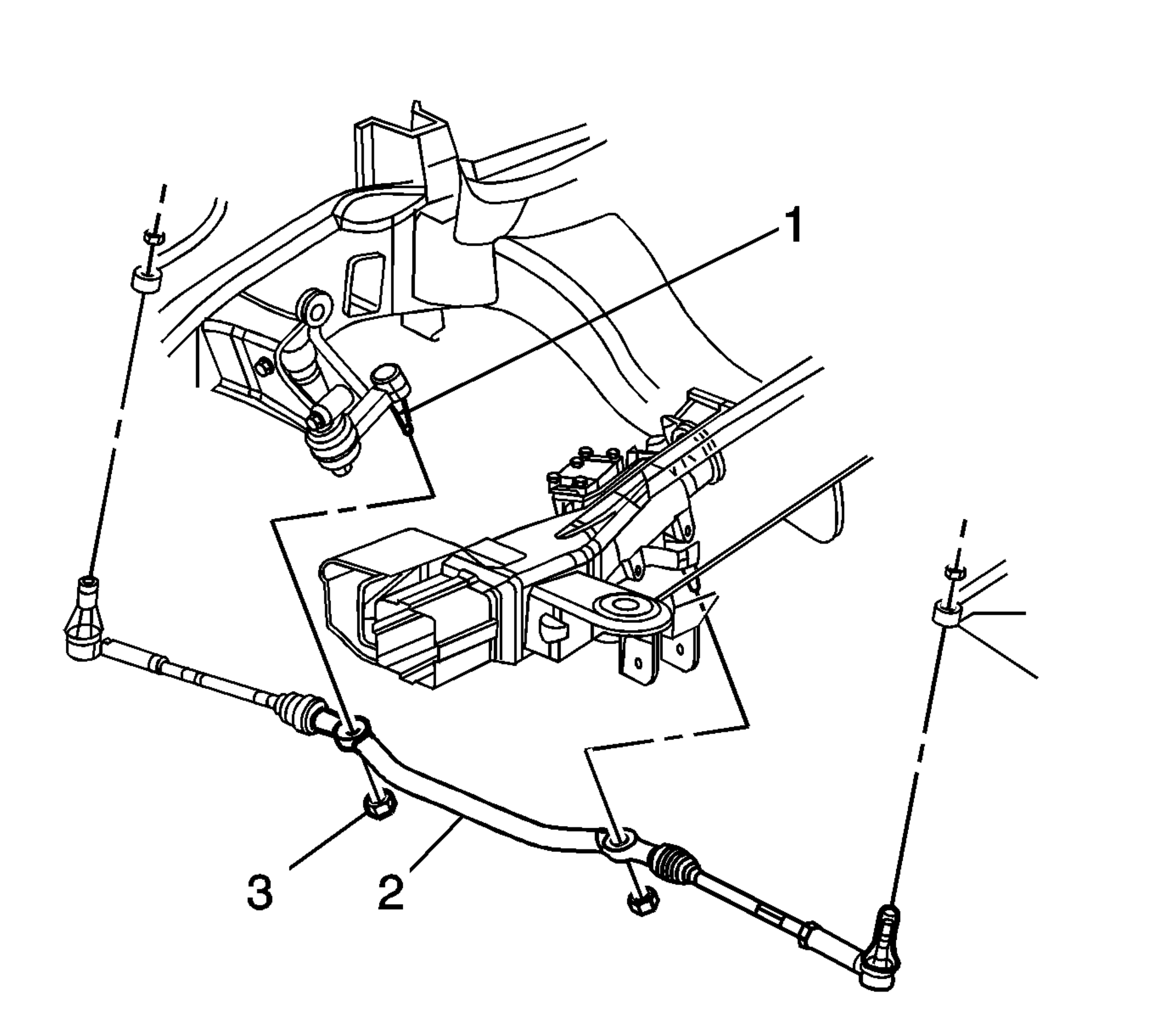

    3. Fig 2: View Of Idler Arm & Relay Rod
    GM1862657Courtesy of GENERAL MOTORS CORP.
  3. Install the idler arm (1) to the relay rod (2).
    4. IMPORTANT: Do not reuse the old idler arm nut.
  4. Install the new idler arm nut (3) to the idler arm (1).

    Tighten:  Tighten the nut to 62 N.m (46 lb ft).

  5. Install the engine shield, if equipped. Refer to Engine Shield Replacement .
  6. Adjust the front toe. Refer to Front Toe Adjustment .
