Disassembled Views

WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

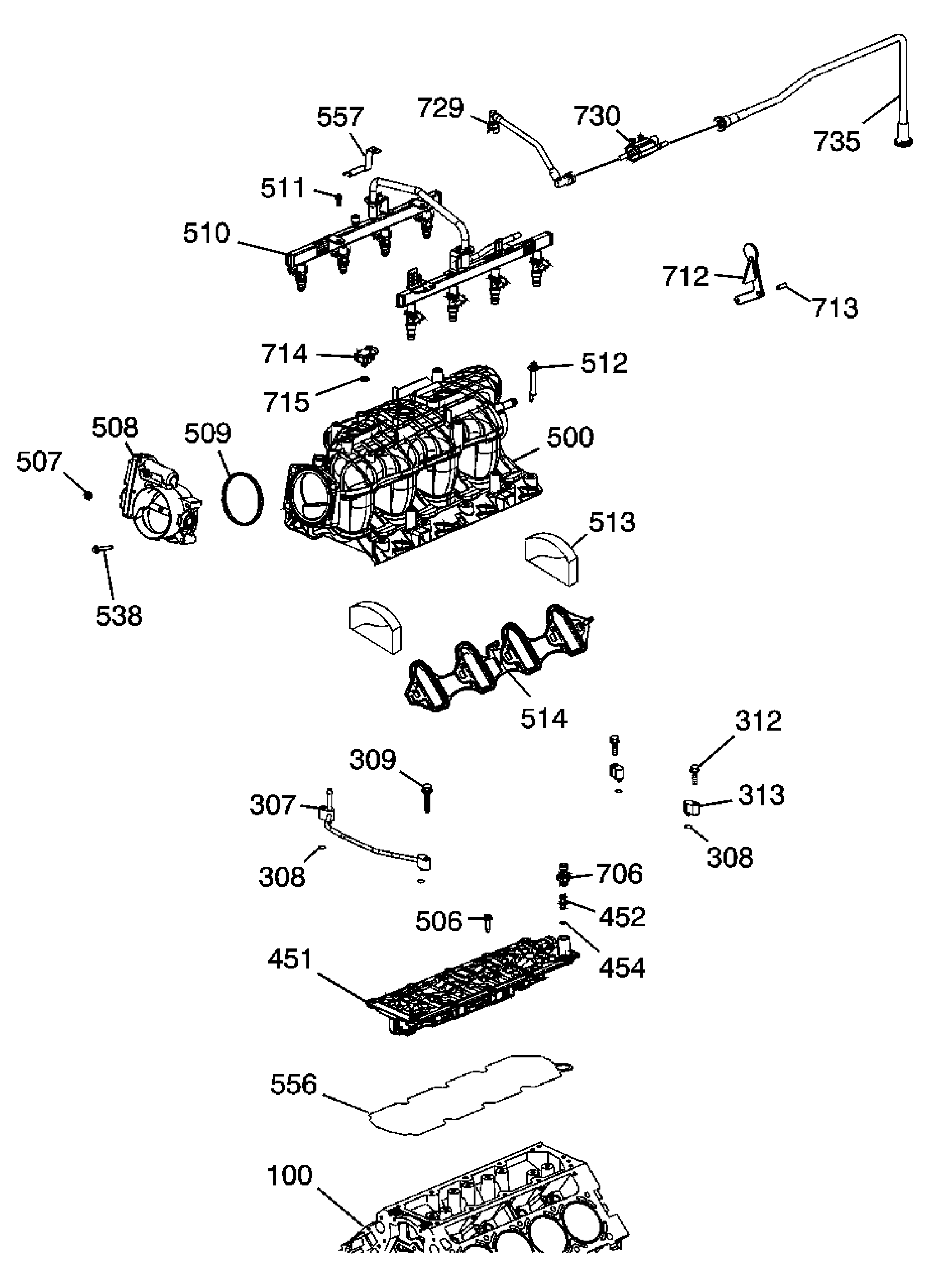

Fig 1: Intake Manifold/Upper Engine
GM1967297Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
307 Engine Coolant Air Bleed Pipe
308 Engine Coolant Air Bleed Pipe O-Ring Seal
308 Engine Coolant Air Bleed Pipe O-Ring Seal
309 Bolt
312 Bolt
313 Engine Coolant Air Bleed Pipe Hole Cover
451 Valve Lifter Oil Manifold
452 Valve Lifter Oil Filter
454 Valve Lifter Oil Filter Seal
500 Intake Manifold
506 Bolt
507 Throttle Body Nut
508 Throttle Body
509 Throttle Body Seal
510 Sequential Multi-Port Fuel Injector Assembly with Fuel Rail
511 Fuel Injection Fuel Rail Bracket Bolt
512 Intake Manifold Bolt
513 Intake Manifold Seal
514 Intake Manifold Gasket
538 Throttle Body Bolt
556 Gasket
557 Fuel Injection Fuel Rail Bracket
706 Engine Oil Pressure Sensor
712 Fuel Injection Fuel Rail Stop
713 Bolt
714 Manifold Absolute Pressure (MAP) Sensor
715 MAP Sensor O-Ring Seal
729 Evaporative (EVAP) Emission Canister Purge Tube
730 EVAP Emission Canister Purge Solenoid Valve
735 EVAP Emission Canister Purge Tube
Fig 2: Cylinder Head/Upper Engine - RPO LC9/LY5/LMG/L76
GM1658311Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
209 Valve Lifter - Non-Active Fuel Management
210 Valve Lifter Guide
211 Valve Lifter Guide Bolt
212 Valve Push Rod
213 Valve Rocker Arm
214 Valve Rocker Arm Pivot Support Bolt
215 Valve Rocker Arm Pivot Support
216 Cylinder Head Core Hole Plug
217 Cylinder Head Gasket
218 Cylinder Head
219 Valve Lifter - Active Fuel Management
220 Cylinder Head Bolt - M10
221 Cylinder Head Bolt - M8
222 Valve Stem Oil Seal
223 Valve Spring
224 Valve Spring Cap
225 Valve Stem Key
226 Cylinder Head Core Hole Plug
227 Intake Valve
228 Exhaust Valve
229 Cylinder Head Plug
230 Cylinder Head Locating Pin
422 Oil Fill Tube O-Ring Seal
423 Oil Fill Tube
424 Oil Fill Cap
450 Oil Fill Cap O-Ring Seal
504 Valve Rocker Arm Cover Gasket
504 Valve Rocker Arm Cover Gasket
505 Valve Rocker Arm Cover
505 Valve Rocker Arm Cover
516 Valve Rocker Arm Cover Bolt
600 Exhaust Manifold
601 Exhaust Manifold Gasket
602 Exhaust Manifold Flange Bolt
603 Exhaust Manifold Heat Shield
604 Exhaust Manifold Heat Shield Bolt
700 Positive Crankcase Ventilation (PCV) Hose - Fresh Air
716 PCV Hose - Dirty Air
719 Ignition Coil Bracket
720 Ignition Coil Bracket Bolt
721 Ignition Coil Wire Harness Assembly
722 Ignition Coil
723 Ignition Coil Bolt
724 Spark Plug Wire
725 Engine Coolant Temperature Sensor
726 Spark Plug
Fig 3: Front of Engine
GM1967298Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
138 Crankshaft Balancer
139 Crankshaft Balancer Bolt
140 Crankshaft Front Oil Seal
200 Camshaft
201 Camshaft Bearing
202 Camshaft Sprocket Locating Pin
203 Camshaft Retainer
204 Camshaft Retainer Bolt
207 Crankshaft Sprocket
208 Timing Chain
231 Timing Chain Tensioner Bolt
232 Timing Chain Tensioner
234 Camshaft Position (CMP) Actuator Solenoid Valve
235 CMP Actuator
300 Water Pump
301 Water Pump Bolt
302 Water Pump Inlet Bolt
303 Water Pump Inlet
305 Engine Coolant Thermostat
306 Water Pump Gasket
404 Oil Pump Suction Pipe Nut
405 Oil Pump Suction Pipe Bolt
406 Oil Pump O-Ring Seal
407 Oil Pump Suction Pipe
408 Bolt
409 Oil Pump Housing Cover
410 Oil Pump Vane Ring
410 Oil Pump Vane Ring
411 Oil Pump Bolt
412 Oil Pump Slide
413 Oil Pump Housing
414 Oil Pump Slide Seal
415 Oil Pump Slide Seal
416 Oil Pump Slide Spring
417 Oil Level Indicator O-Ring Seal
418 Oil Level Indicator
419 Oil Level Indicator Tube Bolt
420 Oil Level Indicator Tube
421 O-Ring
456 Oil Pump Rotor
457 Oil Pump Vane
458 Oil Pump Housing
501 Engine Front Cover Bolt
502 Engine Front Cover
503 Engine Front Cover Gasket
703 CMP Sensor
704 CMP Sensor O-Ring Seal
705 CMP Sensor Bolt
737 CMP Sensor Wire Harness Assembly
738 CMP Sensor Wire Harness Assembly Bolt
738 CMP Sensor Wire Harness Assembly Bolt
751 CMP Actuator Hub Cover Bolt
752 CMP Actuator Magnet
753 CMP Actuator Magnet Gasket
Fig 4: Rear of Engine
GM1967299Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
132 Flex Plate - Automatic Transmission
133 Flywheel Bolt
141 Crankshaft Rear Oil Seal
517 Crankshaft Rear Oil Seal Housing Bolt
518 Crankshaft Rear Oil Seal Housing
519 Crankshaft Rear Oil Seal Housing Gasket

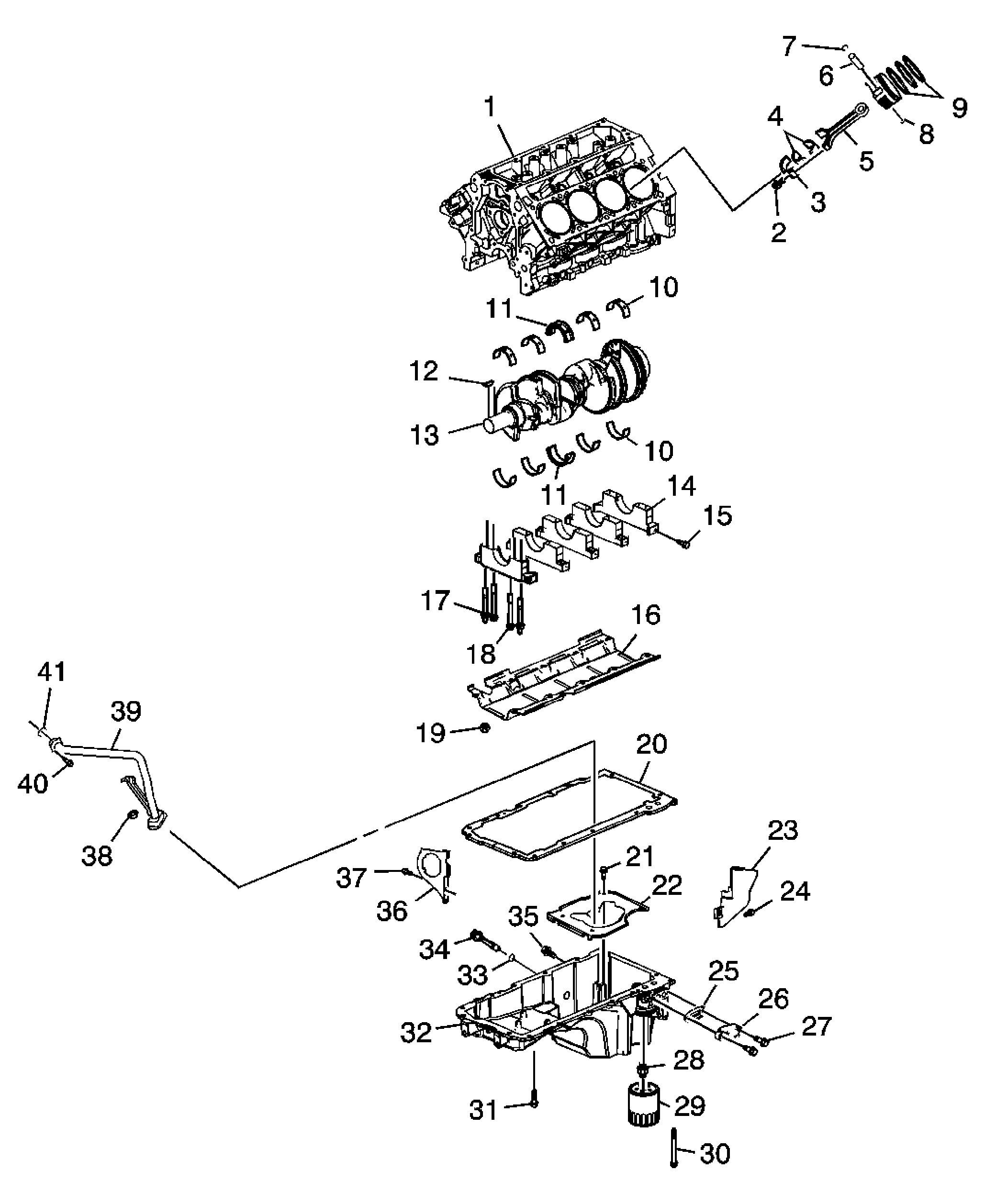

Fig 5: Lower Engine Assembly
GM2076617Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Block
2 Connecting Rod Bolt
3 Connecting Rod Cap
4 Connecting Rod Bearing
5 Connecting Rod
6 Piston Pin
7 Piston Pin Retainer
8 Piston
9 Piston Ring Set
10 Crankshaft Bearing
11 Crankshaft Thrust Bearing
12 Crankshaft Balancer Key
13 Crankshaft
14 Crankshaft Bearing Cap
15 Crankshaft Bearing Cap Bolt - M8
16 Crankshaft Oil Deflector
17 Crankshaft Bearing Cap Stud - M10
18 Crankshaft Bearing Cap Bolt - M10
19 Crankshaft Oil Deflector Nut
20 Oil Pan Gasket
21 Oil Pan Baffle Bolt
22 Oil Pan Baffle
23 Oil Pan Closeout Cover
24 Oil Pan Closeout Cover Bolt
25 Oil Pan Cover Gasket
26 Oil Pan Cover
27 Oil Pan Cover Bolt
28 Oil Filter Fitting
29 Oil Filter
30 Oil Pan Bolt
31 Oil Pan Bolt
32 Oil Pan
33 O-ring
34 Engine Oil Level Indicator Switch
35 Oil Pan Drain Plug
36 Oil Pan Closeout Cover
37 Oil Pan Closeout Cover Bolt
38 Oil Pump Suction Pipe Nut
39 Oil Pump Suction Pipe
40 Oil Pump Suction Pipe Bolt
41 Oil Pump O-ring Seal
Fig 6: Exploded View Of Engine Block Plugs/Sensors Components
GM1401949Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
100 Engine Block
101 Oil Gallery Plug - Front
110 O-Ring
111 Oil Gallery Plug - Rear
112 Oil Gallery Plug - Side
113 Washer
114 Engine Coolant Heater
115 Washer
116 Oil Gallery Plug - Side
117 Washer
130 Transmission Housing Locating Pin
145 Washer
146 Engine Block Coolant Drain Hole Plug
701 Crankshaft Position (CKP) Sensor
702 O-Ring
718 Knock Sensor
718 Knock Sensor
739 Bolt
739 Bolt
750 CKP Sensor Bolt
Fig 7: Oil Pump Assembly
GM1967301Courtesy of GENERAL MOTORS CORP.
Callout Component Name
408 Bolt
409 Oil Pump Housing Cover
410 Oil Pump Vane Ring
410 Oil Pump Vane Ring
412 Oil Pump Slide
413 Oil Pump Housing
414 Oil Pump Slide Seal
415 Oil Pump Slide Seal
416 Oil Pump Slide Spring
456 Oil Pump Rotor
457 Oil Pump Vane
458 Oil Pump Housing
