Resonator Replacement (LFA)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

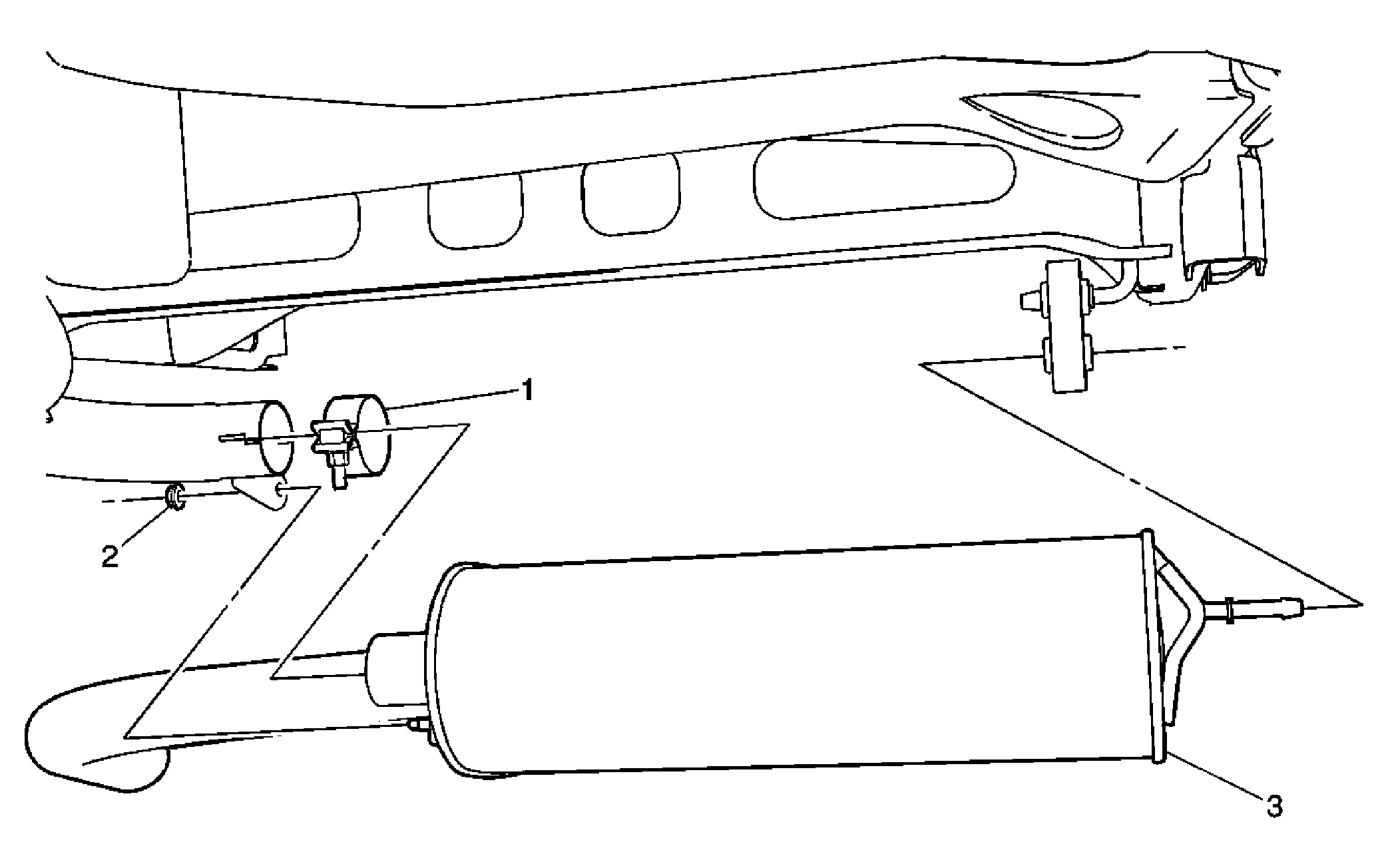

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Clamp
NOTE:
Refer to Fastener Notice
.
Tighten: 55 N.m (40 lb ft) |
| 2 | Nut Tighten: 5 N.m (44 lb in) |
| 3 | Exhaust Resonator Procedure: Disengage the resonator from the insulators. |
