Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

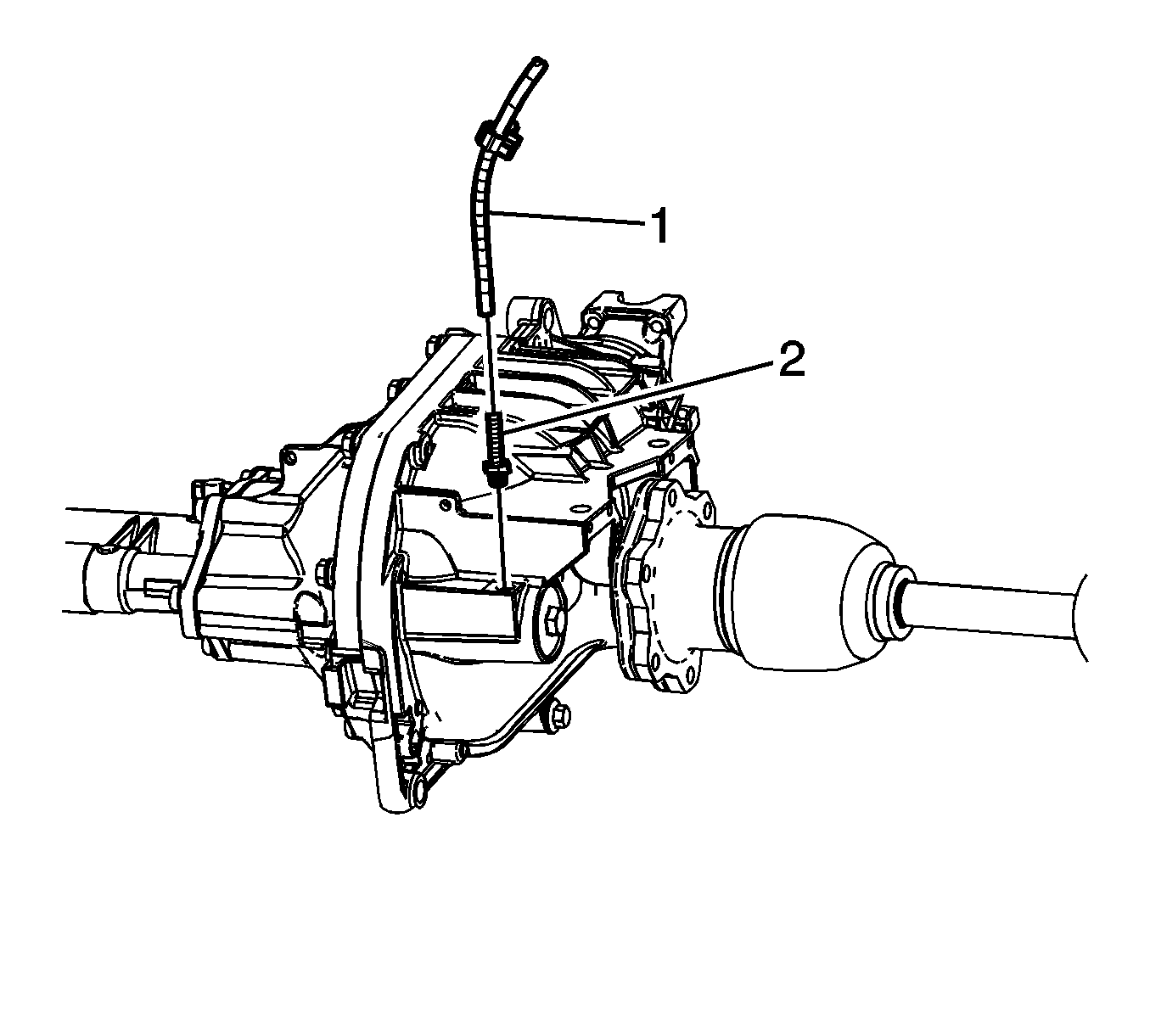

    Fig 1: View Of Vent Hose & Connector
    GM1690209Courtesy of GENERAL MOTORS CORP.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front differential carrier shield, if equipped. Refer to Shield Replacement .
  3. Remove the vent hose (1).
  4. Remove the vent hose connector (2).
