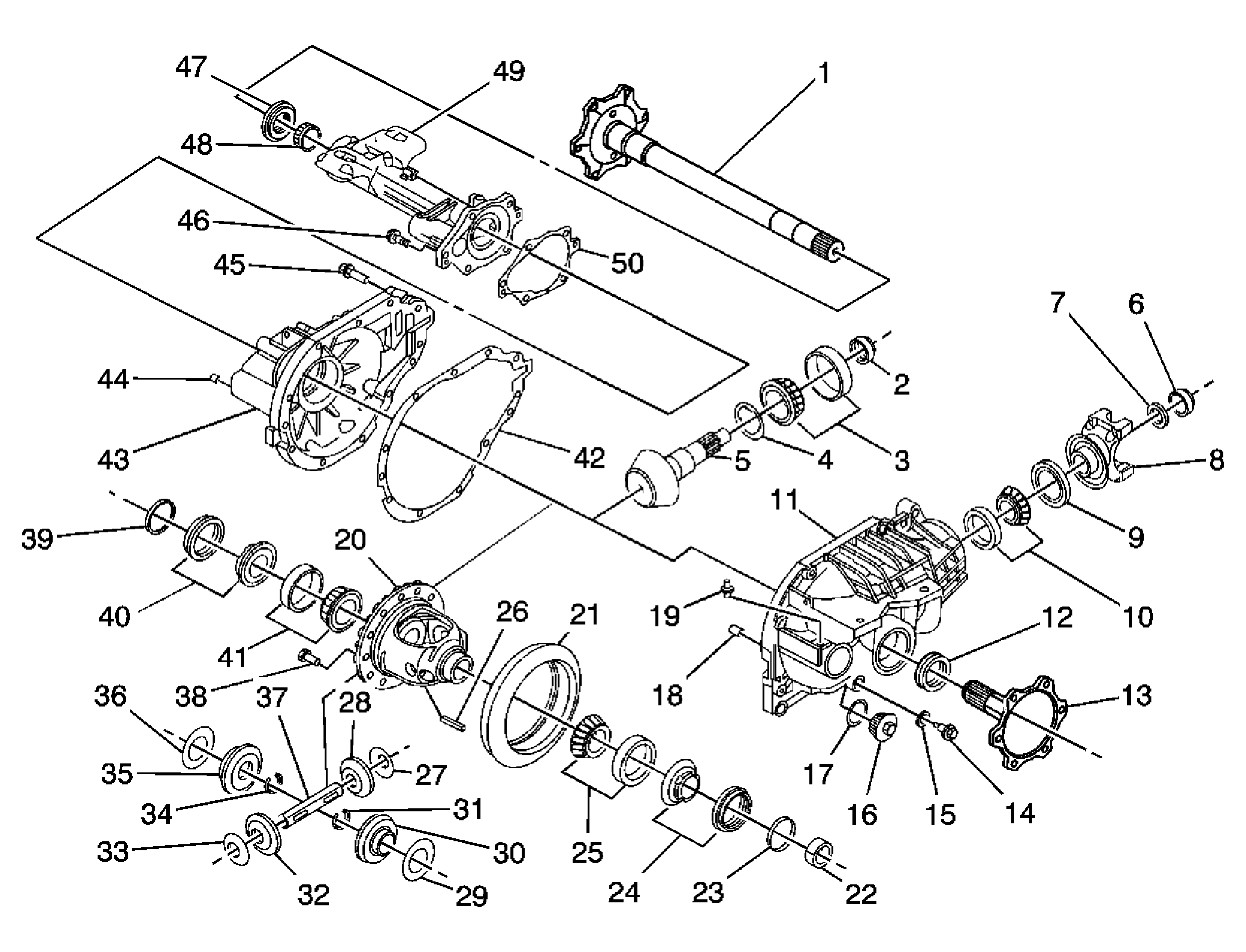

Front Drive Axle Disassembled Views (8.25 Inch (AWD))
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Output Shaft |
| 2 | Pinion Bearing Spacer |
| 3 | Pinion Head Bearing Assembly |
| 4 | Pinion Shim |
| 5 | Stem Pinion |
| 6 | Pinion Flange Nut |
| 7 | Pinion Flange Washer |
| 8 | Pinion Flange Assembly |
| 9 | Pinion Seal |
| 10 | Pinion Tail Bearing Assembly |
| 11 | Carrier Housing |
| 12 | Output Shaft Seal Assembly |
| 13 | Output Shaft |
| 14 | Drain Plug Assembly |
| 15 | Drain Plug Washer |
| 16 | Fill Plug Assembly |
| 17 | Fill Plug O-ring Seal |
| 18 | Carrier Locator Pin |
| 19 | Vent Connector |
| 20 | Differential Case |
| 21 | Ring Gear |
| 22 | Output Shaft Bearing Assembly |
| 23 | 8-Point Lock Ring |
| 24 | Sleeve and Insert Assembly |
| 25 | Differential Case Bearing Assembly |
| 26 | Differential Cross Pin Lock Pin |
| 27 | Differential Pinion Thrust Washer |
| 28 | Differential Pinion Gear |
| 29 | Differential Side Gear Thrust Washer |
| 30 | Differential Side Gear |
| 31 | Output Shaft Snap Ring |
| 32 | Differential Pinion Gear |
| 33 | Differential Pinion Thrust Washer |
| 34 | Output Shaft Snap Ring |
| 35 | Differential Side Gear |
| 36 | Differential Side Gear Thrust Washer |
| 37 | Differential Cross Pin |
| 38 | Ring Gear Bolt |
| 39 | 8-Point Lock Ring |
| 40 | Sleeve and Insert Assembly |
| 41 | Differential Case Bearing Assembly |
| 42 | Carrier Gasket |
| 43 | Carrier Cover |
| 44 | Tube Locator Pin |
| 45 | Carrier Bolt |
| 46 | Tube Bolt |
| 47 | Output Shaft Seal |
| 48 | Output Shaft Bearing Assembly |
| 49 | Tube |
| 50 | Tube Gasket |
