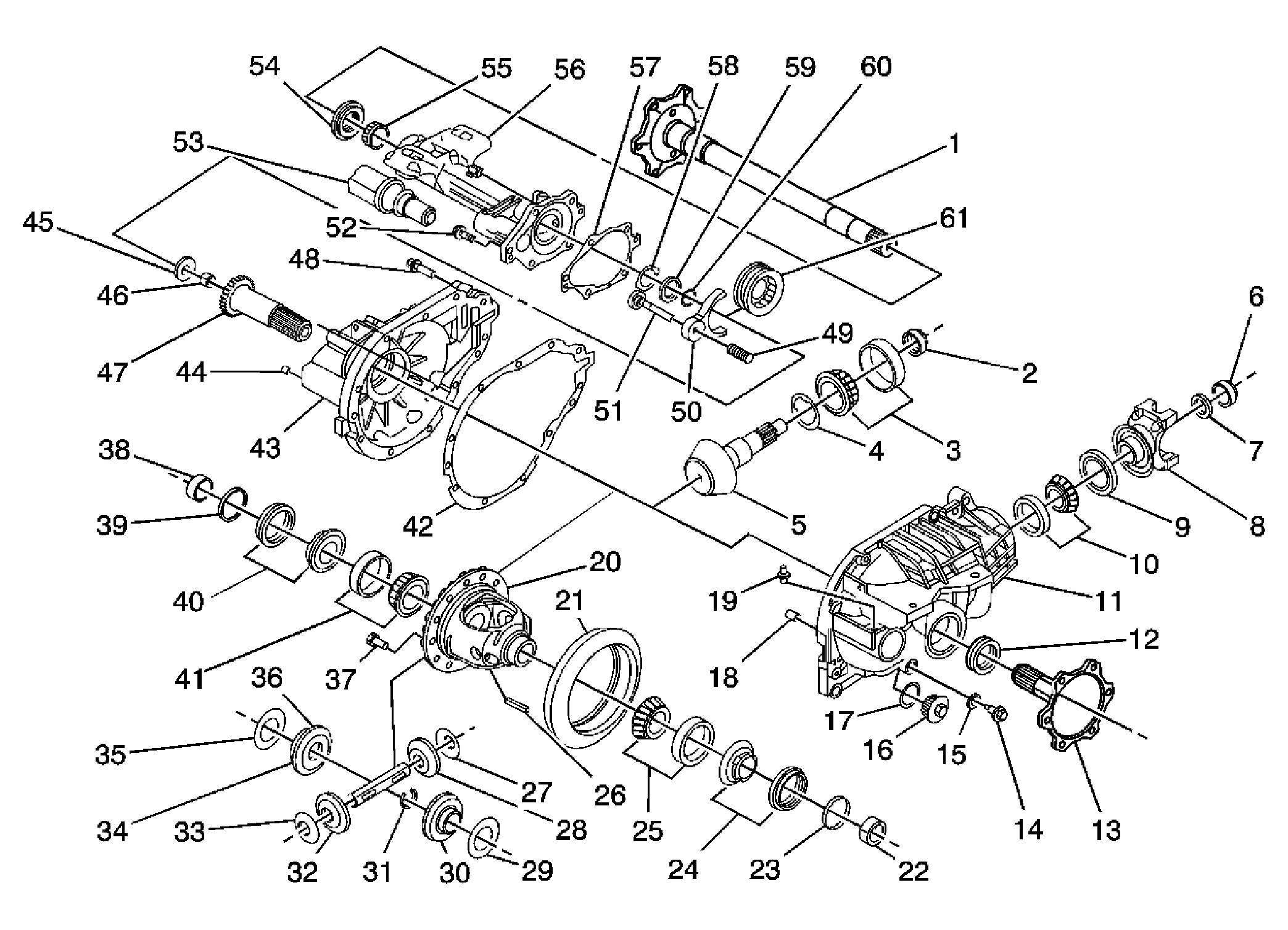

Front Drive Axle Disassembled Views (8.25 Inch (4WD/Front))
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Output Shaft |
| 2 | Pinion Bearing Spacer |
| 3 | Pinion Head Bearing Assembly |
| 4 | Pinion Shim |
| 5 | Stem Pinion |
| 6 | Pinion Flange Nut |
| 7 | Pinion Flange Washer |
| 8 | Pinion Flange Assembly |
| 9 | Pinion Seal |
| 10 | Pinion Tail Bearing Assembly |
| 11 | Carrier Housing |
| 12 | Output Shaft Seal Assembly |
| 13 | Output Shaft |
| 14 | Drain Plug Assembly |
| 15 | Drain Plug Washer |
| 16 | Fill Plug Assembly |
| 17 | Fill Plug O-ring Seal |
| 18 | Carrier Locator Pin |
| 19 | Vent Connector |
| 20 | Differential Case |
| 21 | Ring Gear |
| 22 | Output Shaft Bearing Assembly |
| 23 | 8-Point Lock Ring |
| 24 | Sleeve and Insert Assembly |
| 25 | Differential Side Bearing Assembly |
| 26 | Differential Cross Pin Lock |
| 27 | Differential Pinion Thrust Washer |
| 28 | Differential Pinion Gear |
| 29 | Differential Side Gear Washer |
| 30 | Differential Side Gear |
| 31 | Output Shaft Snap Ring |
| 32 | Differential Pinion Gear |
| 33 | Differential Pinion Gear Thrust Washer |
| 34 | Differential Side Gear |
| 35 | Differential Side Gear Washer |
| 36 | Differential Cross Pin |
| 37 | Ring Gear Bolt |
| 38 | Output Shaft Bearing Assembly |
| 39 | 8-Point Lock Ring |
| 40 | Sleeve and Insert Assembly |
| 41 | Differential Side Bearing Assembly |
| 42 | Carrier Gasket |
| 43 | Carrier Cover |
| 44 | Tube Locator Pin |
| 45 | Inner Output Shaft Thrust Washer |
| 46 | Inner Output Shaft Bearing Assembly |
| 47 | Inner Output Shaft |
| 48 | Carrier Bolt |
| 49 | Shifter Spring |
| 50 | Shifter Fork |
| 51 | Shifter Fork Rod |
| 52 | Tube Bolt |
| 53 | Shift Actuator Assembly |
| 54 | Output Shaft Seal Assembly |
| 55 | Output Shaft Bearing Assembly |
| 56 | Tube |
| 57 | Tube Gasket |
| 58 | Output Shaft Locator Thrust Washer |
| 59 | Output Shaft Thrust Washer |
| 60 | Output Shaft Snap Ring |
| 61 | Shifter Sleeve |
