Battery Cooling Air Outlet Duct Replacement

WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

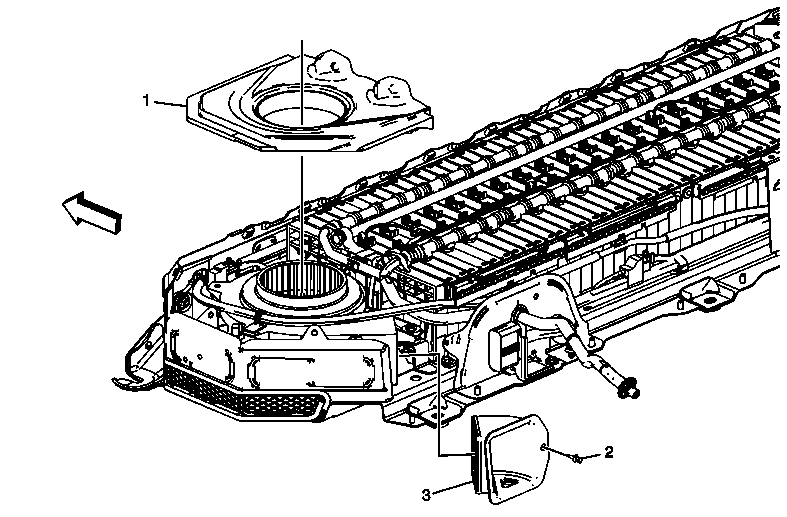

Fig 1: View Of Battery Cooling Air Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Always perform the High Voltage Disabling procedure prior to servicing any High Voltage component or connection. Personal Protection Equipment (PPE) and proper procedures must be followed. The High Voltage Disabling procedure will perform the following tasks: Identify how to disable high voltage. Identify how to test for the presence of high voltage. Identify condition under which high voltage is always present and personal protection equipment (PPE) and proper procedures must be followed. Failure to follow the procedures exactly as written may result in serious injury or death. Preliminary Procedures: Disable the high voltage at the drive motor generator battery. Refer to High Voltage Disabling . Remove the upper cover. Refer to Drive Motor Battery Case Upper Cover, Front Cover, and Right Side Cover Replacement .
1	Battery Cooling Air Outlet Duct Tip: Tilt the duct from left side to ease removal.
2	Drive Motor Generator Battery Cooling Outlet Duct Retainer
3	Drive Motor Generator Battery Cooling Outlet Duct Procedure:: After outlet duct has been replaced, enable the HV system. Refer to High Voltage Enabling .
