Transfer Case Identification

WARNING: This page is about a different car, the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Transfer Case Identification

Courtesy of GENERAL MOTORS CORP.

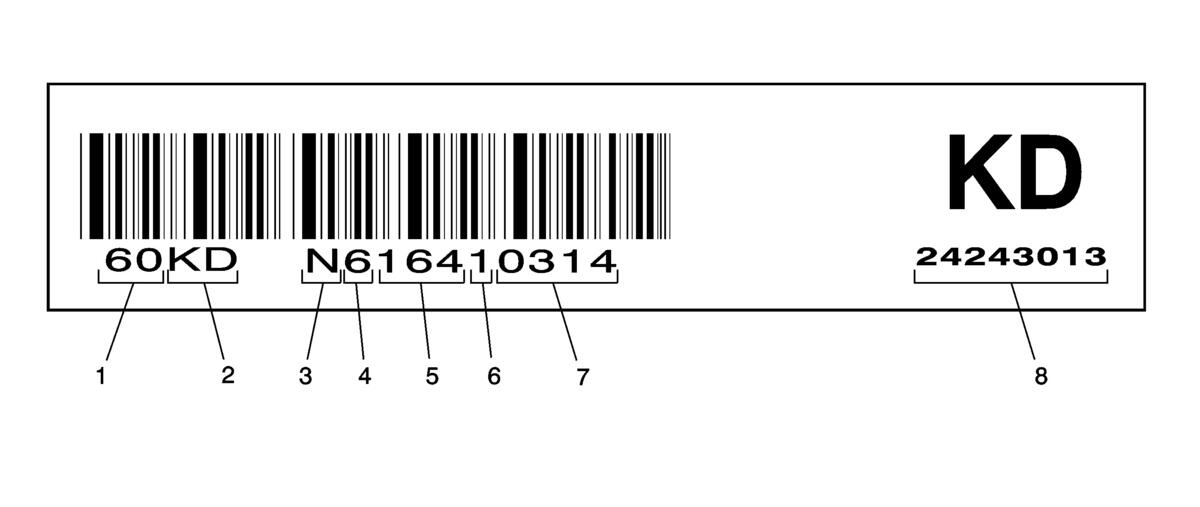

Fig 2: Magna Transfer Case Bar Code Label

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Component Identifier
2	GM Broadcast Code
3	Supplier Code
4	Production Year
5	Julian Date of the Year
6	Assembly Line Number
7	Sequential Number
