Removal Procedure

WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Use care when handling the mass air flow (MAF)/intake air temperature (IAT) sensor. Do not dent, puncture, or otherwise damage the honeycell located at the air inlet end of the MAF/IAT. Do not touch the sensing elements or allow anything including cleaning solvents and lubricants to come in contact with them. Use a small amount of a non-silicone based lubricant, on the air duct only, to aid in installation.

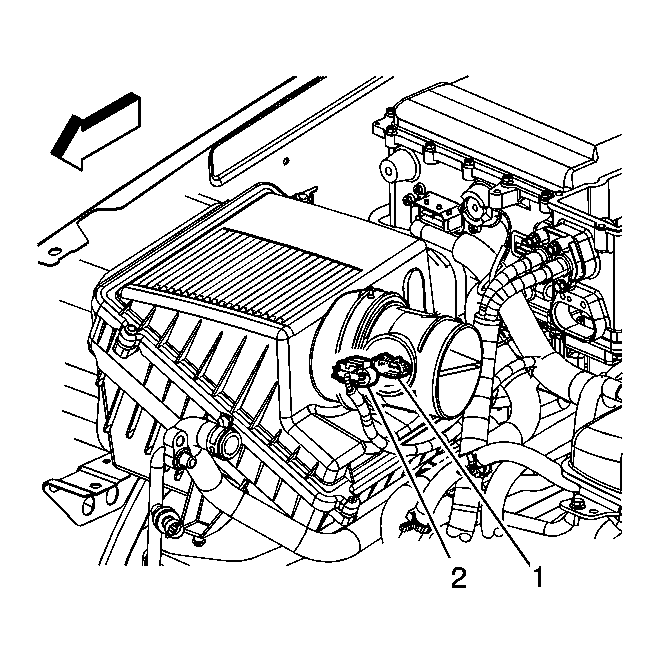

    Fig 1: View Of MAF/IAT Sensor & Engine Wiring Harness Electrical Connector
    GM1960228Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner outlet resonator. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  2. Disconnect the engine wiring harness electrical connector (2) from the MAF/IAT sensor (1).
    3. Fig 2: View Of MAF/IAT Sensor Adapter & Clamp
    GM1703691Courtesy of GENERAL MOTORS CORP.
  3. Loosen the MAF/IAT sensor adapter clamp.
  4. Remove the MAF/IAT sensor from the air cleaner assembly.
