Wiring Harness Replacement
WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

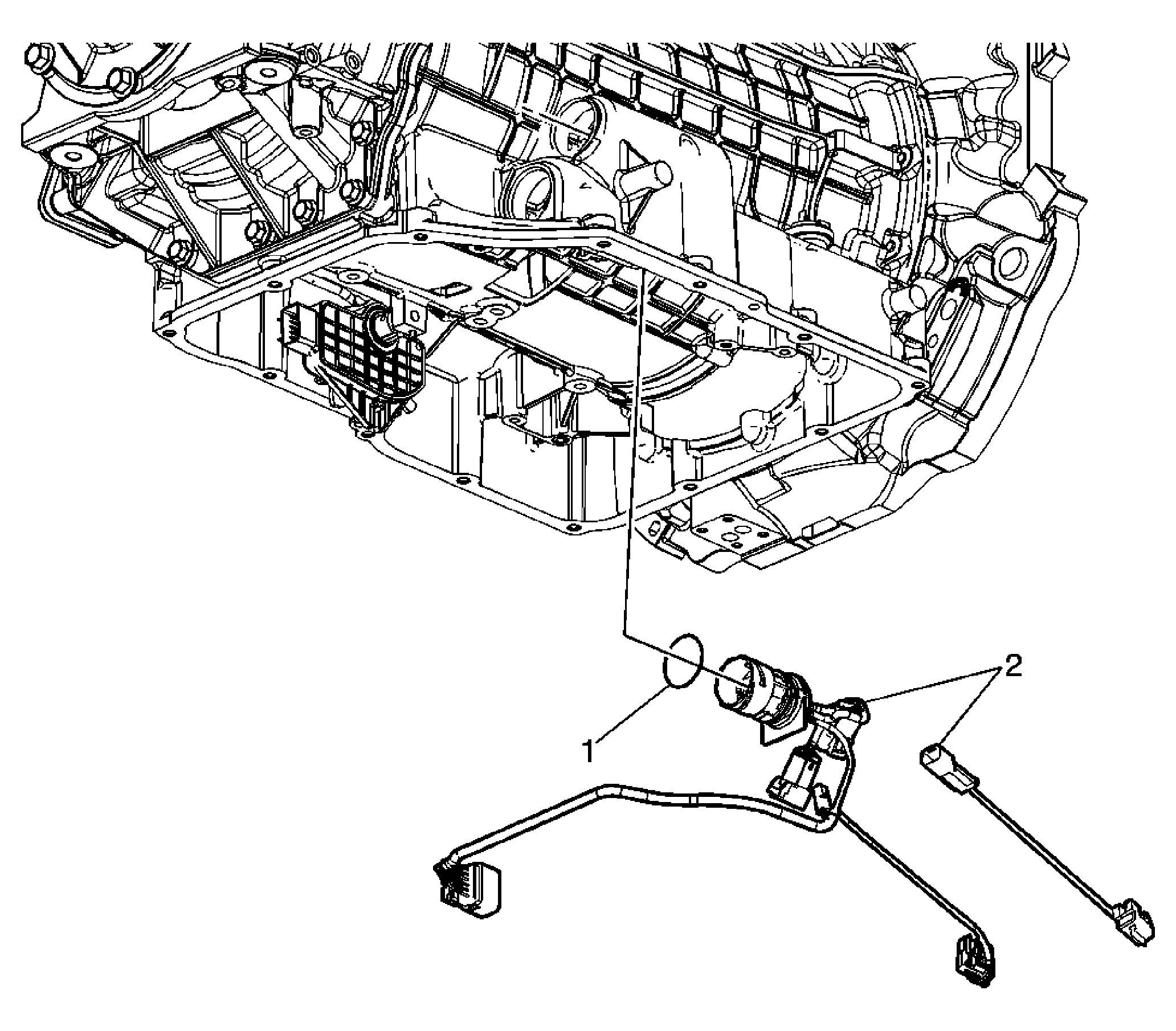

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the control valve upper body. Refer to Control Valve Upper Body Replacement . |
|
| 1 | Control Wiring Harness O-ring Seal |
| 2 | Control Wiring Harness and Extension Harness Assembly
NOTE:
Do not damage the connector ends or wires when removing the harness assembly.
|
