Output Speed Sensor Replacement
WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

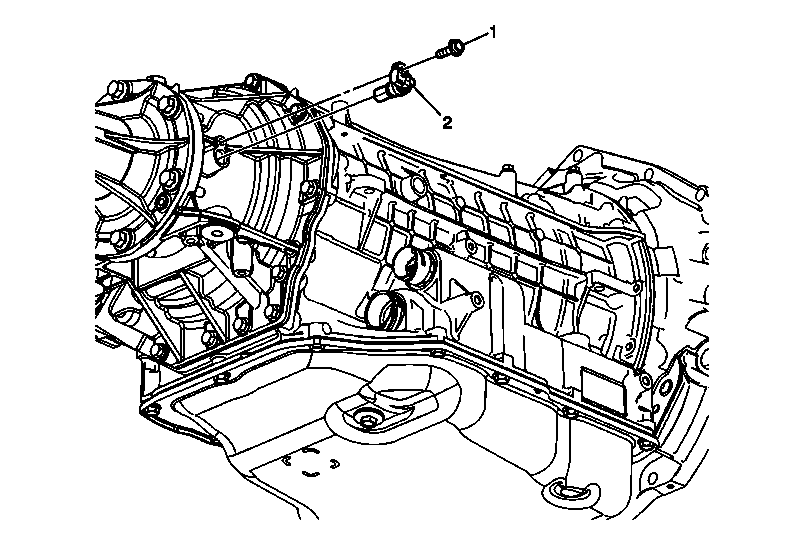

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Output Speed Sensor Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 9-13 N.m (80-115 lb in) |
| 2 | Output Speed Sensor Procedure: Disconnect the electrical connector from the output speed sensor. |
