Automatic Transmission Electronic Component Views
WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

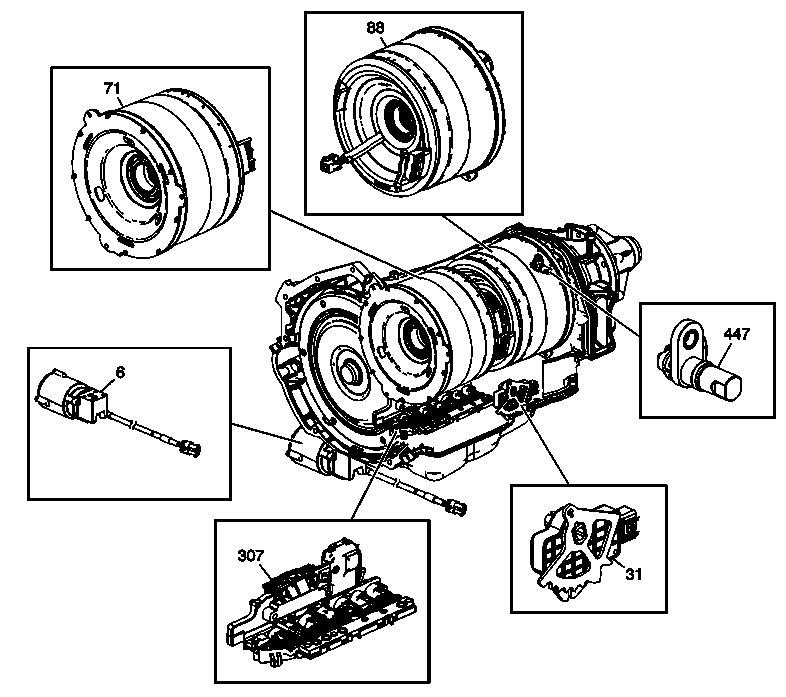

| Callout | Component Name |
|---|---|
| 6 | A/Trans Auxiliary Fluid Pump Assembly |
| 31 | A/Trans Manual Shift Shaft Position Switch Assembly |
| 71 | Drive Motor (w/Generator) Assembly - 1st Position |
| 88 | Drive Motor (w/Generator) Assembly - 2nd Position |
| 307 | Control Solenoid (w/Body and TCM) Valve Assembly |
| 447 | A/Trans Output Speed Sensor Assembly |
