Front Wheel Hub, Bearing, and Seal Replacement (1500)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

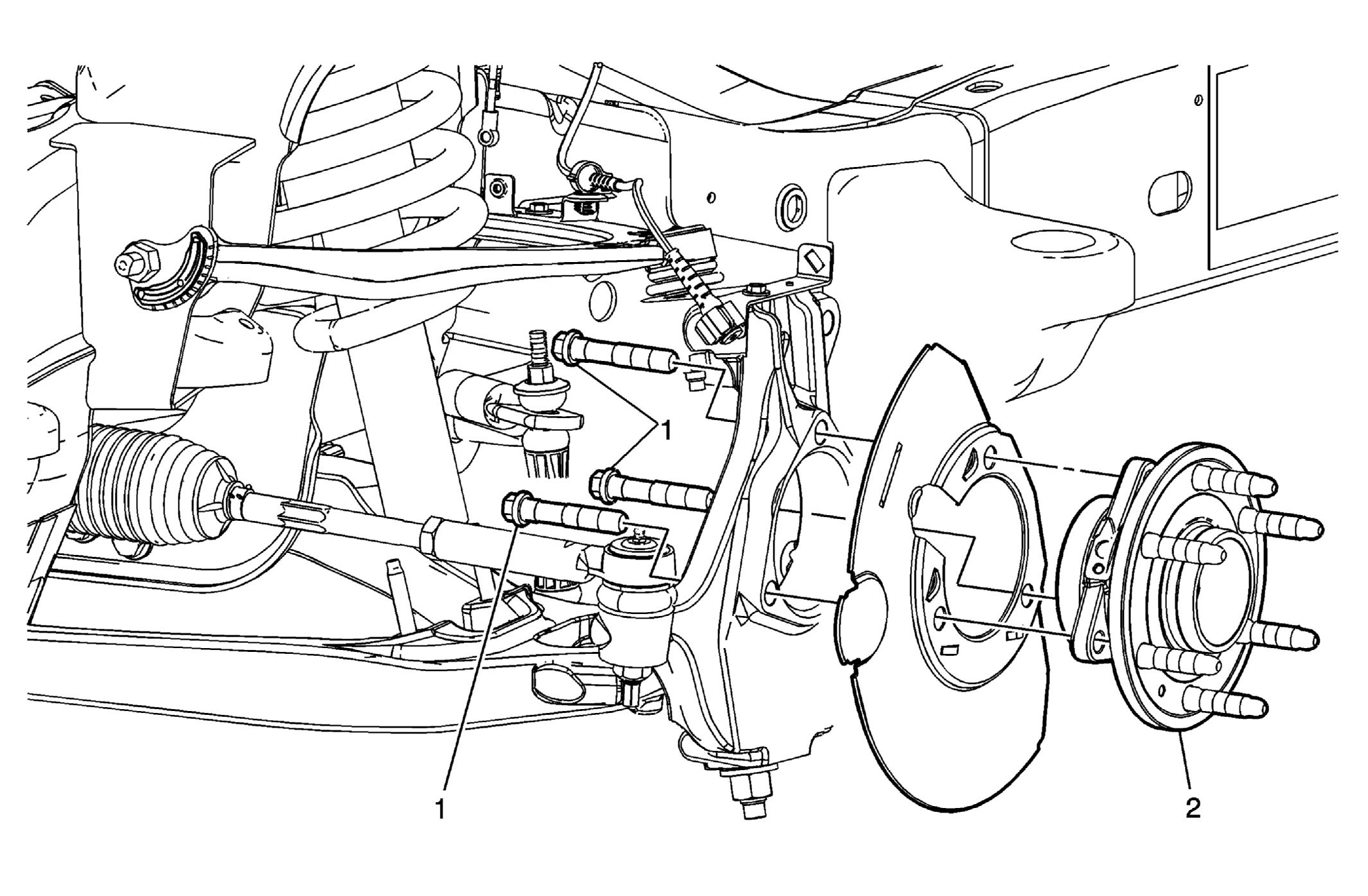

Fig 1: View Of Wheel/Bearing Hub Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the brake rotor. Refer to Front Brake Rotor Replacement (1500 Series) or Front Brake Rotor Replacement (2500 Series) . Remove the wheel speed sensor. For the Hybrid vehicles, refer to Front Wheel Speed Sensor Replacement For the non Hybrid vehilces, refer to Front Wheel Speed Sensor Replacement For vehicles equipped with 4WD, remove the wheel drive shaft from the wheel bearing and hub assembly. Refer to Wheel Drive Shaft Replacement (2500) or Wheel Drive Shaft Replacement (1500) .
1	Wheel Bearing and Hub Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 180 N.m (133 lb ft)
2	Wheel Hub and Bearing Assembly

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the brake rotor. Refer to Front Brake Rotor Replacement (1500 Series) or Front Brake Rotor Replacement (2500 Series) .
Remove the wheel speed sensor.
- For the Hybrid vehicles, refer to Front Wheel Speed Sensor Replacement
- For the non Hybrid vehilces, refer to Front Wheel Speed Sensor Replacement
For vehicles equipped with 4WD, remove the wheel drive shaft from the wheel bearing and hub assembly. Refer to Wheel Drive Shaft Replacement (2500) or Wheel Drive Shaft Replacement (1500) .

Wheel Bearing and Hub Bolt (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 180 N.m (133 lb ft)

Wheel Hub and Bearing Assembly
