Locking Differential Clutch Disc Assembly Disassemble (10.5 Inch Axle)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

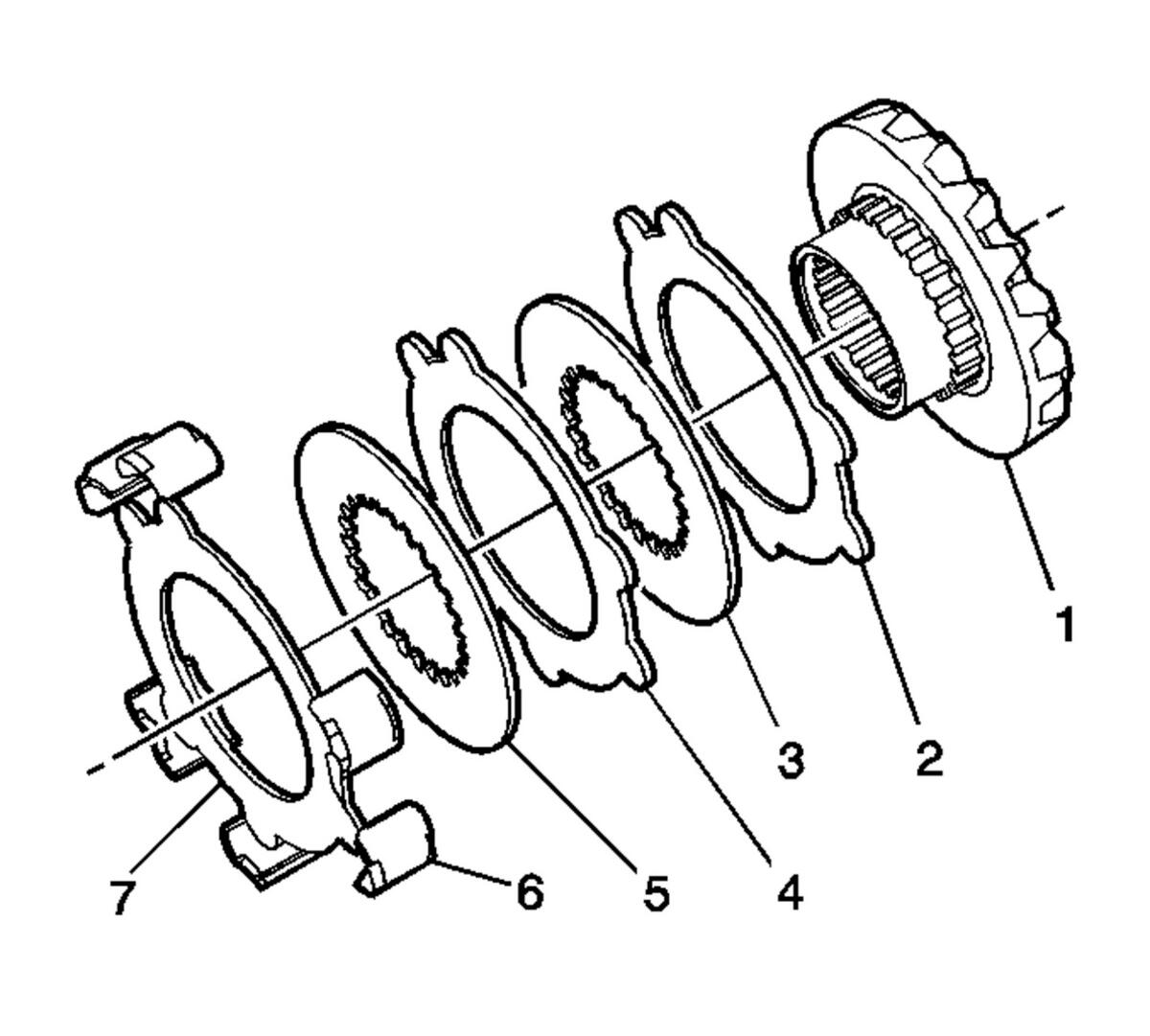

    Fig 1: View Of Locking Differential Clutch Disc Assembly (10.5 Inch Axle)
    GM797862Courtesy of GENERAL MOTORS CORP.
  1. Remove the guide clips (6).
  2. Remove the clutch discs and the splined discs (2-5, 7) from the locking differential side gear (1).
