Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the differential assembly. Refer to Differential Replacement (10.5 Inch Axle) or Differential Replacement (8.6 Inch Axle) .
Remove the drive pinion from the axle. Refer to Drive Pinion and Ring Gear Replacement (10.5 Inch Axle) or Drive Pinion and Ring Gear Replacement (8.6 Inch Axle) .

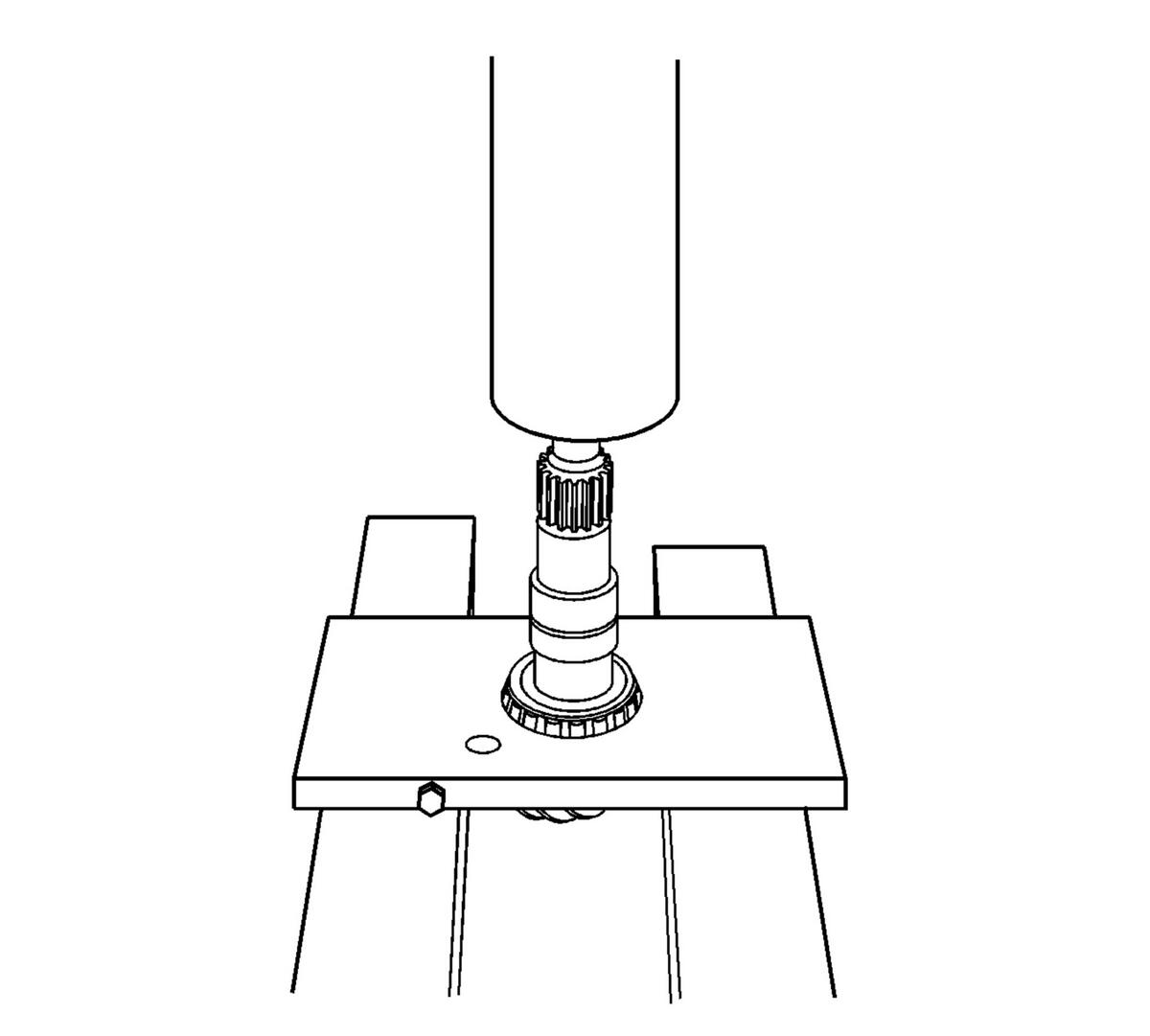

Fig 1: View of DT-47688, Press & Bearing

Courtesy of GENERAL MOTORS CORP.

Using the DT-47688 and a press, remove the bearing from the drive pinion.
Remove the shim.

Fig 2: View Of Outer Pinion Bearing Cup

Courtesy of GENERAL MOTORS CORP.

Remove the outer pinion bearing cup from the axle housing using a hammer and a brass drift in the slots provided. Move the drift back and forth between one side of the cup and the other in order to work the cups out of the housing evenly.

Fig 3: View Of Inner Pinion Bearing Cup

Courtesy of GENERAL MOTORS CORP.

Remove the inner pinion bearing cup from the axle housing using a hammer and a brass drift in the slots provided. Move the drift back and forth between one side of the cup and the other in order to work the cups out of the housing evenly.
