Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the buckle and the latch to the seat frame.
    2. Fig 1: View Of No. 2 Rear Seat Belt Buckle (60/40 Split - 50/50 Split)
    GM768629Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the buckle bolts.

    Tighten:  Tighten the bolts to 55 N.m (41 lb ft).

  3. Connect the seat cushion cover by joining the cushion trim J-strips.
    4. Fig 2: View Of Handle Mounting Screws
    GM768627Courtesy of GENERAL MOTORS CORP.
  4. Install the handle mounting screws (1).

    Tighten:  Tighten the screws to 7 N.m (61 lb in).

  5. Install the seat back frame. Refer to Rear Seat Back Cushion Frame Replacement .
    6. Fig 3: View Of Seatbelt Retractor Bolt Cover & Mounting Bolts
    GM768626Courtesy of GENERAL MOTORS CORP.
  6. Install the retractor mounting bolt (2).

    Tighten:  Tighten the bolt to 55 N.m (410 lb ft).

  7. Install the seatbelt retractor bolt cover (1).
  8. Install the seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement .
  9. Install the headrests. Refer to Head Restraint Replacement .

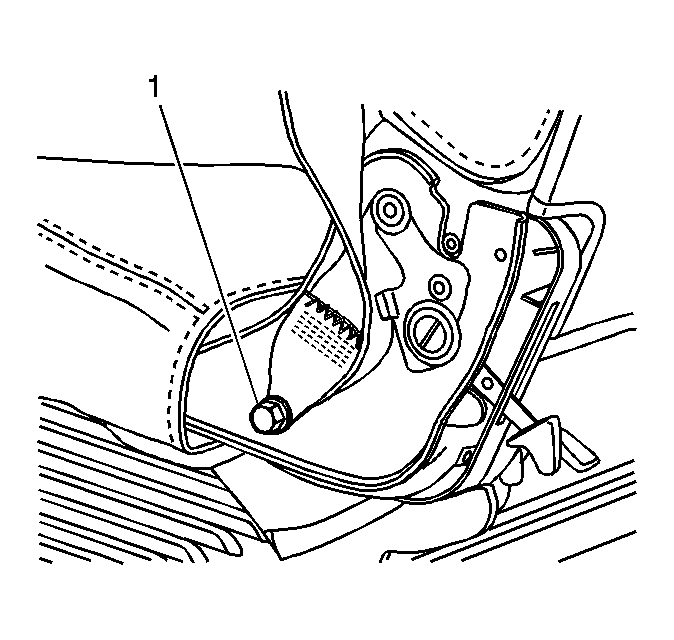

    10. Fig 4: View Of Seat Belt Anchor Bolt (60/40 Split - 50/50 Split)
    GM768625Courtesy of GENERAL MOTORS CORP.
  10. Install the seat belt anchor screw (1) to the cushion frame.

    Tighten:  Tighten the bolt to 55 N.m (41 lb ft).

    11. Fig 5: View Of Latch Cover
    GM768624Courtesy of GENERAL MOTORS CORP.
  11. Install the latch cover (1) to the seat.

    Tighten:  Tighten the screw to 2 N.m (18 lb in).

  12. In order to secure the seat back, manually rotate the center latch. Rotate the latch until the seat back clicks into position.
  13. Install the seat to the vehicle. Refer to Rear Number 2 Seat Replacement .
