Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Fuel Pump Flow Control Module & Bolts
    GM1911342Courtesy of GENERAL MOTORS CORP.
  1. Position the fuel pump flow control module (2) to the vehicle.
  2. Slide the fuel pump flow control module towards the driver side of the vehicle.
    3. NOTE: Refer to Fastener Notice .
  3. Tighten the fuel pump flow control module bolts (1).

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

    4. Fig 2: Chassis Wiring Harness Electrical Connector
    GM1911337Courtesy of GENERAL MOTORS CORP.
  4. Connect the chassis wiring harness electrical connector (1) to the fuel pump flow control module.

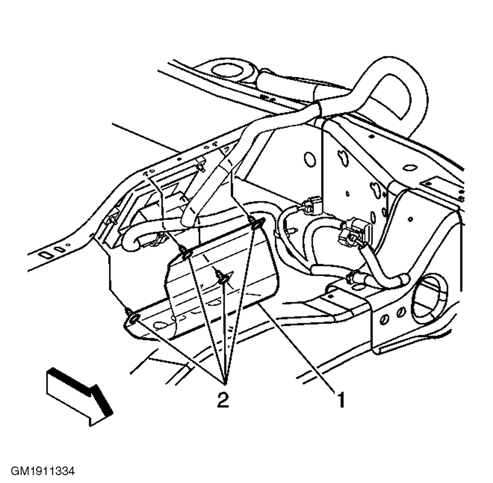

    5. Fig 3: Fuel Pump Flow Control Module Cover & Retainers
    GM1911334Courtesy of GENERAL MOTORS CORP.
  5. Position the fuel pump flow control module cover (1) over the module.
  6. Install the fuel pump flow control module cover retainers (2) to the frame.
  7. Lower the vehicle.
  8. Program the fuel pump flow control module. Refer to Control Module References .
