Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

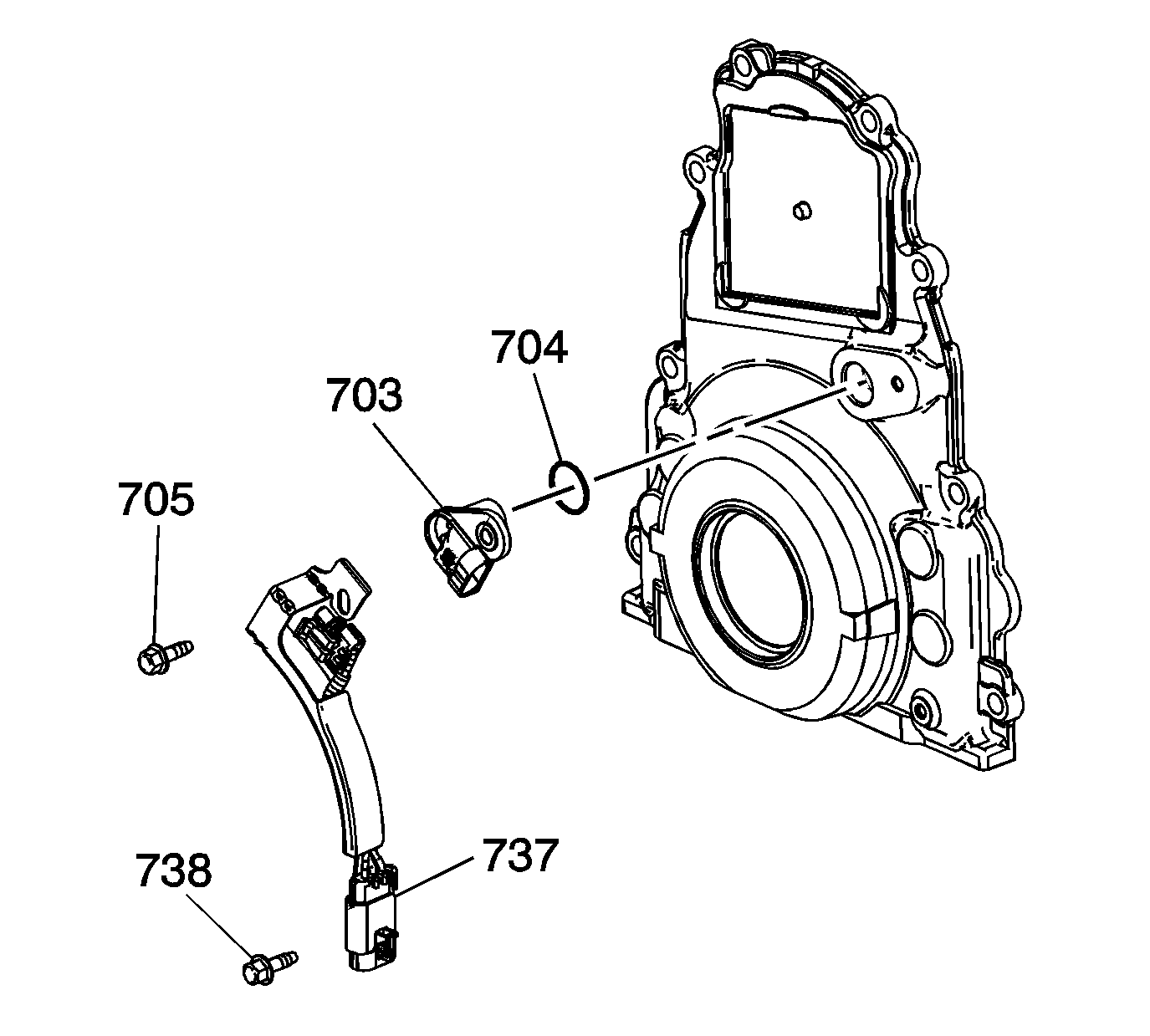

    Fig 1: O-Ring Seal, Sensor, Wire Harness & Bolts
    GM1402111Courtesy of GENERAL MOTORS CORP.
  1. Inspect the CMP O-ring seal for cuts or damage. If the seal is not cut or damaged, it may be used again.
  2. Lubricate the O-ring seal with clean engine oil.
  3. Install the O-ring seal (704) onto the sensor.
  4. Instal the CMP sensor (703) to the front cover.
  5. Install the CMP sensor wire harness (737).
    6. NOTE: Refer to Fastener Notice .
  6. Install the CMP sensor wire harness bolts (705, and 738).

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).

    7. Fig 2: View Of Electrical Connector, Cable Channel Bolt & Pin
    GM1697734Courtesy of GENERAL MOTORS CORP.
  7. Connect the engine wiring harness electrical connector (1) to the CMP sensor wire harness.
  8. Lower the vehicle.
