Assist Step Replacement (Z71)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

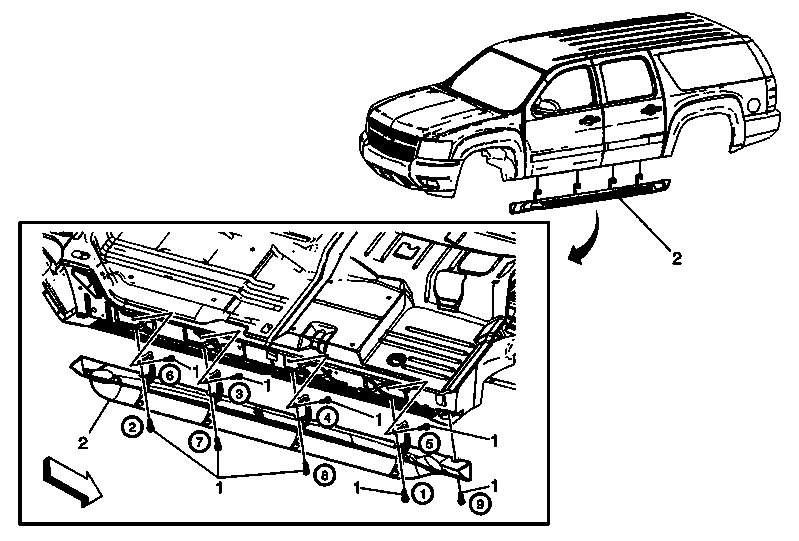

Fig 1: View Of Assist Step & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Assist Step Bolt (Qty: 9) NOTE: Refer to Fastener Notice . Tighten: 23 N.m (17 lb ft) Tip: Suburban shown, other models similar. Assemble the assist step completely before installing to the vehicle. Torque bolts in the sequence shown.
2	Assist Step Assembly

Callout

Component Name

Assist Step Bolt (Qty: 9)

NOTE: Refer to Fastener Notice .

Tighten: 23 N.m (17 lb ft)

Tip:

Suburban shown, other models similar.
Assemble the assist step completely before installing to the vehicle.
Torque bolts in the sequence shown.

Assist Step Assembly
