Assist Step Replacement (GMC Denali XL)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

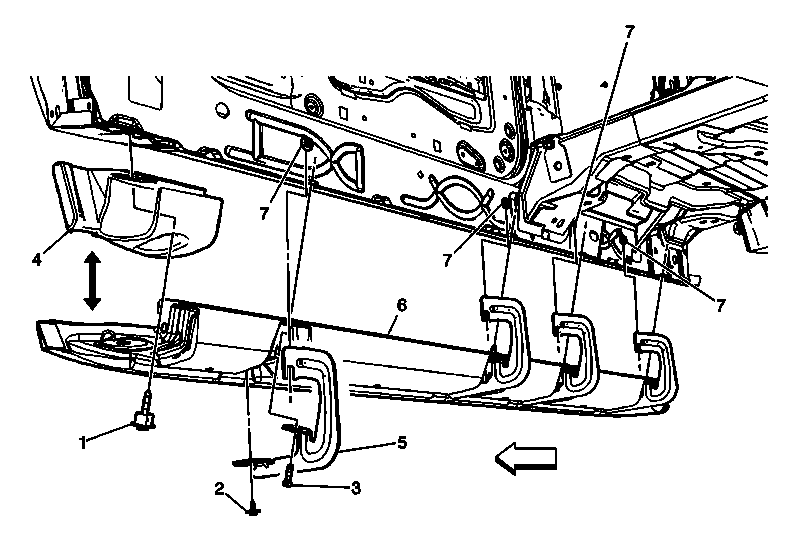

| Callout | Component Name |
|---|---|
| 1 | Assist Step Front (RH) Extension Bolt with Compression Limiter
NOTE:
Refer to Fastener Notice
.
Tighten: 6 N.m (53 lb in) |
| 2 | Assist Step Support Bolt (Qty: 4) Tighten: 6 N.m (53 lb in) |
| 3 | Assist Step Support Bracket Bolt (Qty: 4) Tighten: 6 N.m (53 lb in) |
| 4 | Assist Step Front (RH) Extension |
| 5 | Assist Step Bracket (Qty: 4) Tip: Assemble all of the brackets to the assist step prior to hanging the assist step brackets to the lower rocker panel studs. |
| 6 | Assist (RH) Step Tip: Right hand assist step shown, left hand side similar. |
| 7 | Rocker Panel Stud Nut (Qty: 4) Tighten: 6 N.m (53 lb in) |
