Instrument Panel Electrical Center or Junction Block Replacement - Left Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

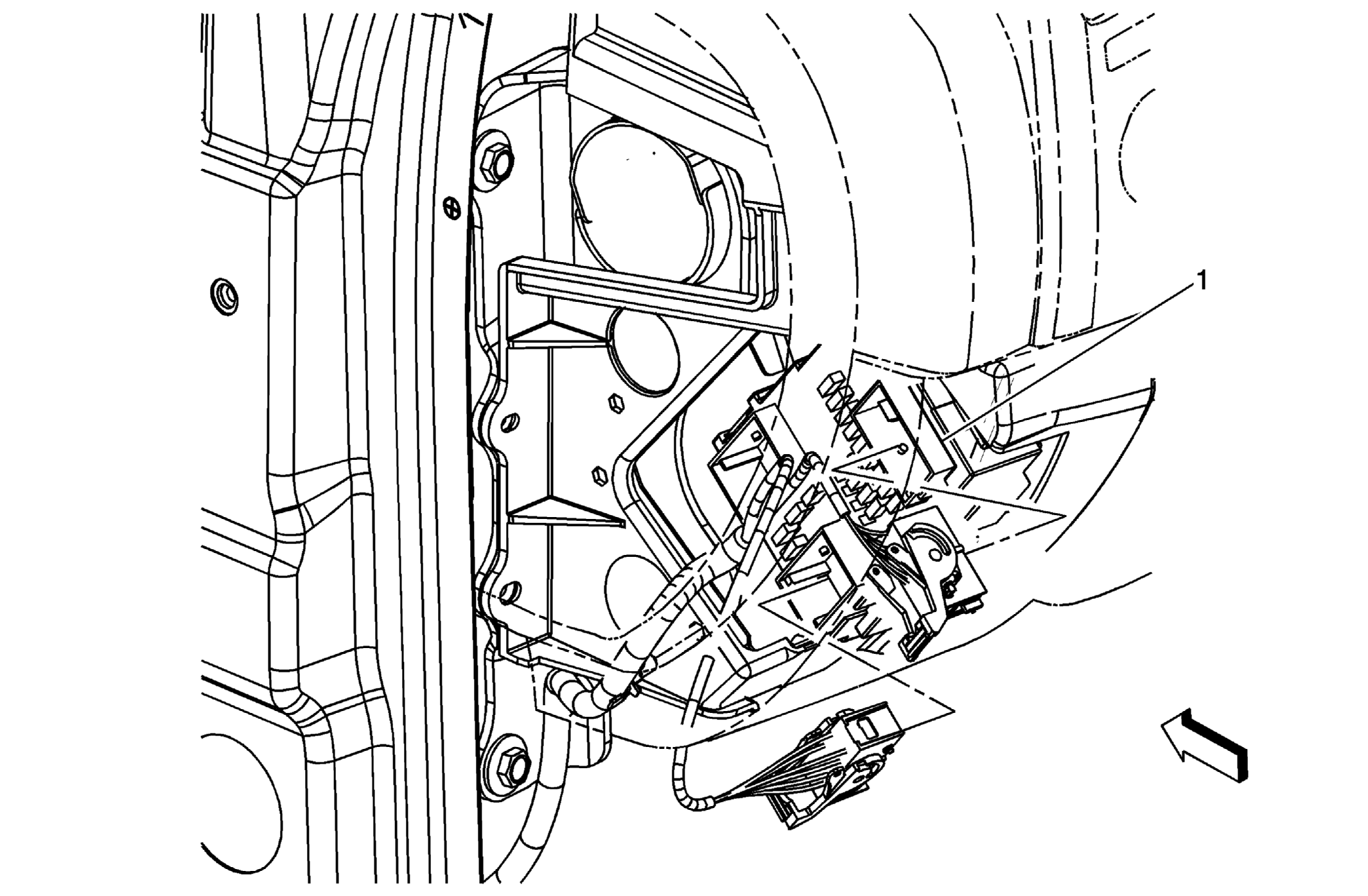

Fig 1: View Of Left I/P Electrical Center/Junction Block

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel (I/P) knee bolster. Refer to Knee Bolster Replacement (Except Cadillac) or Knee Bolster Replacement (Cadillac) .
1	Left I/P Electrical Center/Junction Block Procedure Disconnect all electrical connections. Release the plastic retaining tab to loosen the electrical center and maneuver out of I/P area.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel (I/P) knee bolster. Refer to Knee Bolster Replacement (Except Cadillac) or Knee Bolster Replacement (Cadillac) .

Left I/P Electrical Center/Junction Block

Procedure

Disconnect all electrical connections.
Release the plastic retaining tab to loosen the electrical center and maneuver out of I/P area.
