Engine Cooling Fan Replacement (HP2)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

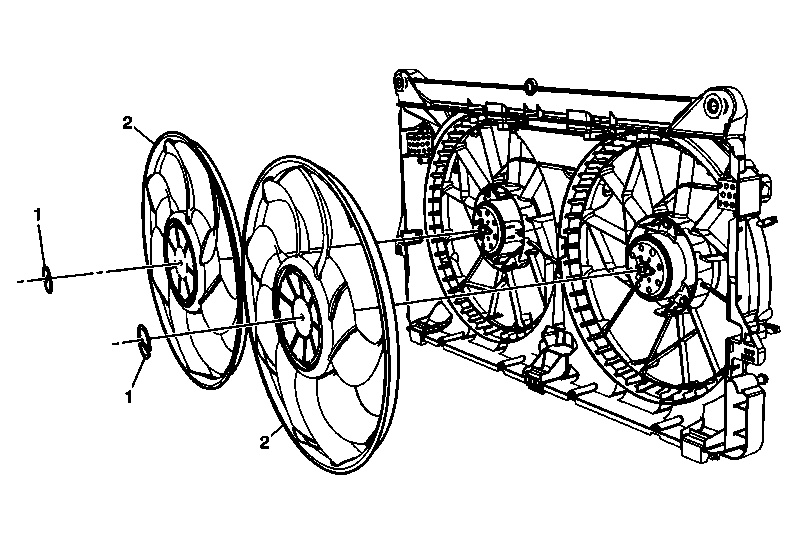

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement (Non-HP2) or Cooling Fan and Shroud Replacement (HP2) |
|
| 1 | Cooling fan blade retainers (Qty: 2) |
| 2 | Cooling fan blades. |
