Door Lock/Indicator Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

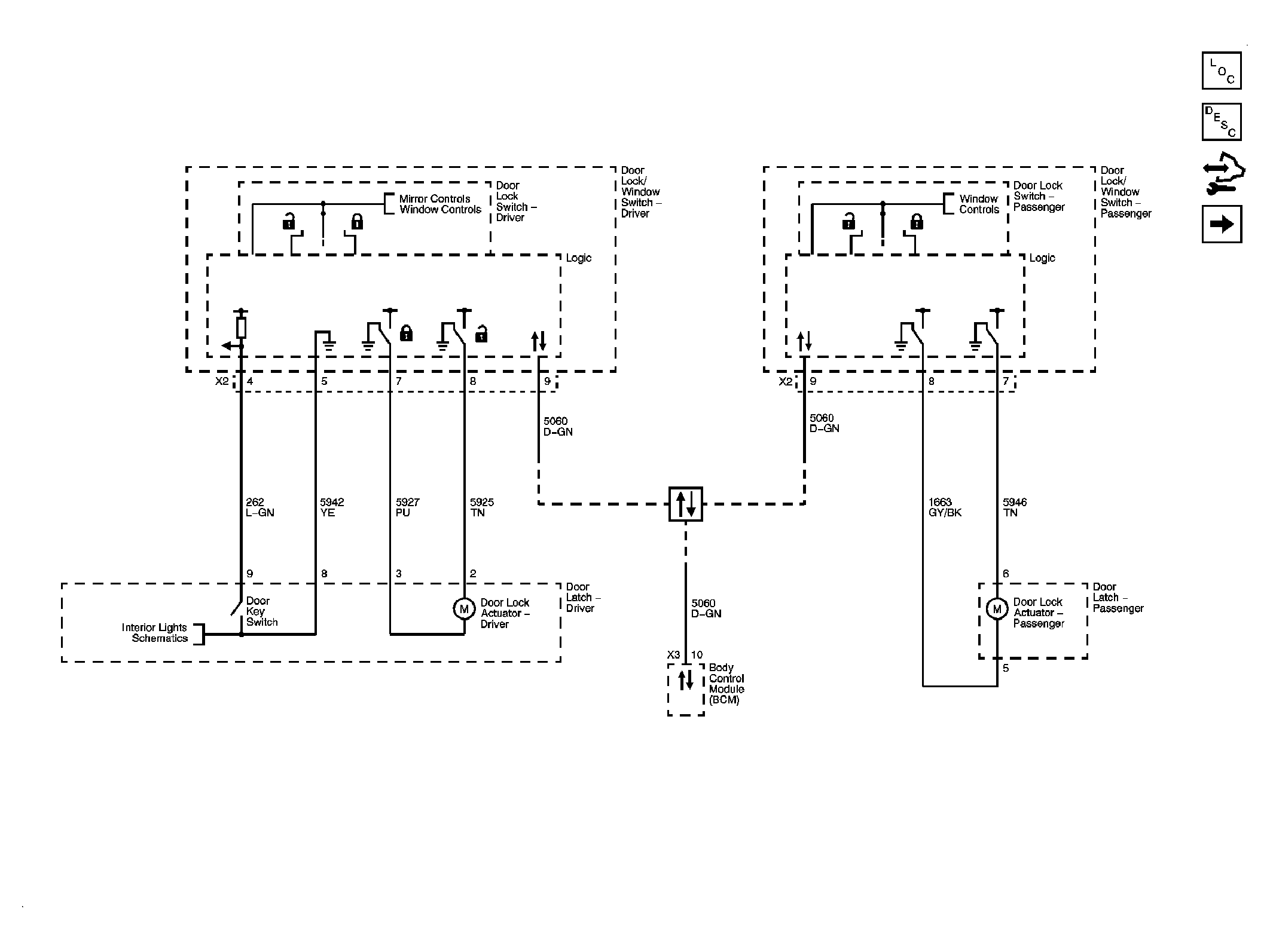

Fig 1: Front
GM1907209Courtesy of GENERAL MOTORS CORP.

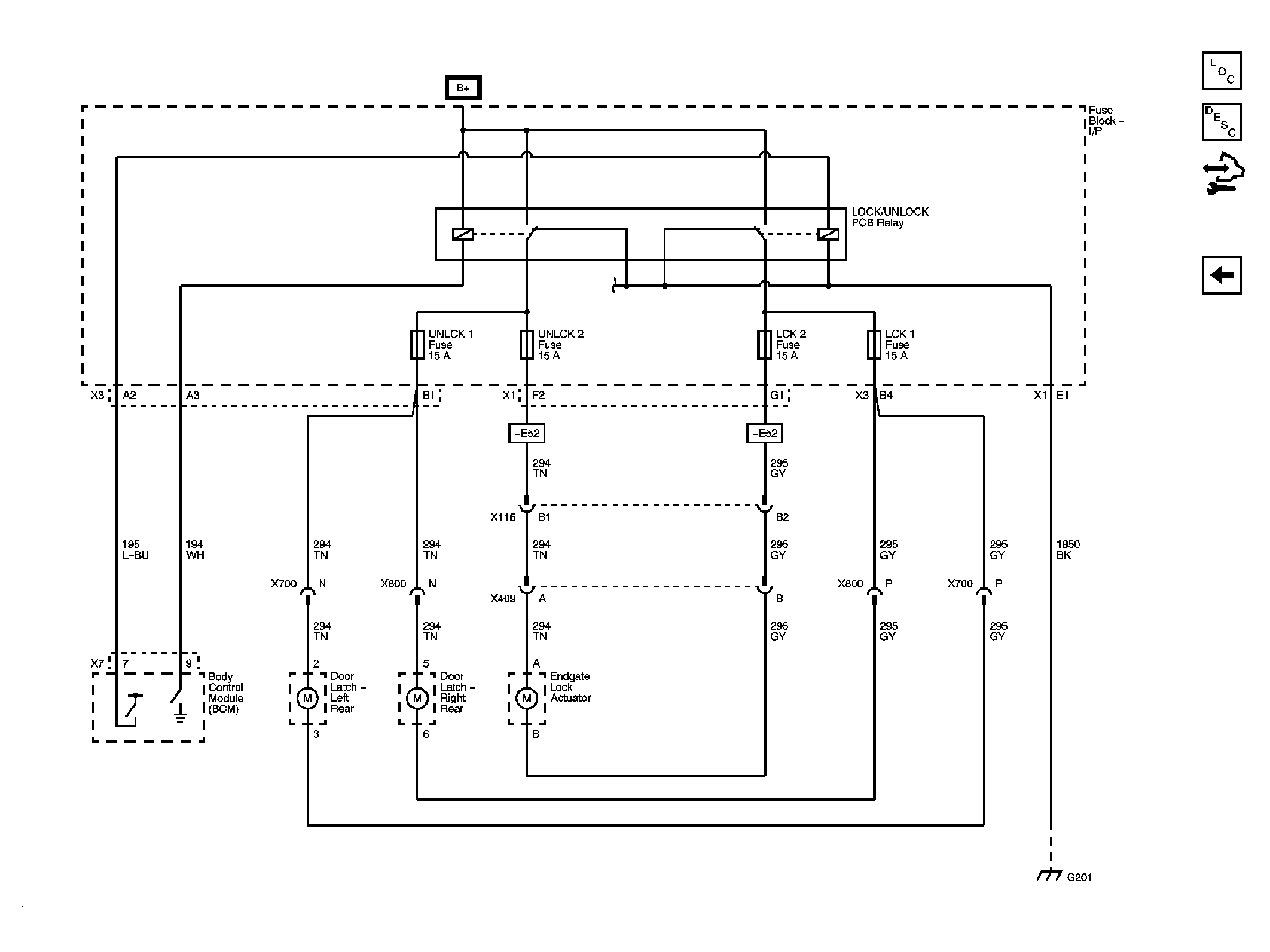

Fig 2: Rear
GM1907211Courtesy of GENERAL MOTORS CORP.
