Moveable Window Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

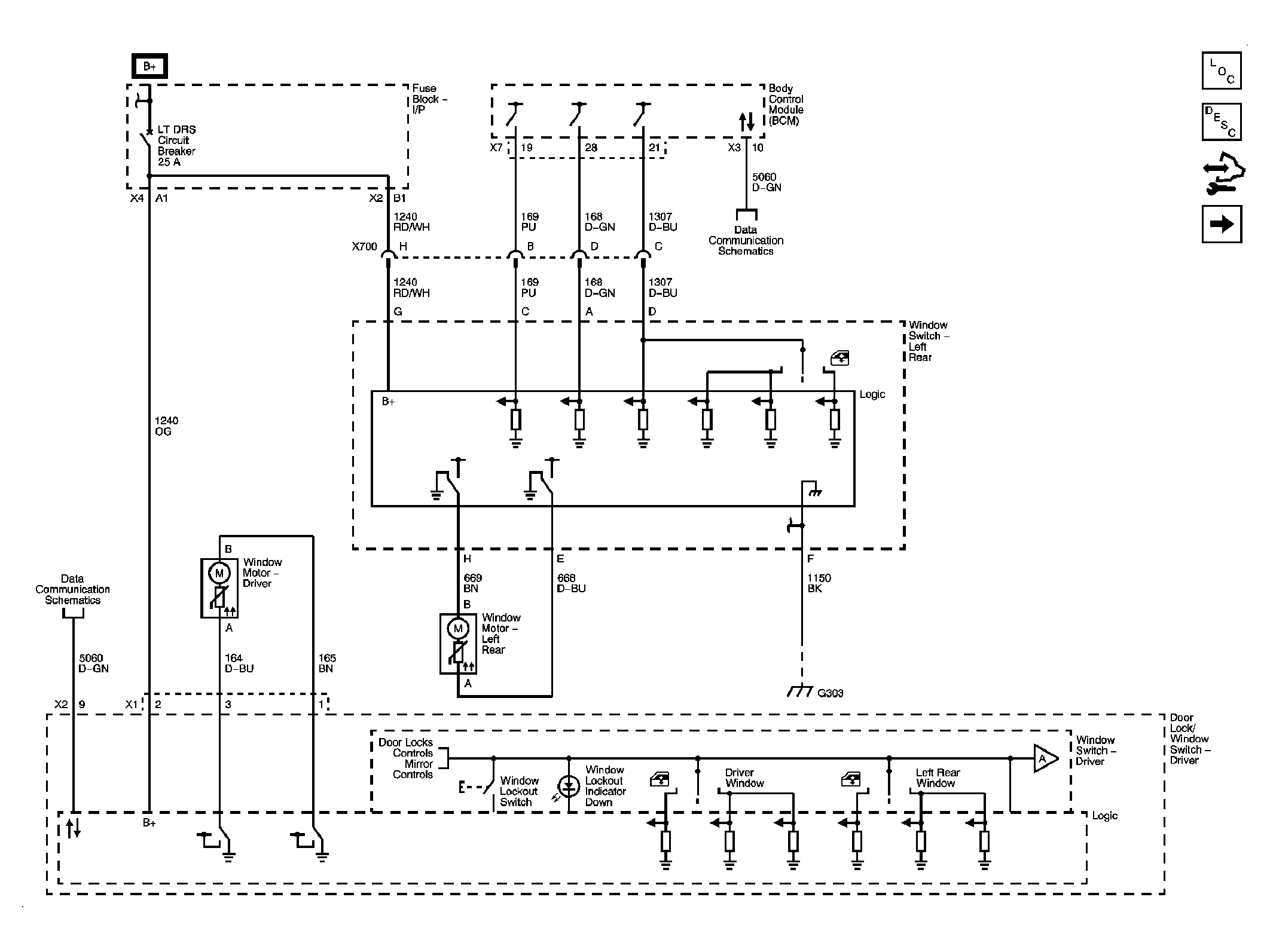

Fig 1: Left Moveable Window Schematic
GM1907213Courtesy of GENERAL MOTORS CORP.

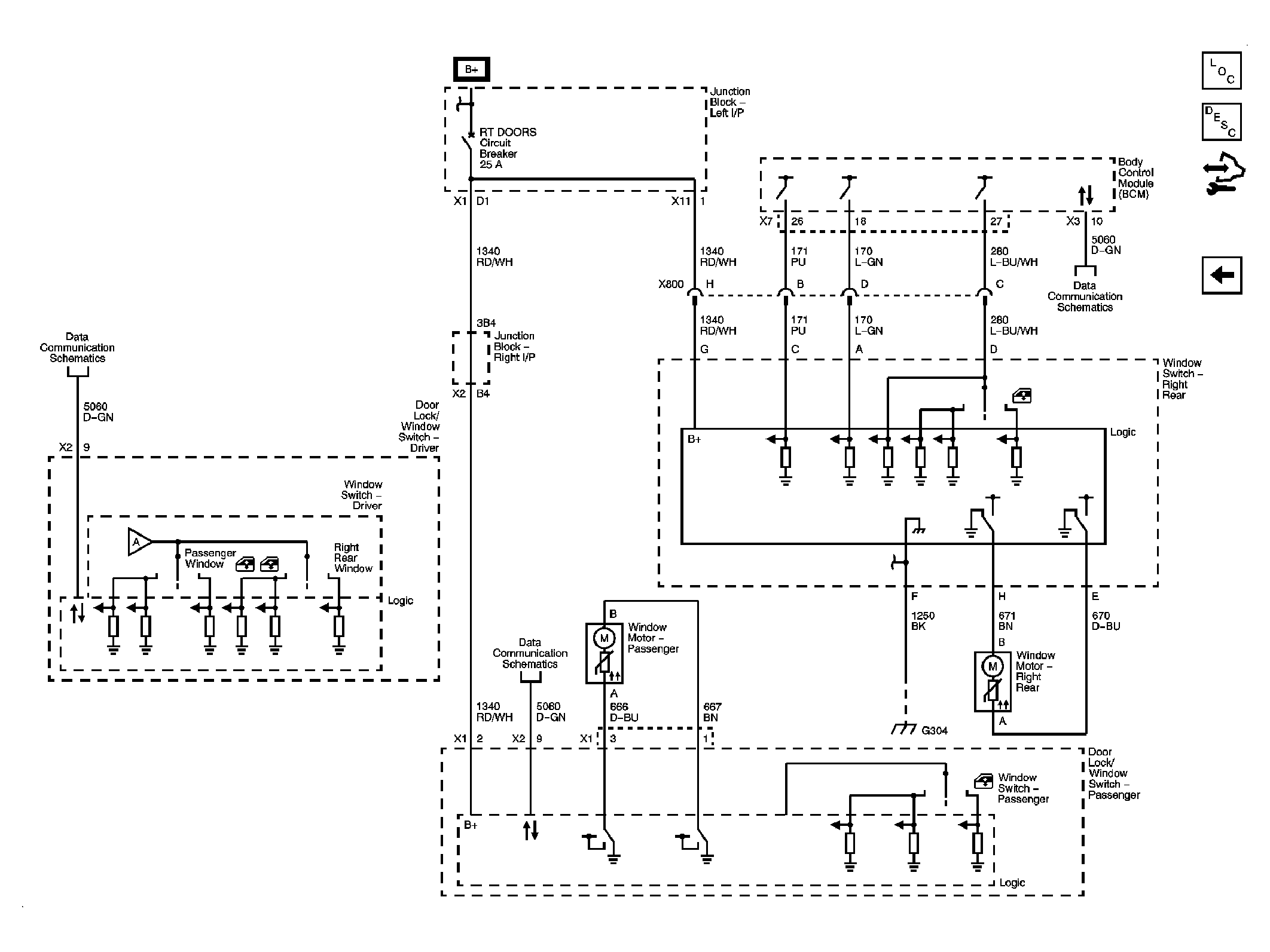

Fig 2: Right Moveable Window Schematic
GM1907215Courtesy of GENERAL MOTORS CORP.
