Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

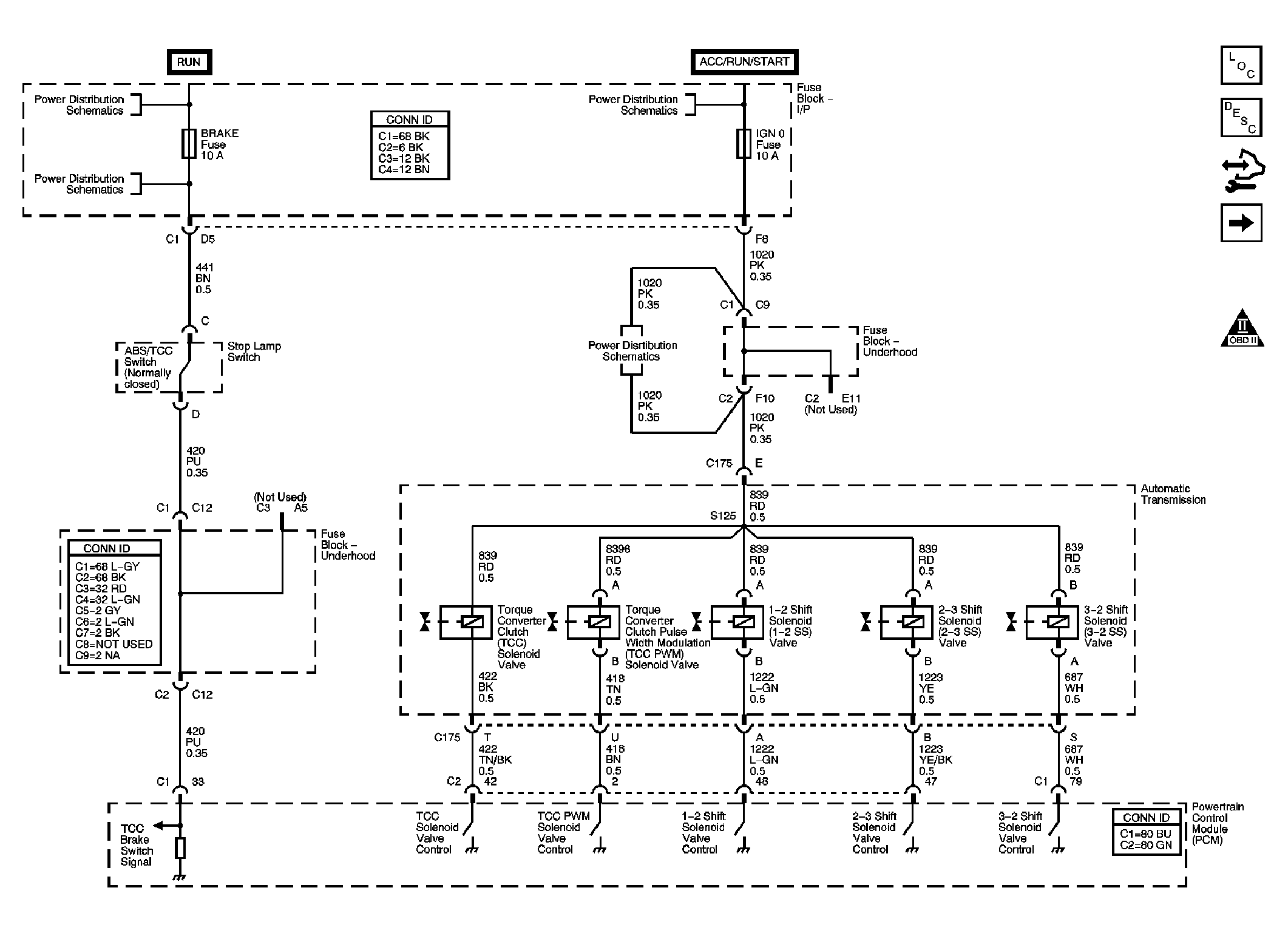

Fig 1: Shift Controls and Stop Lamp Switch Schematic

Courtesy of GENERAL MOTORS CORP.

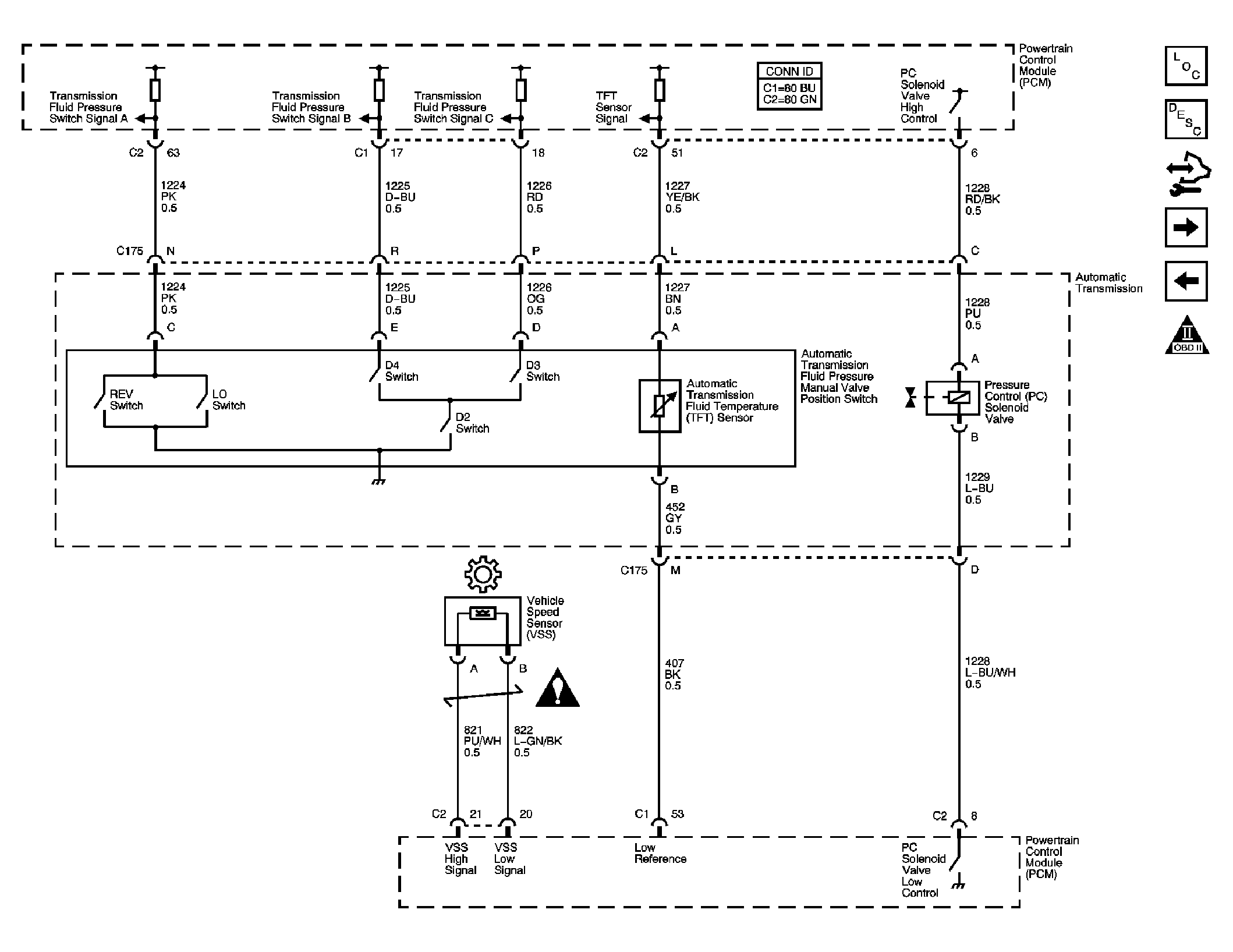

Fig 2: Pressure Controls, Temperature, and VSS Schematic

Courtesy of GENERAL MOTORS CORP.

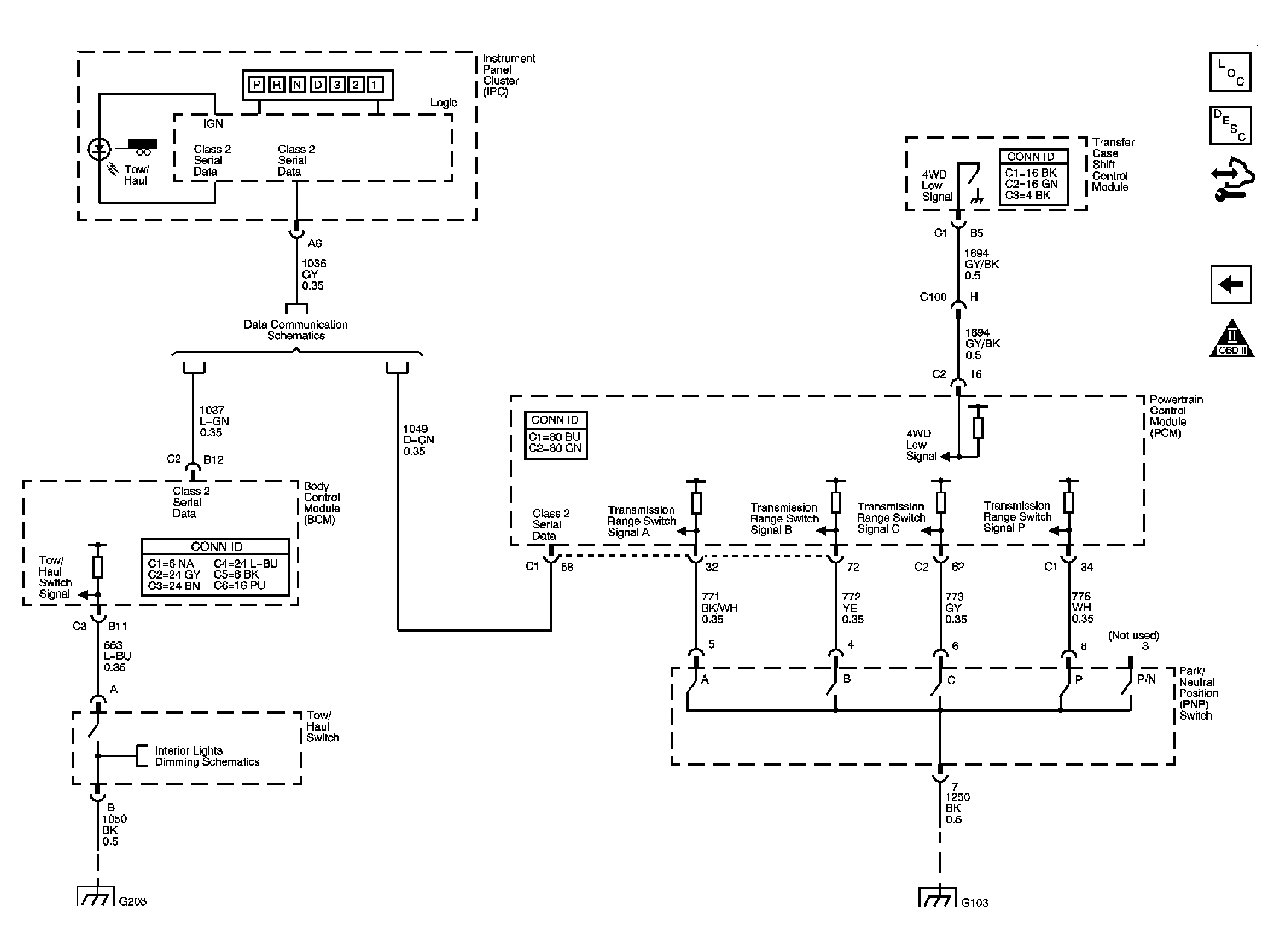

Fig 3: PNP Switch, 4WD Signal, Serial Data, and Indicator Schematic

Courtesy of GENERAL MOTORS CORP.
