Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
    2. Fig 1: Transfer Case Control Switch Module
    GM815899Courtesy of GENERAL MOTORS CORP.
  2. Remove the switch receptacle screws.
    3. Fig 2: Switch Receptacle & Instrument Panel
    GM815900Courtesy of GENERAL MOTORS CORP.
  3. Pull the switch receptacle from the instrument panel and disconnect the electrical connectors from the switch.

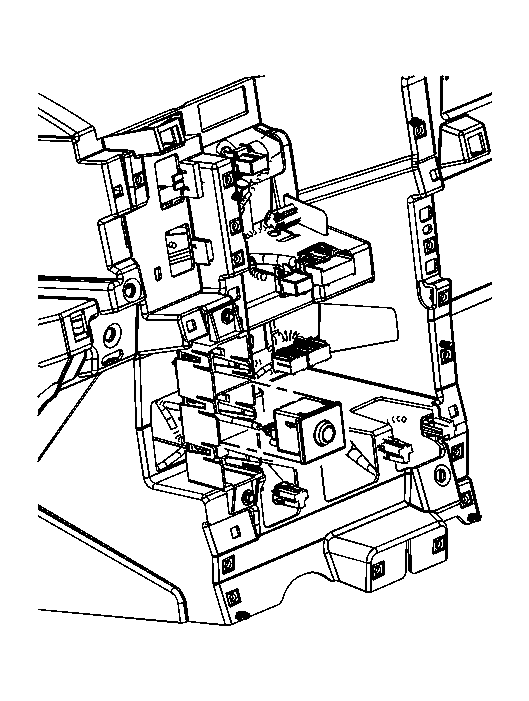

    4. Fig 3: Locating Switch
    GM1527401Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch from the receptacle.
