Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

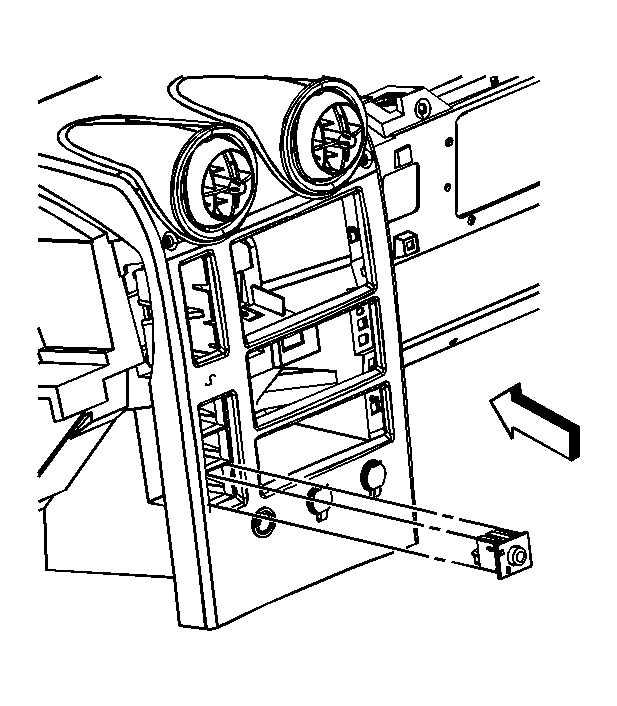

    Fig 1: Electronic Suspension Switch
    GM815943Courtesy of GENERAL MOTORS CORP.
  1. Install the switch to the receptacle.
    2. Fig 2: Locating Switch
    GM1527401Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the switch. Install the switch receptacle to the instrument panel.
    3. Fig 3: Transfer Case Control Switch Module
    GM815899Courtesy of GENERAL MOTORS CORP.
    NOTE: Fastener Notice .
  3. Install the switch receptacle screws.

    Tighten:  Tighten the screws to 12 N.m (106 lb in).

  4. Install the instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .
