Turbine Shaft Seals Installation

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

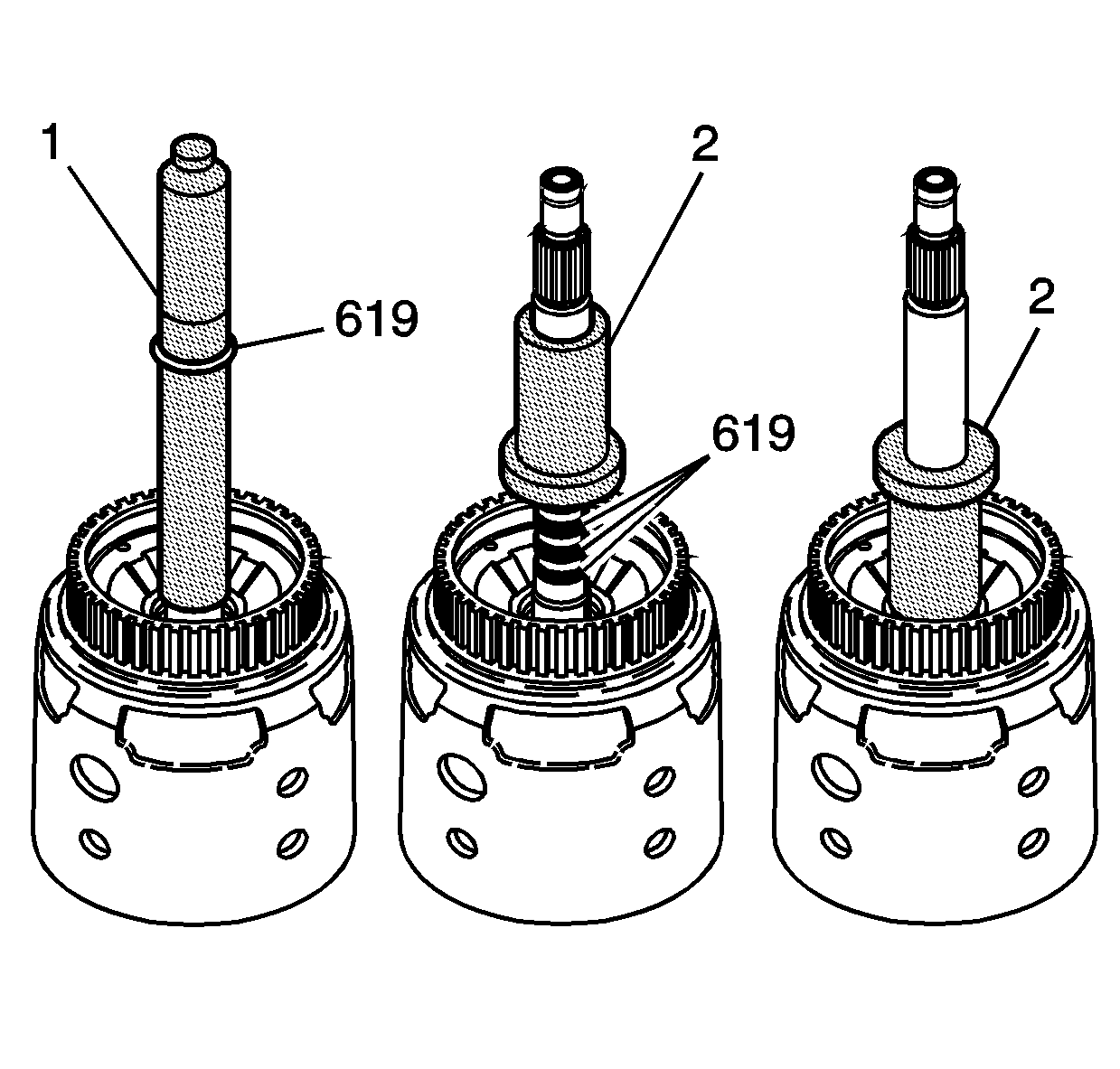

    Fig 1: Turbine Shaft Oil Seal Rings
    GM1601754Courtesy of GENERAL MOTORS CORP.
  1. Use the J 36418-1B  (1) in order to install the four turbine shaft oil seal rings (619). See Special Tools .
  2. Resize oil seal rings (619) after installation:
    1. Place J 36418-2A  (2) over the turbine shaft oil seal rings (619) and seat against input housing. See Special Tools .
    2. Remove J 36418-2A  (2). See Special Tools .
    3. Turn J 36418-2A  (2) upside down and place over the turbine shaft oil seal ring (619). See Special Tools .
    4. Seat against input housing.
    5. Leave J 36418-2A  (2) in place over the turbine shaft oil seal rings (619) until the reverse input clutch housing is installed. See Special Tools .
