Reverse Input Clutch Disassemble

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 23327-1 Forward Clutch Spring Compressor (Bridge). See Special Tools .
J 25018-A Clutch Spring Compressor Adapter. See Special Tools .

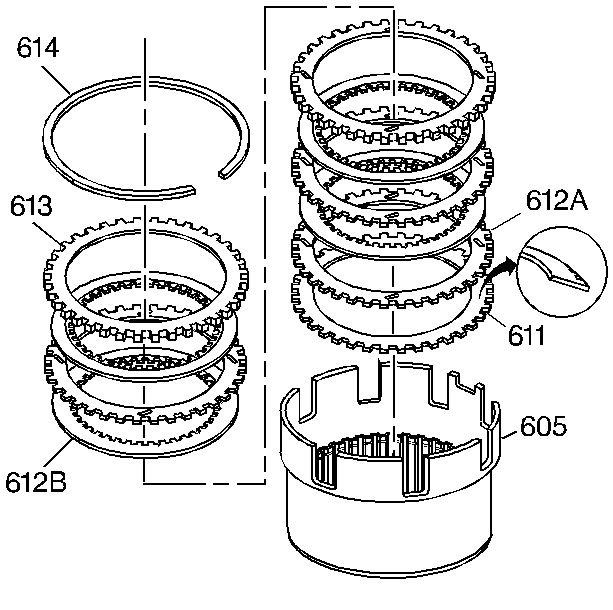

Fig 1: Locating Reverse Input Clutch Plates

Courtesy of GENERAL MOTORS CORP.

Remove the reverse input clutch retaining ring (614).
Remove all reverse input clutch plates (611-613).

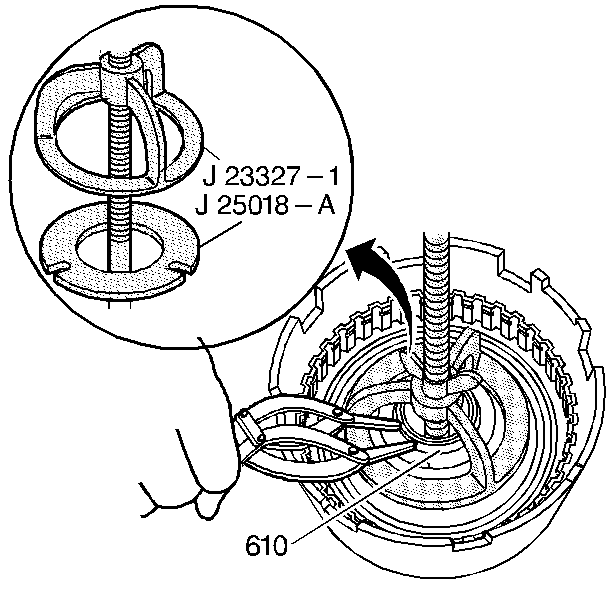

Fig 2: View Of Reverse Input Clutch Spring Retainer Ring

Courtesy of GENERAL MOTORS CORP.

Install the J 23327-1 and the J 25018-A . See Special Tools .
Compress the reverse input clutch spring assembly.
Remove the reverse input clutch spring retainer ring (610).

Fig 3: Identifying Reverse Input Clutch Spring & Piston Assemblies

Courtesy of GENERAL MOTORS CORP.

Remove the reverse input clutch spring assembly (609).
Remove the reverse input clutch piston assembly (607).
