Tools Required

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

J 36850  Transjel Lubricant. See Special Tools .

    Fig 1: View Of Reaction Carrier/Support Thrust Bearing Assembly
    GM190451Courtesy of GENERAL MOTORS CORP.
  1. Install the reaction gear support to case bearing (692) onto the internal reaction gear support (685). Retain the bearing using J 36850  or equivalent. See Special Tools .
  2. Install the internal reaction gear (684) and the internal reaction gear support (685) into the case.
  3. Install the reaction carrier/support thrust bearing assembly (683) into the internal reaction gear support (685). Retain bearing with J 36850  . See Special Tools .

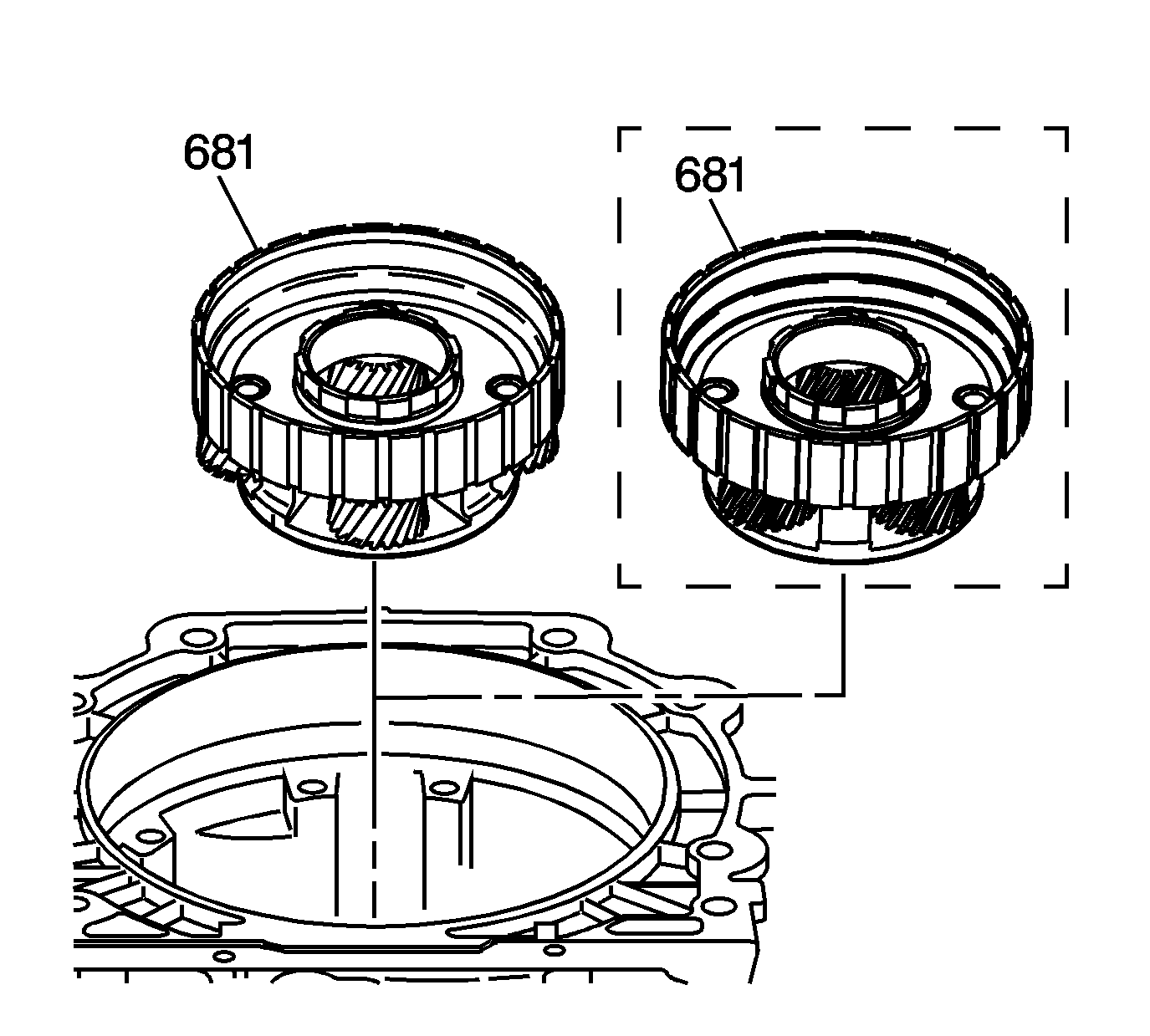

    4. Fig 2: Identifying Reaction Carrier Assembly
    GM190447Courtesy of GENERAL MOTORS CORP.
  4. Install the reaction carrier assembly (681) into the internal reaction gear.
