Tools Required

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

J 29837-A  Output Shaft Support Fixture. See Special Tools .

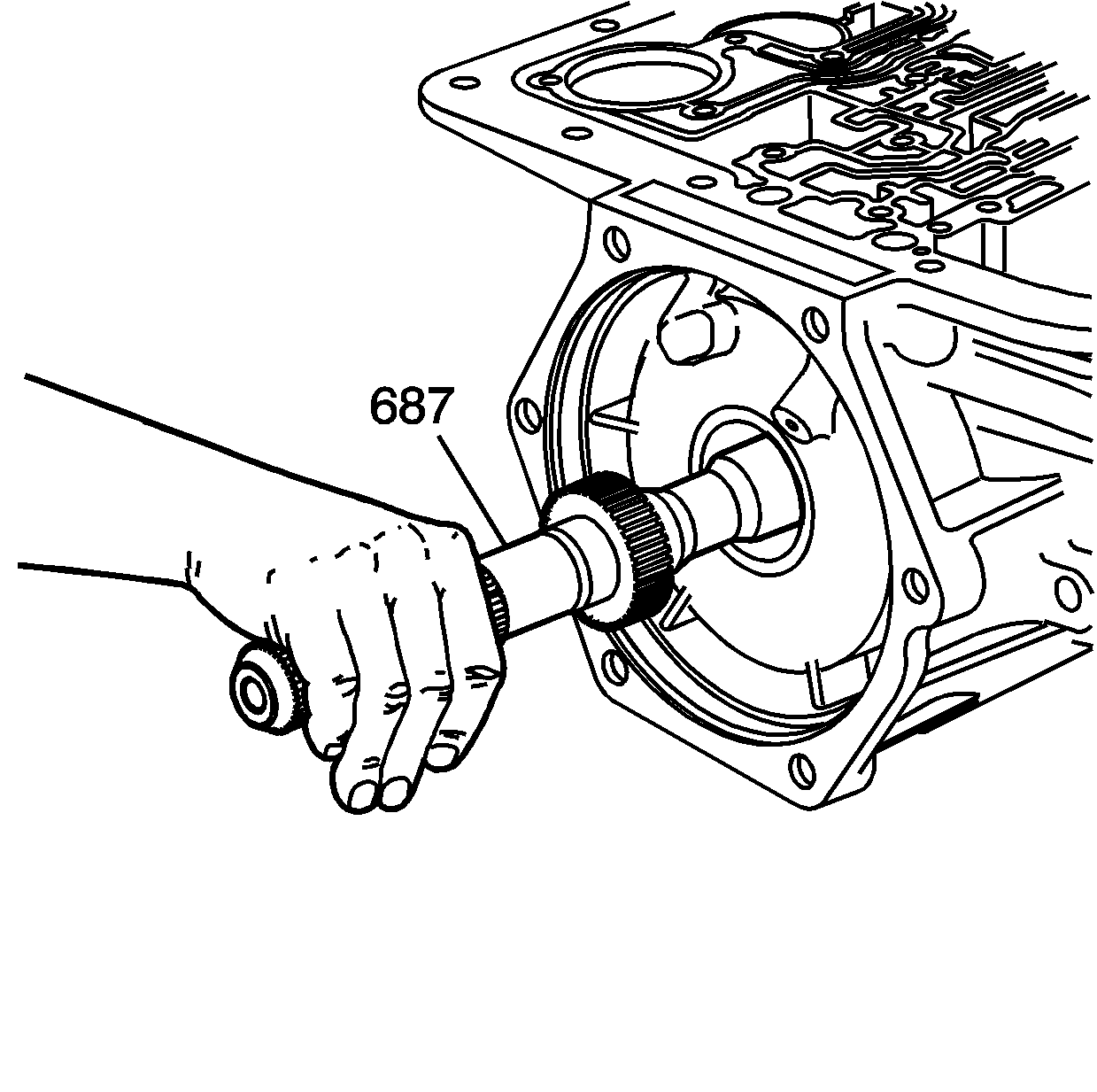

    Fig 1: View Of Output Shaft
    GM588787Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: It is important to note that the input shaft may need a light tap to fully seat into position. If the input shaft is not completely engaged, the output shaft to input carrier retainer (661) will not seat.
  1. Install the output shaft (687).

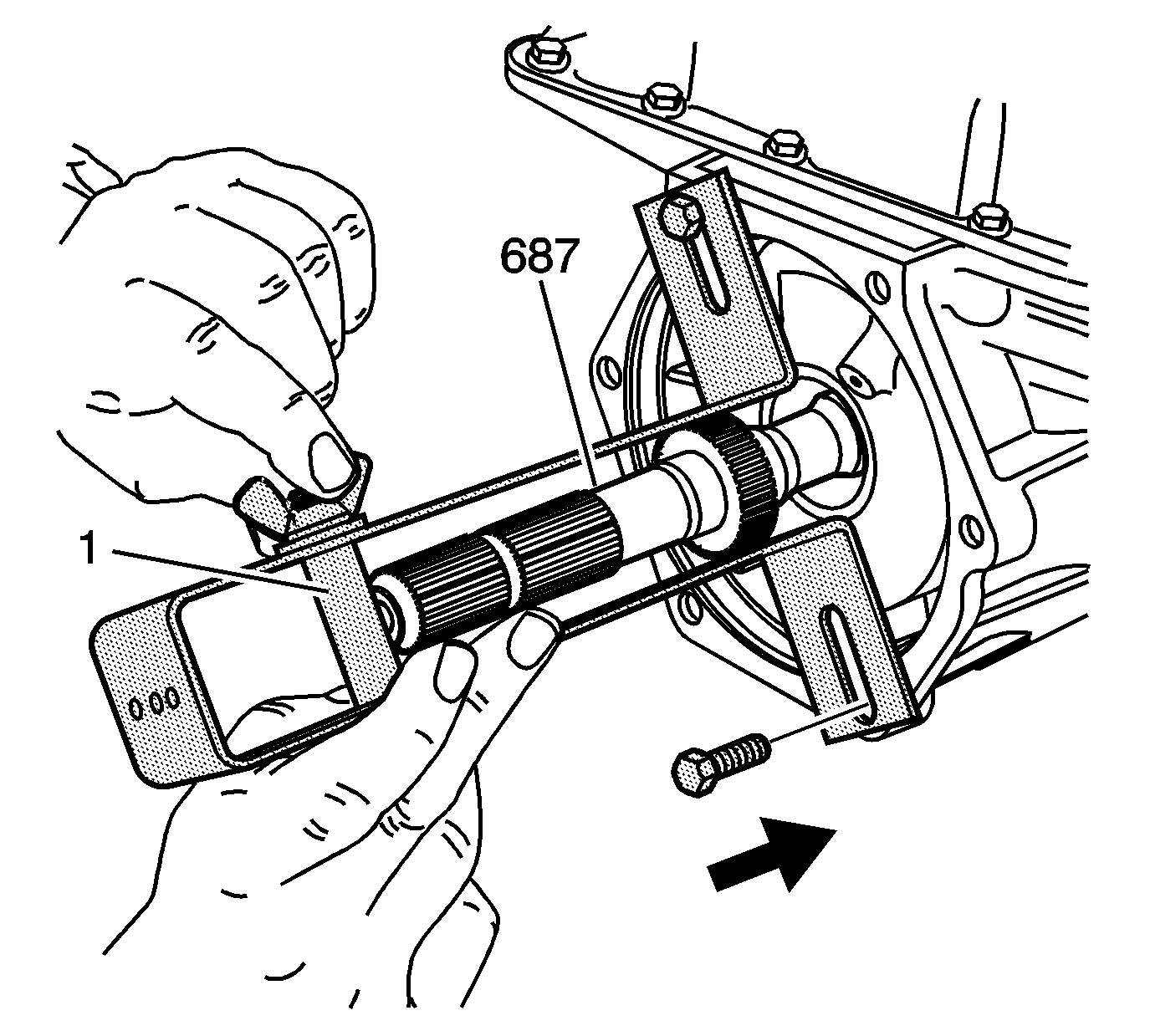

    2. Fig 2: Using J 29837-A To Install Output Shaft
    GM1730029Courtesy of GENERAL MOTORS CORP.
  2. Install the J 29837-A  as shown. See Special Tools . Support the output shaft (687) with adjustable stop (1).
