Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

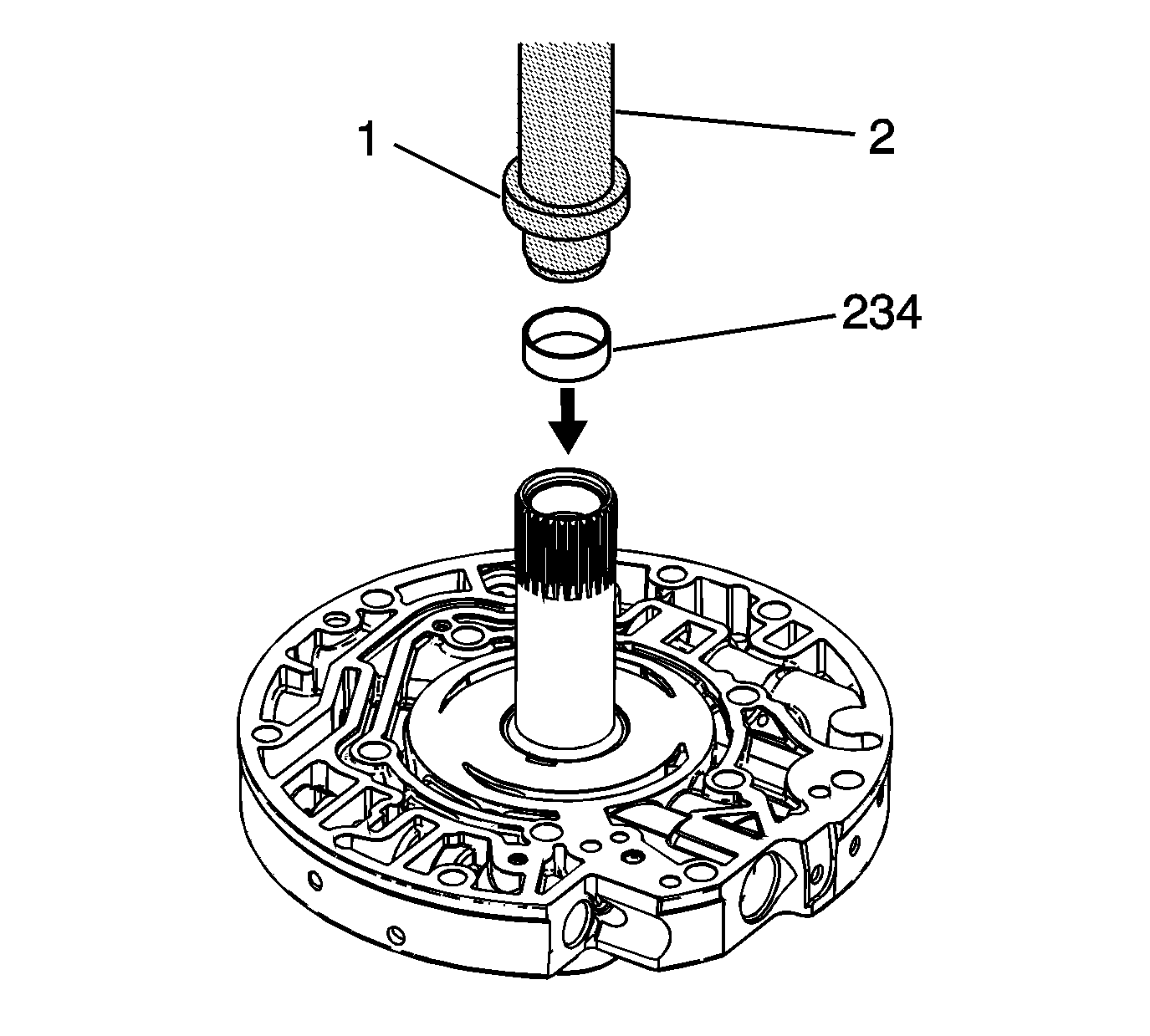

    Fig 1: Stator Shaft Front Bushing
    GM1552960Courtesy of GENERAL MOTORS CORP.
  1. Using the J 21465-2  (1) and the J 8092  (2), install a new stator shaft front bushing (234). See Special Tools .
    2. Fig 2: Stator Shaft Rear Bushing
    GM1552961Courtesy of GENERAL MOTORS CORP.
  2. Using the J 34196-2 (1) which is part of kit J 34196-B  and the J 8092  (2), install the stator shaft rear bushing (241). See Special Tools .
